Data Link Connector: Note

This connector is used both for OBD-II general scan tools and the Subaru Select Monitor.

CAUTION: Do not connect any scan tools other than the OBD-II general scan tools and the Subaru Select Monitor, because the circuit for the Subaru Select Monitor may be damaged.

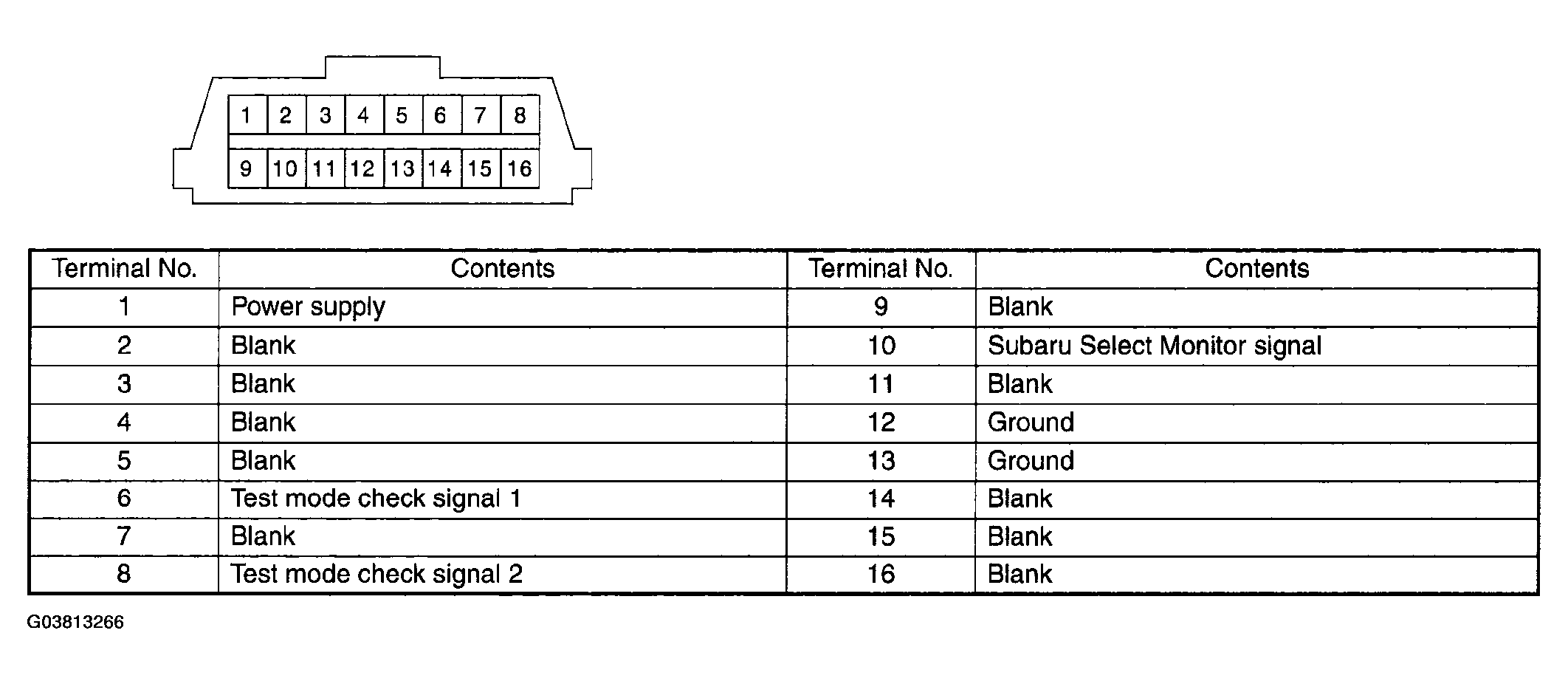

Fig 1: Identifying Data Link Connector Terminal
G03813266Courtesy of SUBARU OF AMERICA, INC.
