Intake Manifold

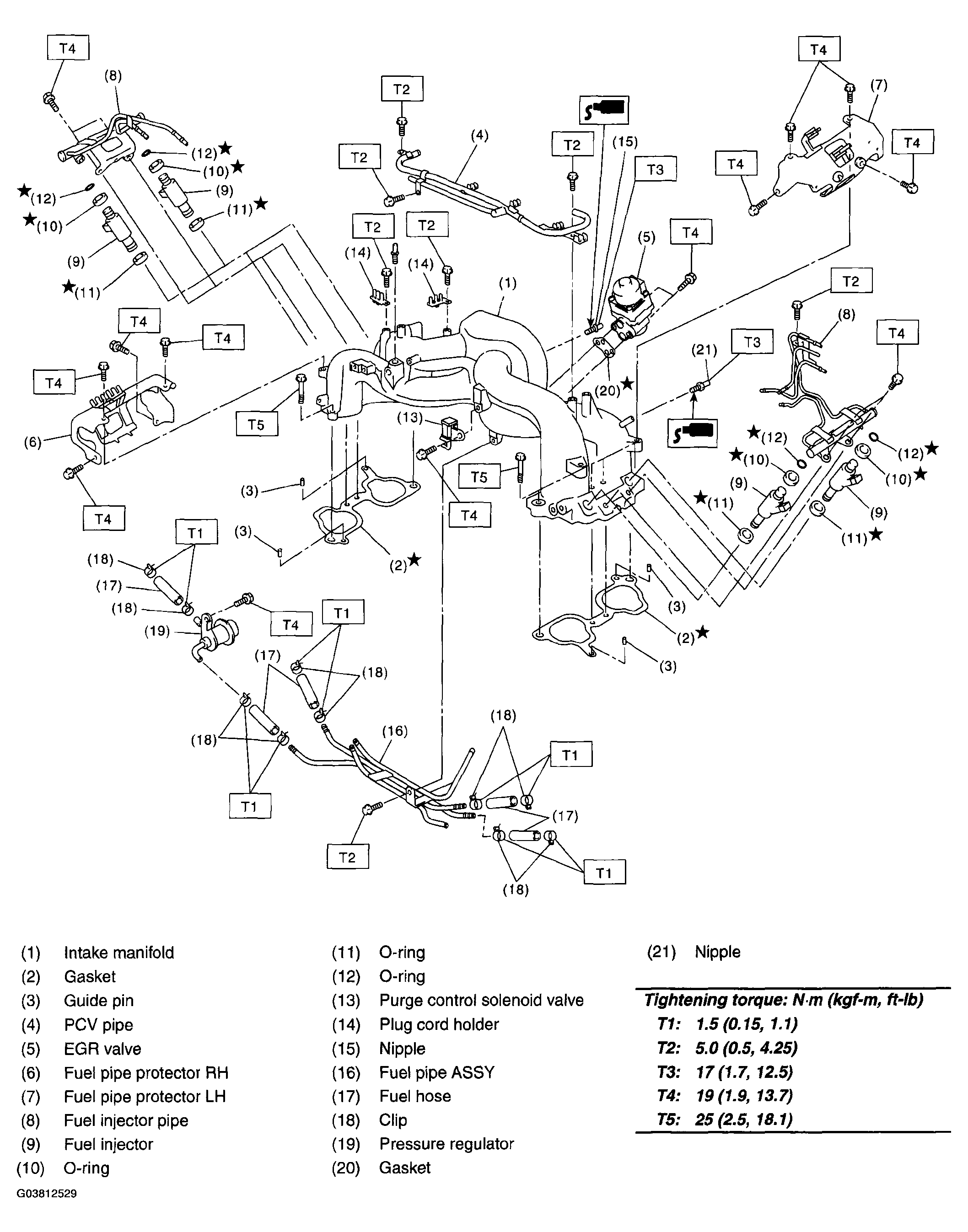

Fig 1: Exploded View Of Intake Manifold With Torque Specifications

G03812529

Courtesy of SUBARU OF AMERICA, INC.
