Fuel Filler Pipe: Disassembly

  1. Move the clamp, and disconnect the evaporation hose from the joint pipe.

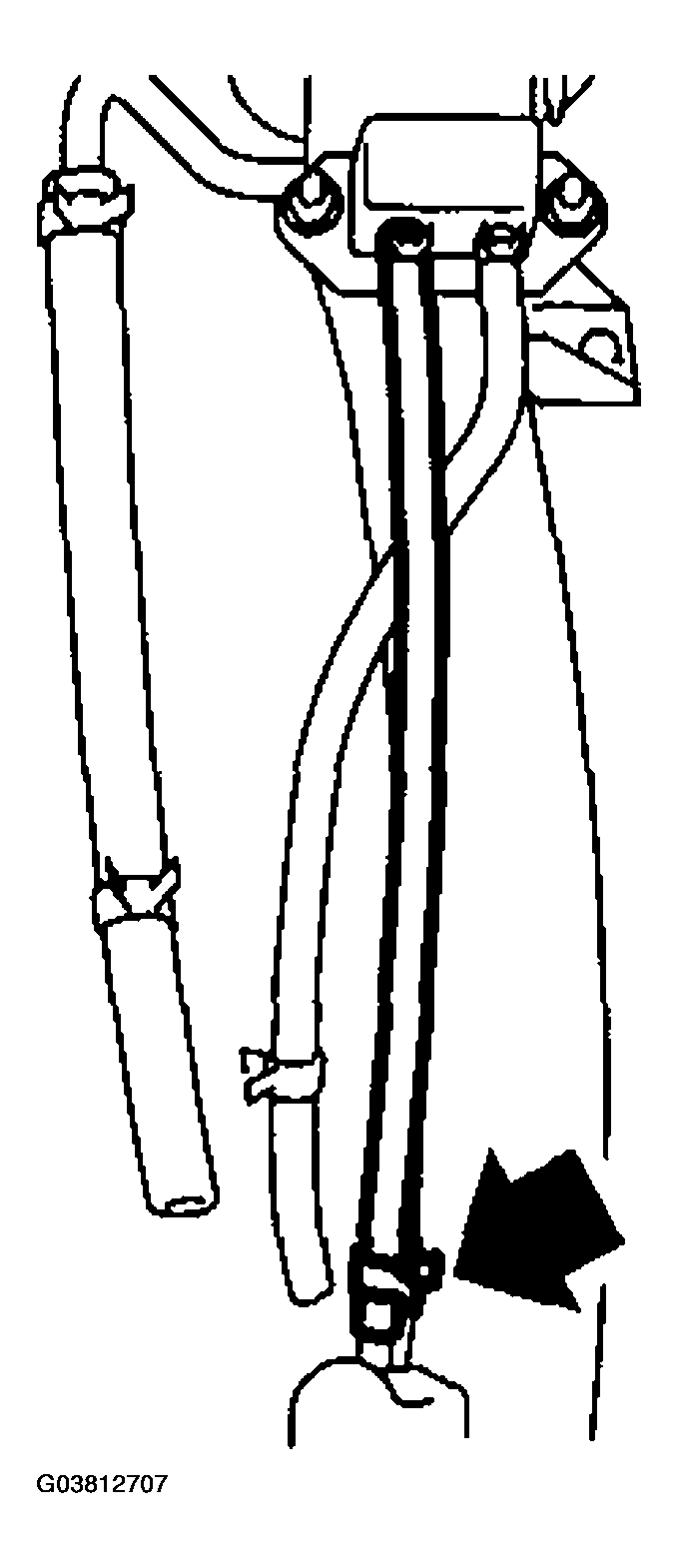

    Fig 1: Locating Clamp For Disconnecting Evaporation Hose From Joint Pipe
    G03812707Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the bolt which installs the joint pipe on the fuel filler pipe.
    Fig 2: Removing Bolt Installing Joint Pipe On Fuel Filler Pipe
    G03812708Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the evaporation hose from the fuel filler pipe.

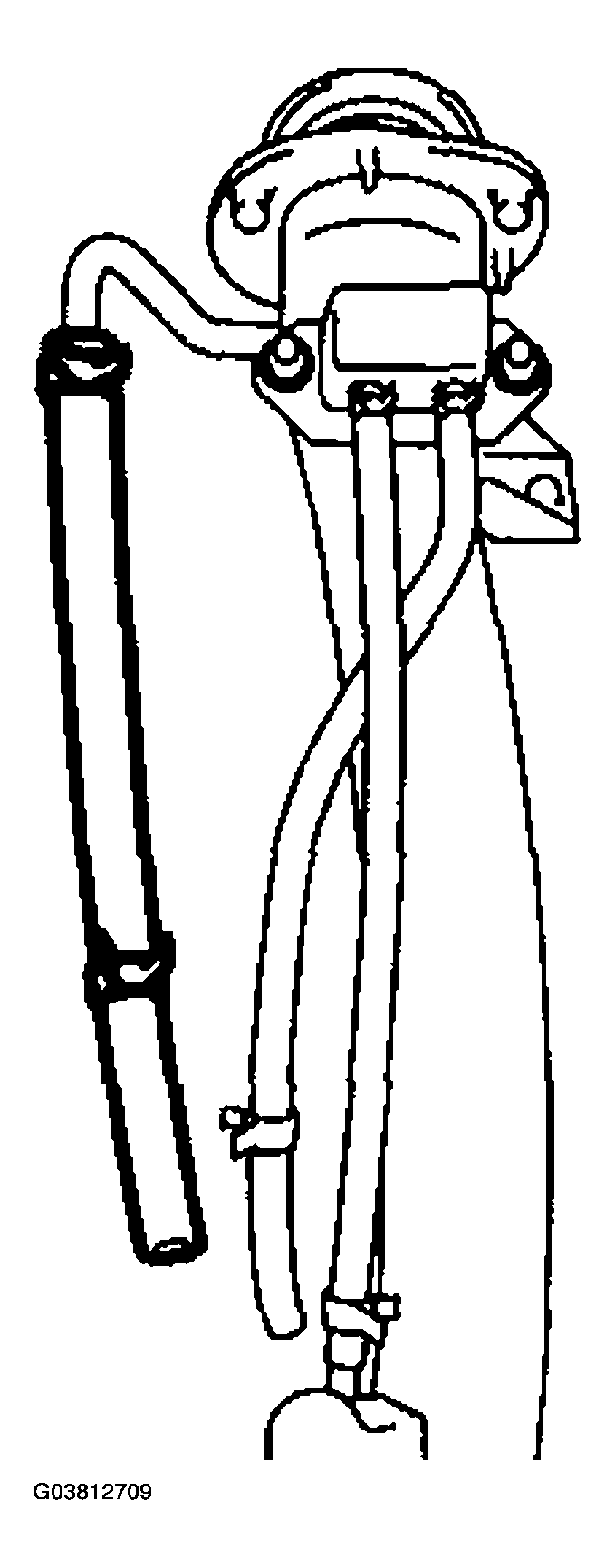

    Fig 3: Disconnecting Evaporation Hose From Fuel Filler Pipe
    G03812709Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the shut valve from the fuel filler pipe. < Ref. to REMOVAL , Shut Valve. >
