Crankshaft Position Sensor: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G03812602Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the generator. < Ref. to REMOVAL , Generator. >
  3. Remove the bolt which installs crankshaft position sensor to cylinder block.

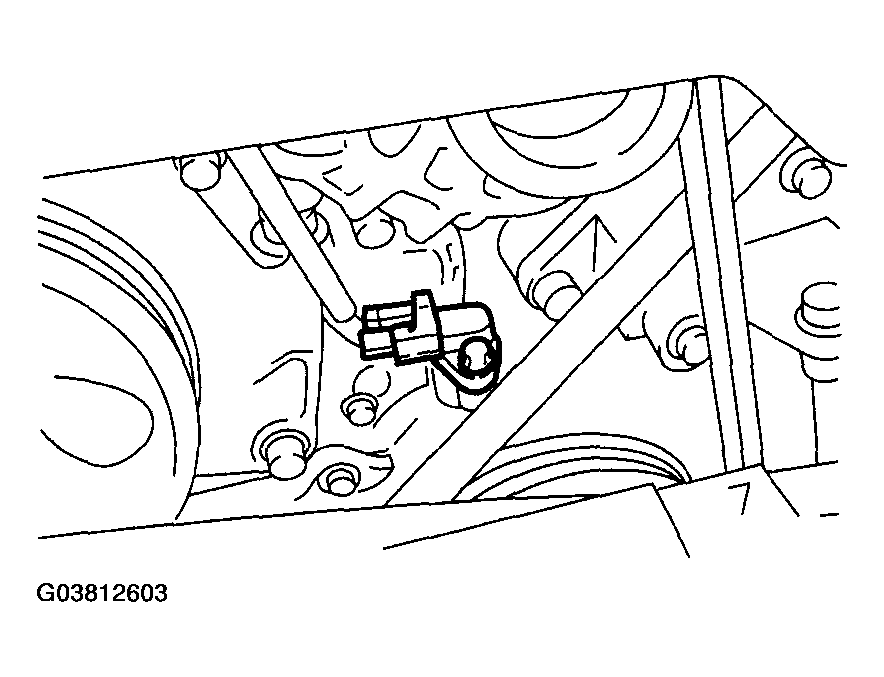

    Fig 2: Removing Crankshaft Position Sensor Installing Bolt
    G03812603Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the crankshaft position sensor, and disconnect the connector from it.

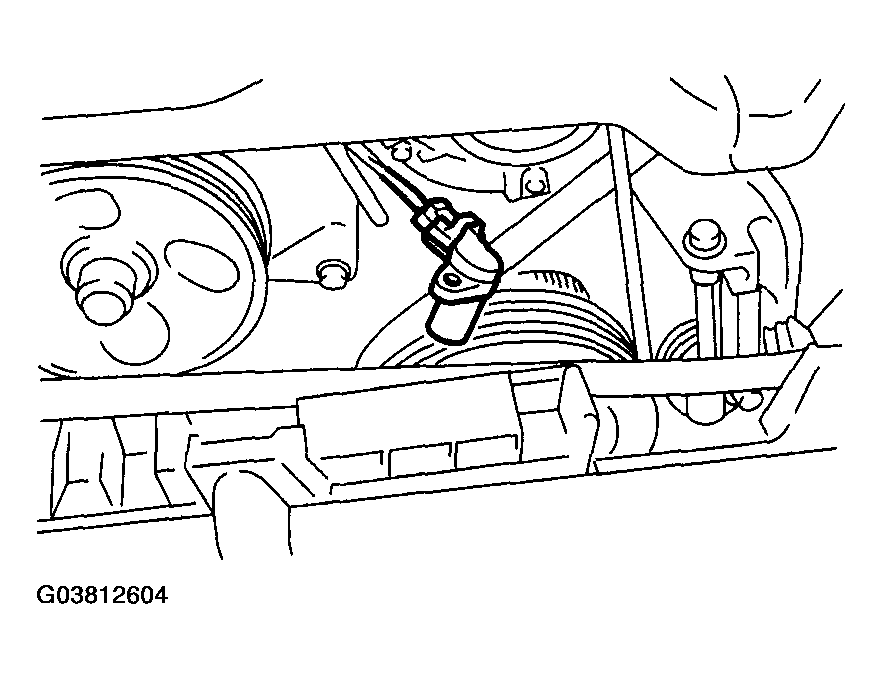

    Fig 3: Removing Crankshaft Position Sensor
    G03812604Courtesy of SUBARU OF AMERICA, INC.
