Starting/Charging Systems: Generator: Removal

Disconnect the ground cable from battery.

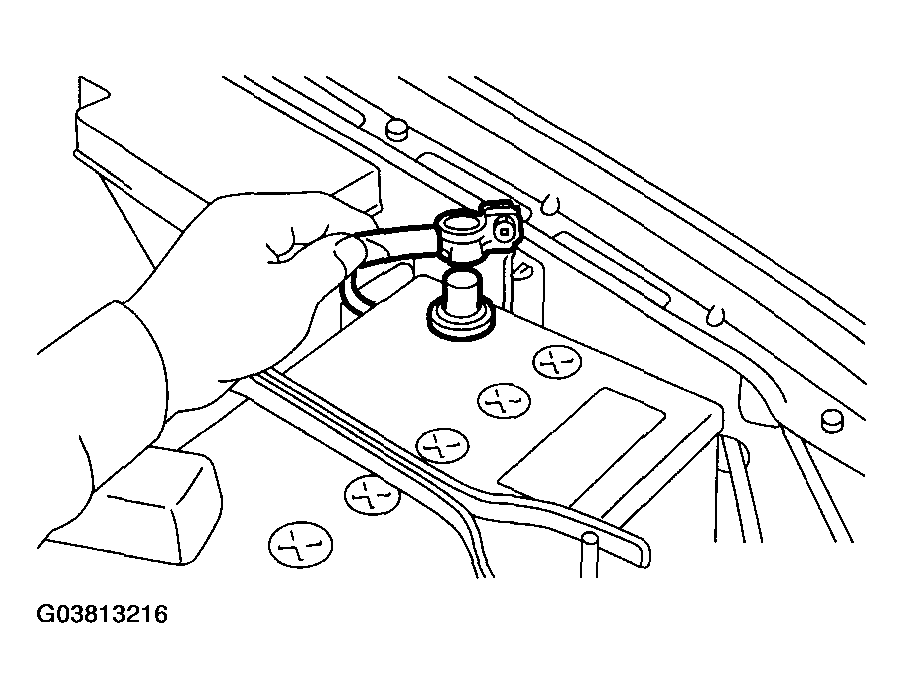

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector and terminal from generator.
- Non-turbo model

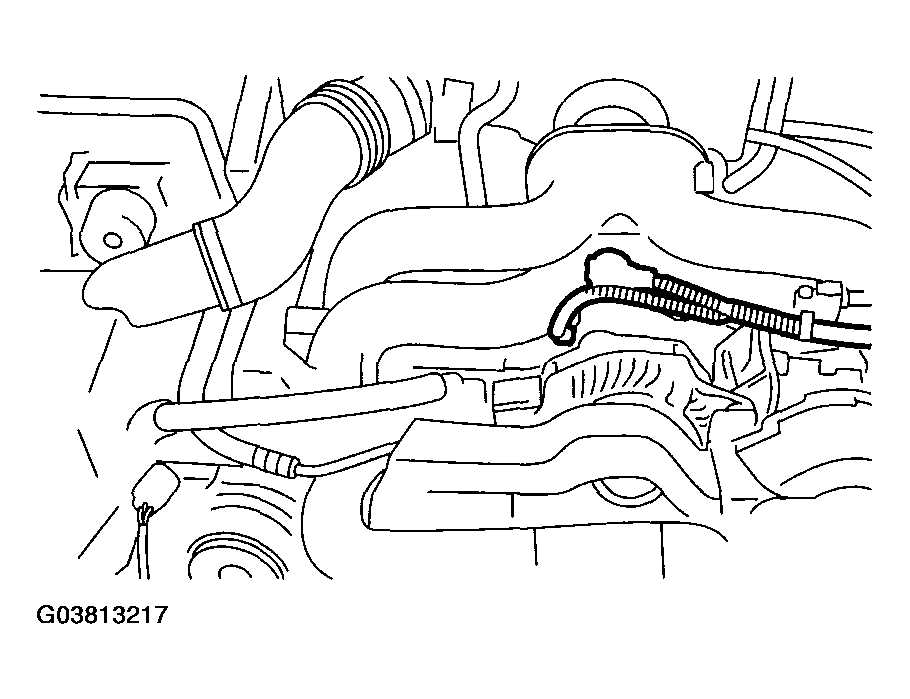

  Fig 2: Disconnecting Connector And Terminal From Generator (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

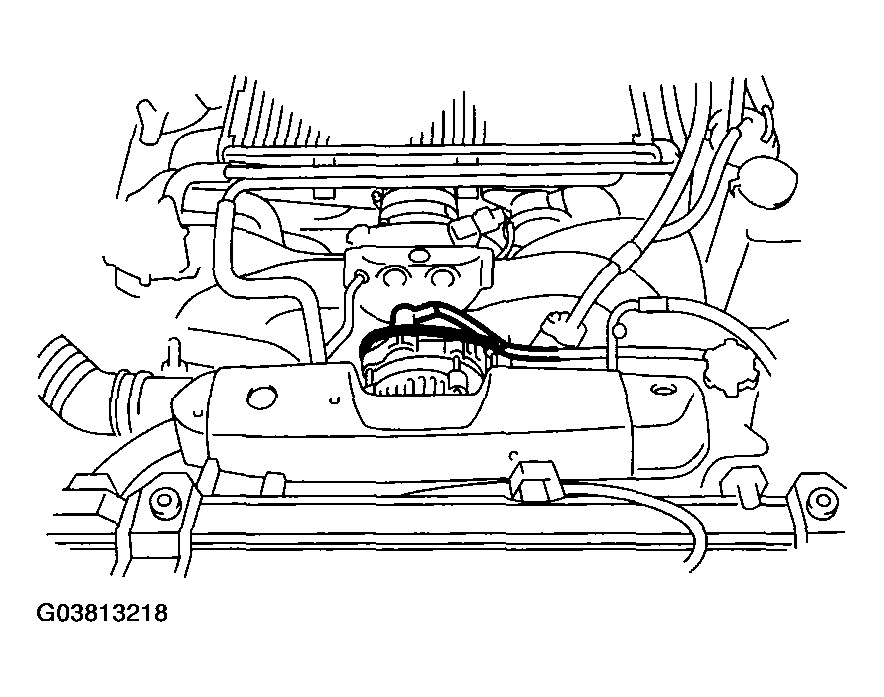

  Fig 3: Disconnecting Connector And Terminal From Generator (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belt cover.
Remove the front side V-belt.
< Ref. to FRONT SIDE BELT , REMOVAL, V-belt. > < Ref. to FRONT SIDE BELT , REMOVAL, V-belt. >
Remove the bolts which install generator onto bracket.

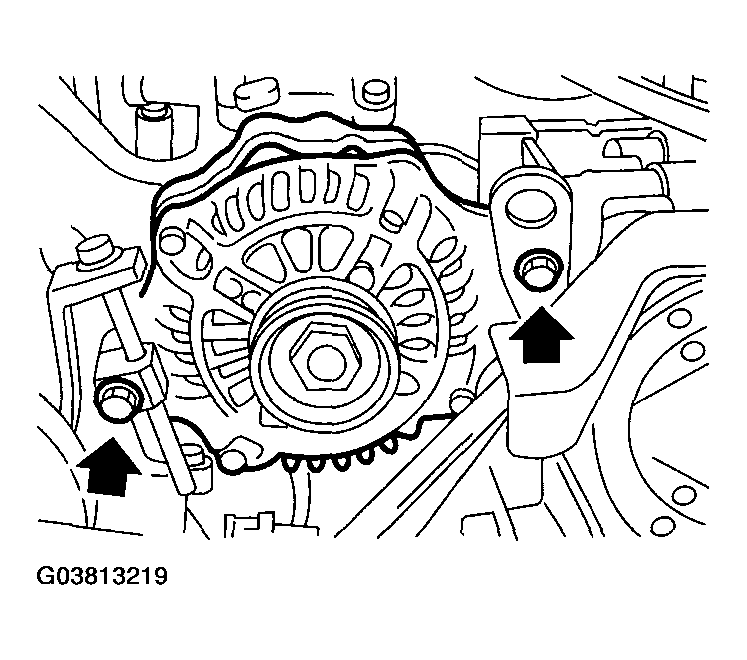

Fig 4: Removing Bolts To Install Generator Onto Bracket
Courtesy of SUBARU OF AMERICA, INC.
