Starting/Charging Systems: Generator: Inspection: Stator

Inspect the stator coil for continuity between each end of the lead wires. If resistance is 1 MΩ or more, the lead wire is broken, and so replace the stator assembly.

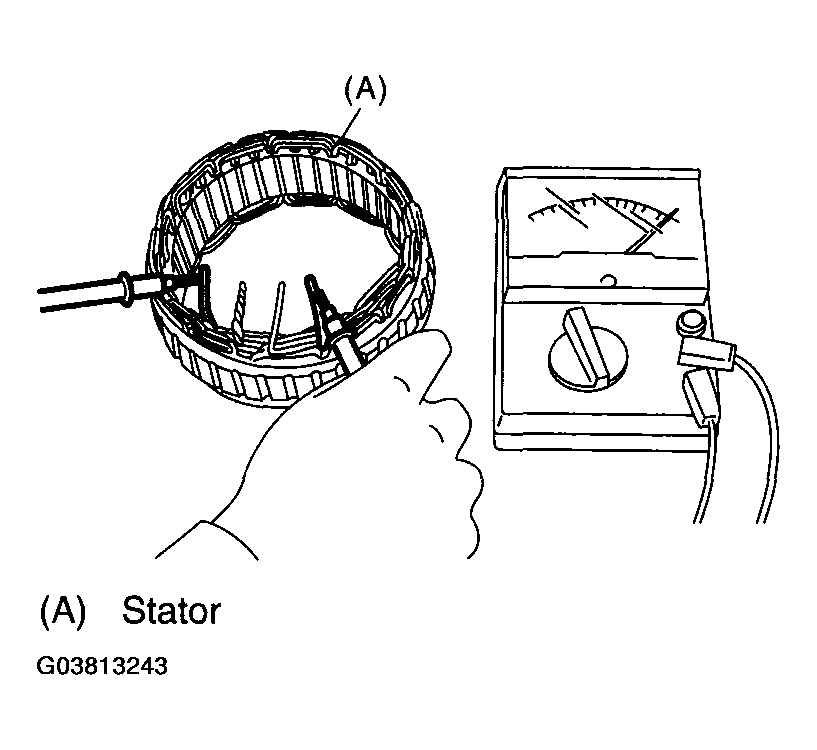

Fig 1: Inspecting Stator Coil For Continuity Between Each End Of Lead Wires

Courtesy of SUBARU OF AMERICA, INC.

Inspect the stator coil for continuity between stator core and each end of lead wire. If resistance is 1 Ω or less, the stator coil is grounded, and so replace the stator assembly.

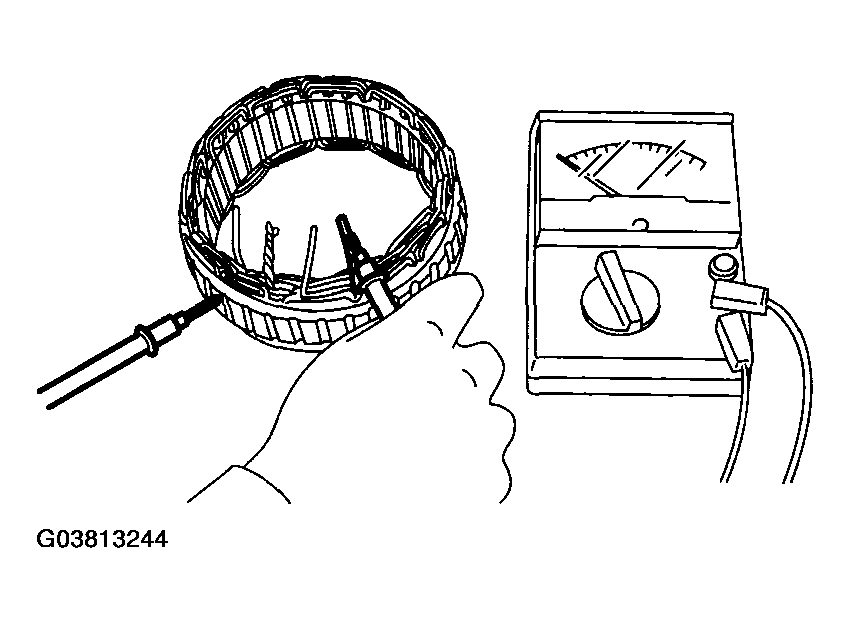

Fig 2: Inspecting Stator Coil For Continuity Between Stator Core And Each End Of Lead Wire

Courtesy of SUBARU OF AMERICA, INC.
