Rear Window Glass: Installation

Install the dam rubber.

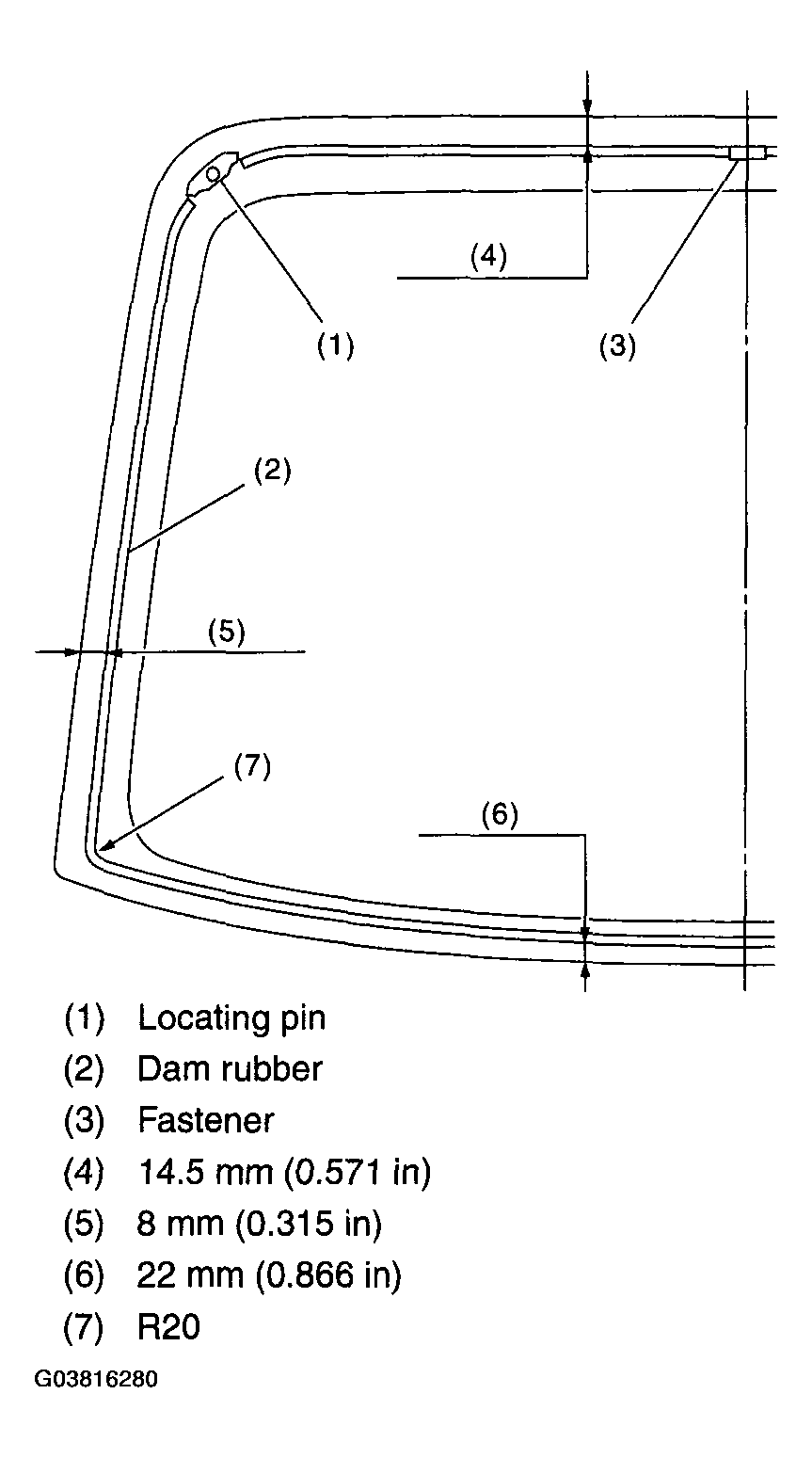

Fig 1: Installing Dam Rubber
Courtesy of SUBARU OF AMERICA, INC.
Install the glass in the same procedure as for windshield glass. < Ref. to INSTALLATION , Windshield Glass. >
Connect the rear defogger terminals.
After completion of all work, allow the vehicle to stand for about 24 hours.
NOTE:
- When the door is opened/closed after glass is bonded, always lower the door glass and then open/close door carefully.
- Move the vehicle slowly.
- For minimum drying time and time the vehicle must be left standing before driving after bonding, follow the instructions or instruction manual from adhesive manufacturer.
After curing of adhesive, pour water on external surface of vehicle to check that there are no water leaks.
NOTE: When a vehicle is returned to user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
