Body Integrated Unit

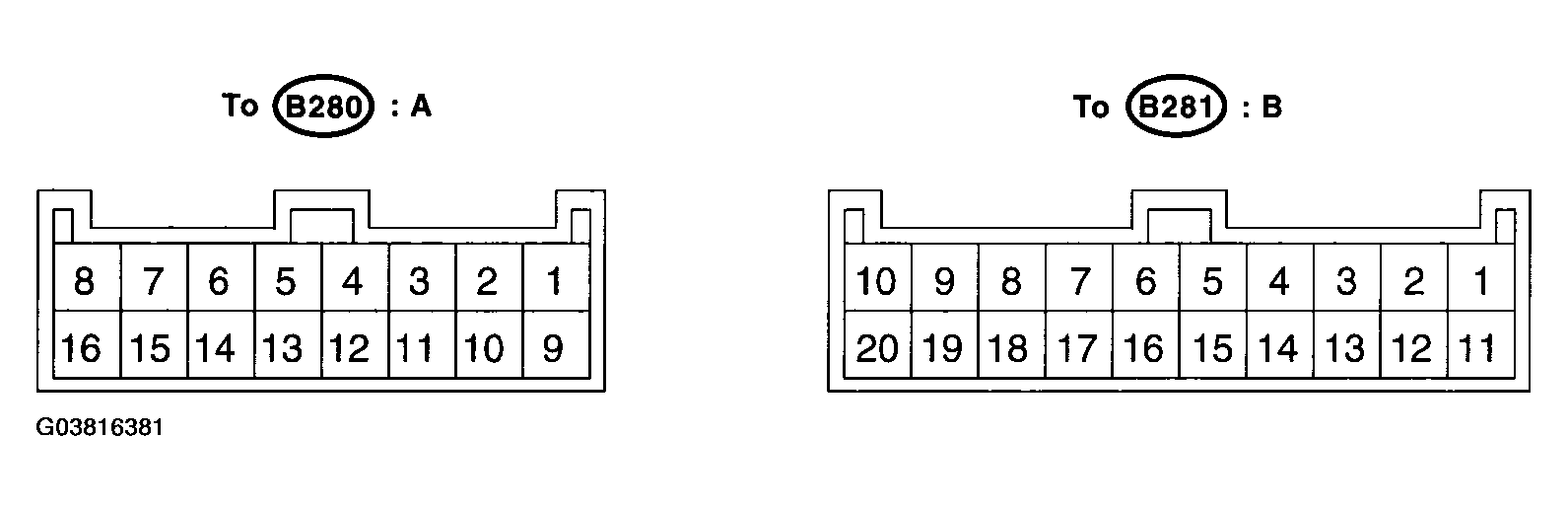

BODY INTEGRATED UNIT
| Content | Terminal No. | Measuring condition |
|---|---|---|
| Door switch (Except driver's door) | B7 (INPUT) | 0 V is present when any door is open (Except driver's door). |
| Door switch (Driver's door) | B8 (INPUT) | 0 V is present when driver's door is open. |
| Door unlock switch | B11 (INPUT) | 0 V is present when operating the door unlock switch. |
| Door lock switch | B12 (INPUT) | 0 V is present when operating the door lock switch. |
| Keyless entry control unit | B13 (INPUT) | Battery voltage is present when pressing the keyless transmitter LOCK/ ARM button. |
| Keyless entry control unit | B14 (INPUT) | Battery voltage is present when pressing the keyless transmitter UNLOCK/DISARM button. |
| Ignition switch (ON) | B19 (INPUT) | Battery voltage is present when ignition switch is turned to ON. |
| Key warning switch | B20 (INPUT) | Battery voltage is present when inserting the key into ignition switch. |
| Power supply | A1 | Battery voltage is constantly present. |
| Power supply | A2 | Battery voltage is constantly present. |
| Ground | A4 | 0 V is constantly present. |
| Room light | A5 (OUTPUT) | 0 V is present when pressing the keyless transmitter UNLOCK/DISARM button. |
| Door and rear gate lock actuator | A6 (OUTPUT) | Battery voltage is present when pressing the keyless transmitter LOCK/ ARM button. |
| Door and rear gate lock actuator (Except driver side) | A7 (OUTPUT) | Battery voltage is present when pressing the keyless transmitter UNLOCK/DISARM button two times. |
| Door lock actuator (Driver side) | A8 (OUTPUT) | Battery voltage is present when pressing the keyless transmitter UNLOCK/DISARM button one time. |
| Ground | A13 | 0 V is constantly present. |
