Trunk Lid

  1. Remove the trunk lid release handle. < Ref. to TRUNK LID RELEASE HANDLE . >
  2. Remove the rod clamp. Remove the lock plate. Replace the key cylinder.

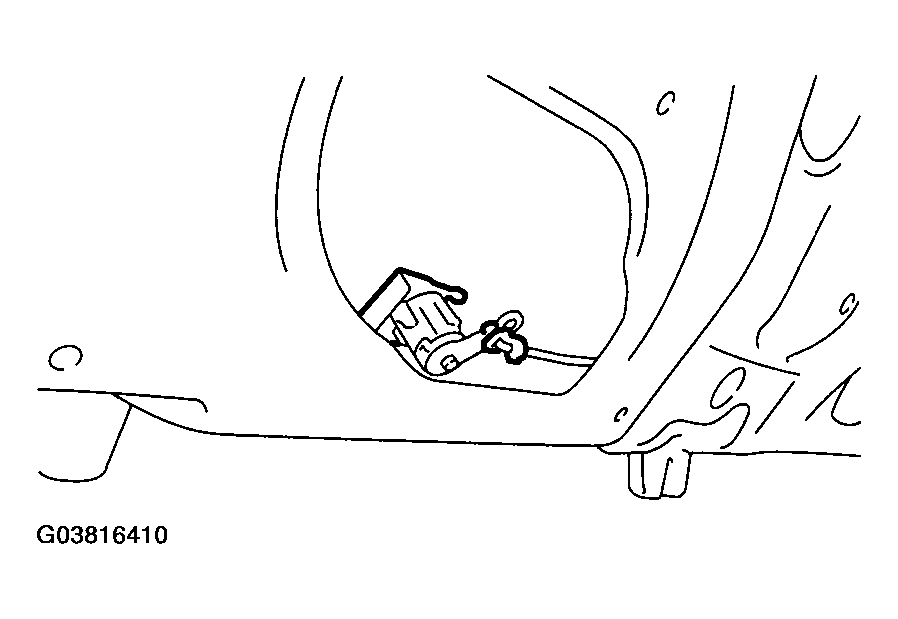

    Fig 1: Removing Rod Clamp
    G03816410Courtesy of SUBARU OF AMERICA, INC.
