Interrupt Relay: Inspection

Measure the interrupt relay resistance between terminals (indicated in STANDARD TERMINAL NO SPECIFICATION ) when connecting terminal No. 4 to battery positive terminal and terminal No. 1 to battery ground terminal.

STANDARD TERMINAL NO SPECIFICATION

Current	Terminal No.	Standard
Flow	2 and 6	Less than 1
No flow	2 and 6	More than 1 M

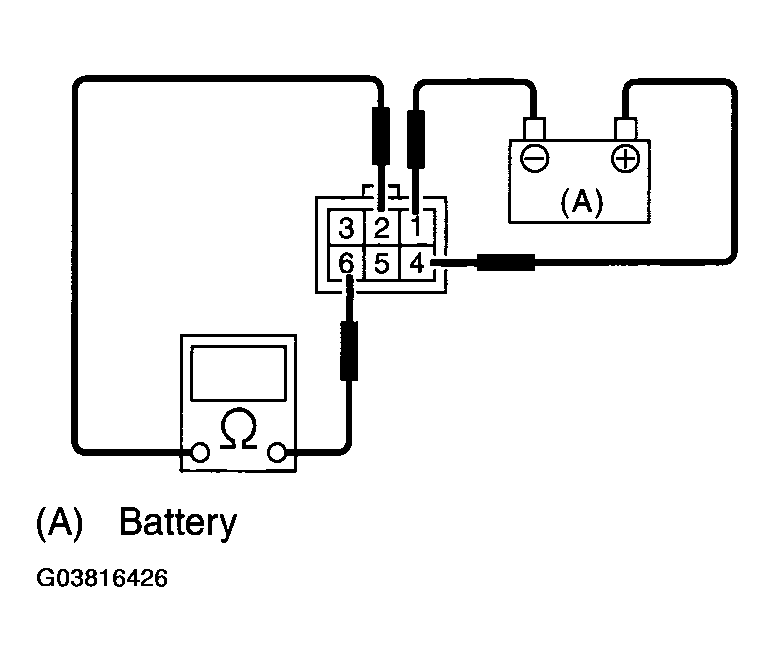

Fig 1: Measuring Interrupt Relay Resistance Between Terminals

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the interrupt relay.
