Immobilizer Control Unit: Removal
NOTE:
- Prepare the security ID plate.
- Prepare all registered immobilizer keys for the model with immobilizer.
- Make a registration of immobilizer for the model with immobilizer. For detailed operation procedure, refer to "IMMOBILIZER REGISTRATION MANUAL".
- If replacing the immobilizer control unit, check the current setting and note it. < Ref. to OPERATION , Subaru Select Monitor. >
- Disconnect the ground cable from battery.
- Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Assembly. >

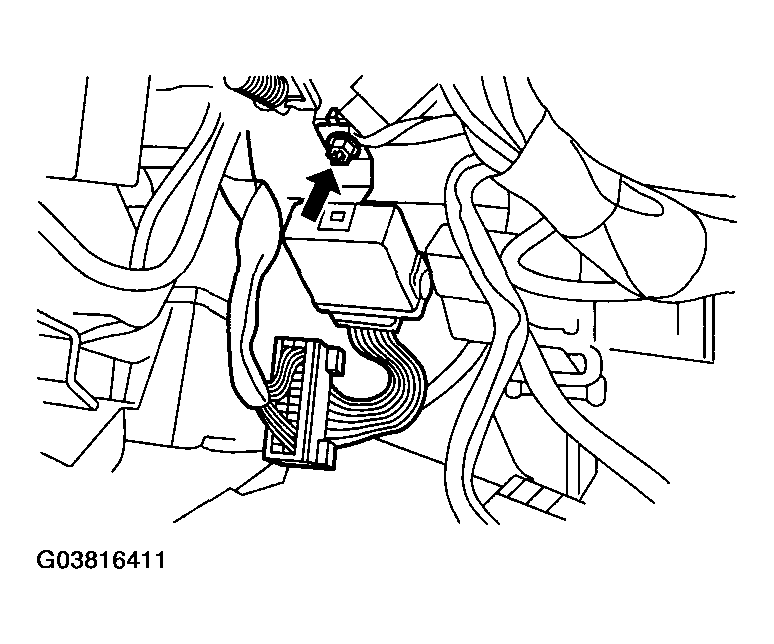

- Disconnect the connector from immobilizer control unit.
- Remove the immobilizer control unit.
