Trunk Lid And Rear Gate Lock

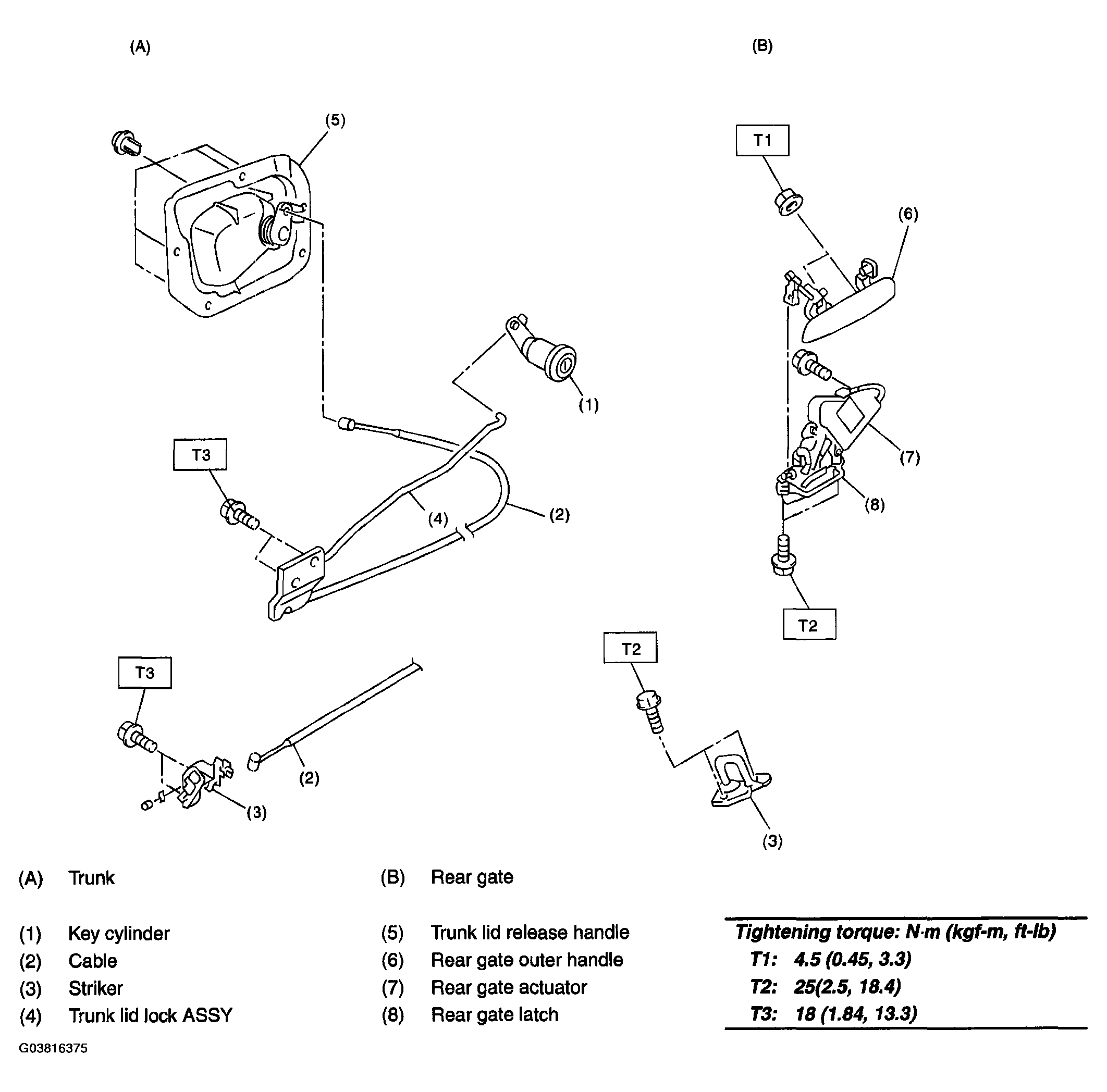

Fig 1: Identifying Trunk Lid And Rear Gate Lock Component
G03816375Courtesy of SUBARU OF AMERICA, INC.
