Security Control Unit: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  3. Disconnect the connector from the security control unit.
  4. Remove the security control unit.

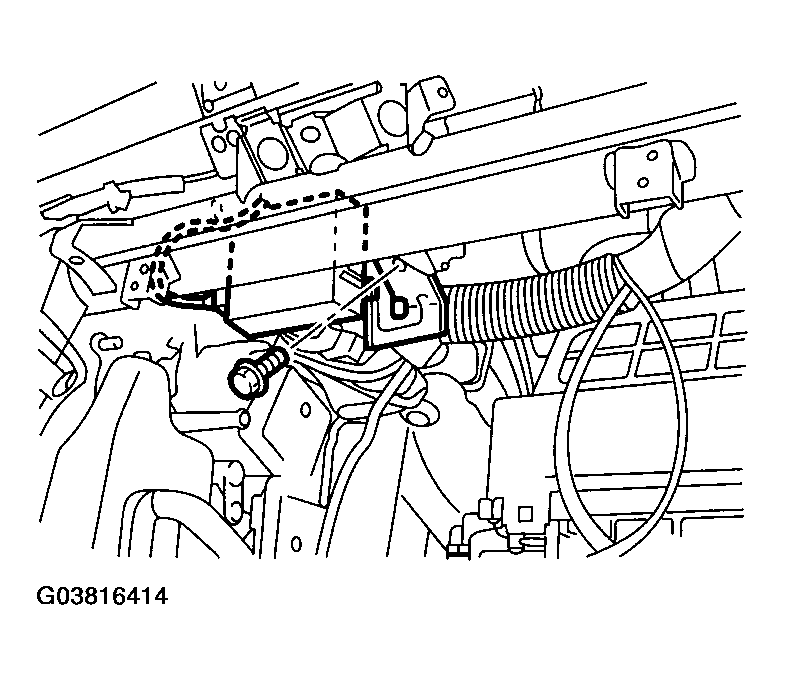

    Fig 1: Removing Security Control Unit
    G03816414Courtesy of SUBARU OF AMERICA, INC.
