Home >> Subaru >> 2005 >> Impreza Outback Sport, Standard >> Repair and Diagnosis (Single Page) >> Body & Frame >> Door Locks >> Security And Locks >> Keyless Entry Control Unit >> Removal

Keyless Entry Control Unit: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Assembly. >
  3. Remove the nut, and then remove the keyless entry control unit while disconnecting connector.

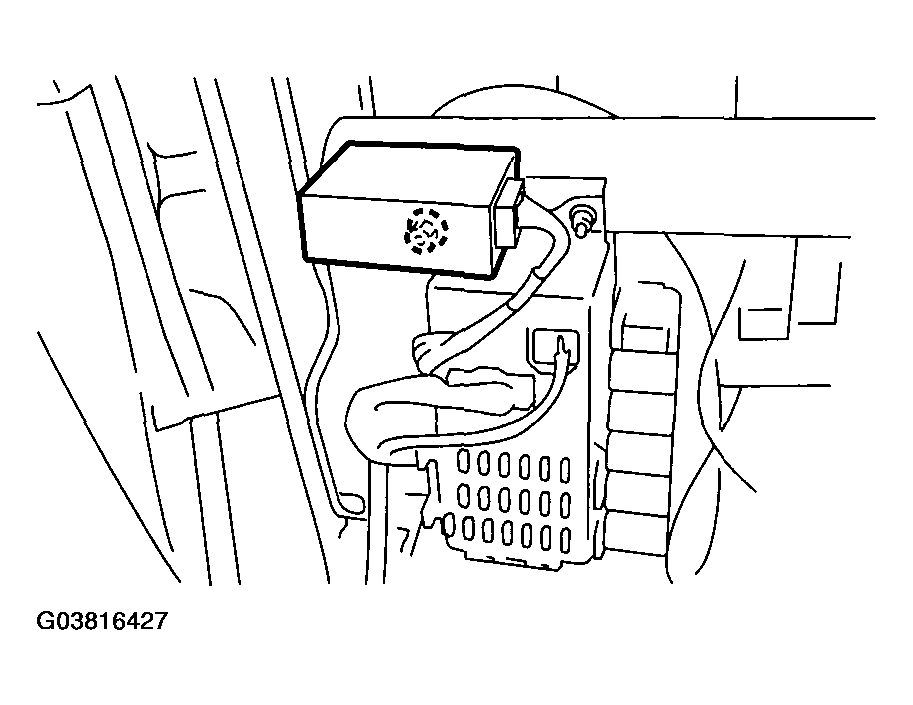

    Fig 1: Removing Keyless Entry Control Unit
    G03816427Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the keyless entry control unit and other electrical control module.
