MT Gear Shift Lever: Assembly: 6MT

NOTE:
  • Clean all parts before assembly.
  • Apply NIGTIGHT LYW No.2 grease or equivalent to each parts.
  1. Mount the bushing and cushion rubber on the stay.
    Fig 1: Mounting Bushing And Cushion Rubber On Stay
    G03813597Courtesy of SUBARU OF AMERICA, INC.
  2. Install the bushing and spacer to boss.
    Fig 2: Installing Bushing And Spacer To Boss
    G03813598Courtesy of SUBARU OF AMERICA, INC.
  3. Install the snap ring to gear shift lever, and then install the bushing.
    NOTE: Apply grease to the bushing.
    Fig 3: Applying Grease To Bushing
    G03813599Courtesy of SUBARU OF AMERICA, INC.
  4. Apply grease to the bushing and O-ring, and then install to the gear shift lever.
    Fig 4: Installing Bushing And O-Ring
    G03813600Courtesy of SUBARU OF AMERICA, INC.
  5. Apply sufficient grease into the boss, and then install the gear shift lever to stay.
    Fig 5: Installing Gear Shift Lever To Stay
    G03813601Courtesy of SUBARU OF AMERICA, INC.
  6. Install the washer and snap ring.
    Fig 6: Installing Washer And Snap Ring
    G03813602Courtesy of SUBARU OF AMERICA, INC.
  7. Insert the gear shift lever and rod into boot hole.
  8. Install the rod.

    Tightening torque:

    11.8 N.m (1.2 kgf-m, 8.7 ft-lb)

    Fig 7: Inserting Gear Shift Lever And Rod Into Boot Hole
    G03813603Courtesy of SUBARU OF AMERICA, INC.
  9. Install the boss to rod.

    Tightening torque:

    11.8 N.m (1.2 kgf-m, 8.7 ft-lb)

    Fig 8: Installing Boss To Rod
    G03813604Courtesy of SUBARU OF AMERICA, INC.
  10. Install a new lock wire.
    Fig 9: Installing Lock Wire
    G03813605Courtesy of SUBARU OF AMERICA, INC.
    NOTE:
    • Install the lock wire to the stay groove.
    • Bend the extra wire to same direction of lock wire winding.

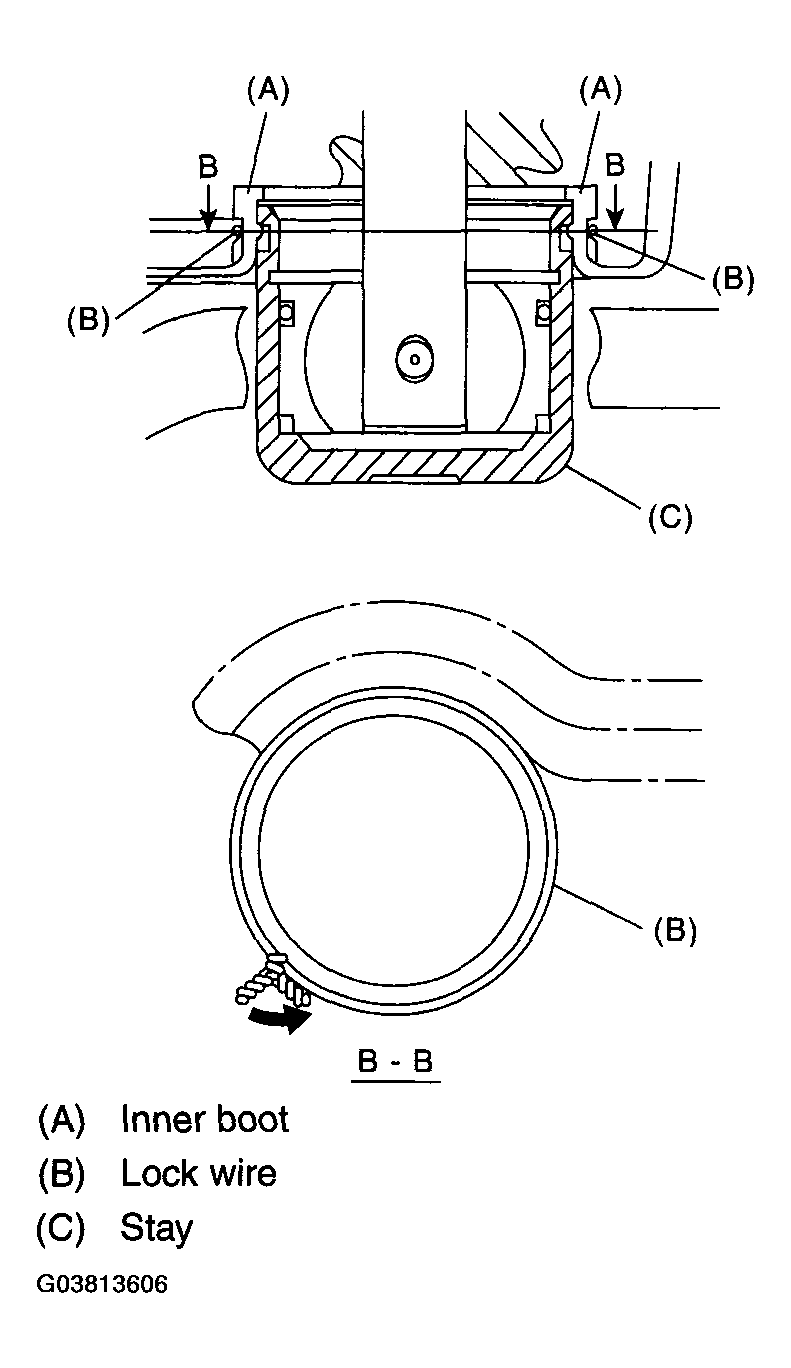

    Fig 10: Installing Lock Wire To Stay Groove
    G03813606Courtesy of SUBARU OF AMERICA, INC.
  11. Install the holder.

    Tightening torque:

    1.3 N.m (0.13 kgf-m, 0.96 ft-lb)

    Fig 11: Installing Holder
    G03813607Courtesy of SUBARU OF AMERICA, INC.
  12. Insert the reverse check cable into boot hole.
  13. Insert the reverse check cable into gear shift assembly, and fix with band clip.
    NOTE:
    • Cut off the extra band clip.
    • Make sure that the reverse check cable is inserted into gear shift lever assembly without any clearance.
    Fig 12: Inserting Reverse Check Cable Into Boot Hole
    G03813608Courtesy of SUBARU OF AMERICA, INC.
  14. Install the seat cushion and spring.
    Fig 13: Installing Seat Cushion And Spring
    G03813609Courtesy of SUBARU OF AMERICA, INC.
  15. Adjust the length between end of cable plate and reverse check cable to 84 mm (3.31 in), and then tighten the lock nut.

    Tightening torque: 6 N.m (0.6 kgf-m, 4.4 ft-lb)

    Fig 14: Adjusting Length Between End Of Cable Plate And Reverse Check Cable
    G03813610Courtesy of SUBARU OF AMERICA, INC.
  16. Fix the slider and reverse check cable end with spring pin.
    NOTE: Apply grease to the sliding part of slider.
    Fig 15: Installing Slider And Reverse Check Cable End With Spring Pin
    G03813611Courtesy of SUBARU OF AMERICA, INC.
  17. Fix the reverse check cable to clip of stay.
    NOTE: Install the reverse check cable to upper side of stay.
    Fig 16: Installing Reverse Check Cable To Upper Side Of Stay
    G03813612Courtesy of SUBARU OF AMERICA, INC.
