MT Gear Shift Lever: Assembly: 5MT

Clean all parts before assembly.
Mount the bushing and cushion rubber on the stay.

Fig 1: Mounting Bushing And Cushion Rubber On Stay
Courtesy of SUBARU OF AMERICA, INC.
Mount each part; boot, O-ring, bushing A, spacer, bushing B, bushing and spring pin on the gear shift lever.
NOTE:
- Always use new O-rings.
- Apply grease [SUNLIGHT 2 (Part No. 003602010 or equivalent] to the inner and side surfaces of the bushing when installing the spacer.

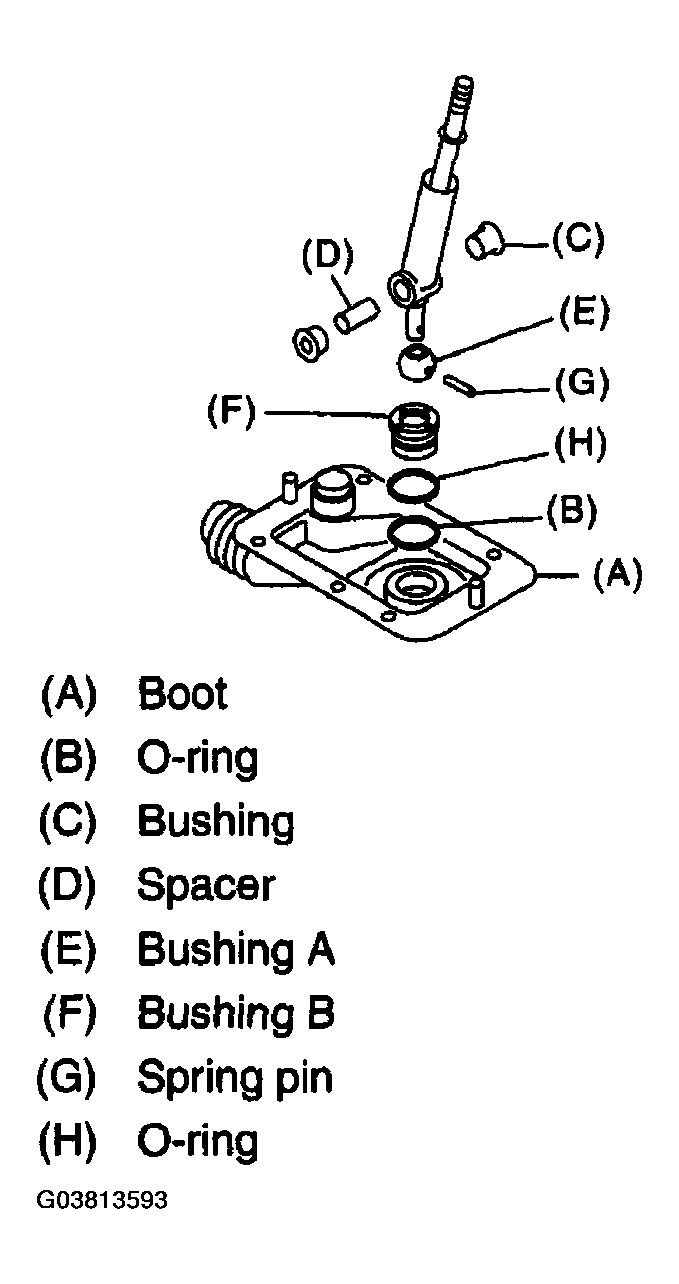

Fig 2: Installing Boot, O-Ring, Bushing A, Spacer, Bushing B, Bushing And Spring Pin On Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Insert the gear shift lever into the boot hole.
Install the snap ring and stay to bushing B.

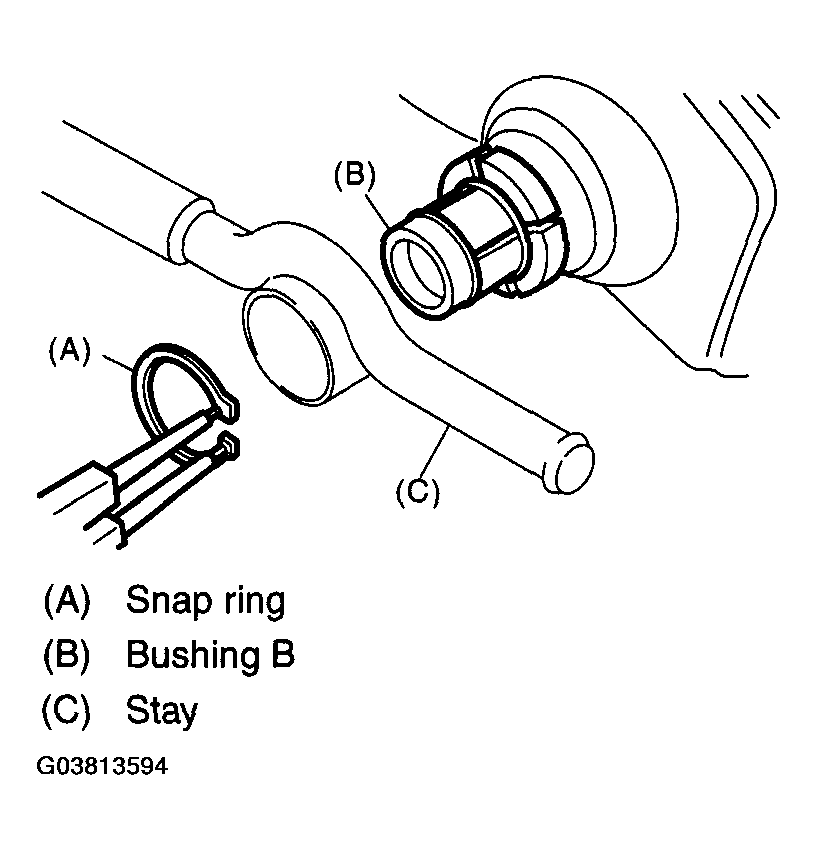

Fig 3: Installing Snap Ring And Stay To Bushing
Courtesy of SUBARU OF AMERICA, INC.
Tighten with lock wire to the extent that the boot will not come off.
NOTE: Always use new lock wire.

Fig 4: Tightening Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
Insert the rod into the boot hole.
Connect rod to lever.
Tightening torque:

11.8 N.m (1.2 kgf-m, 8.7 ft-lb)

Fig 5: Inserting Rod Into Boot Hole
Courtesy of SUBARU OF AMERICA, INC.
Check the swing torque of rod in relation to the gear shift lever.
Check that there is no excessive play and that parts move smoothly.
