General Description
>>
Components With Torque Specifications
>>
Transfer And Extension Case With MPT
Transfer And Extension Case With MPT

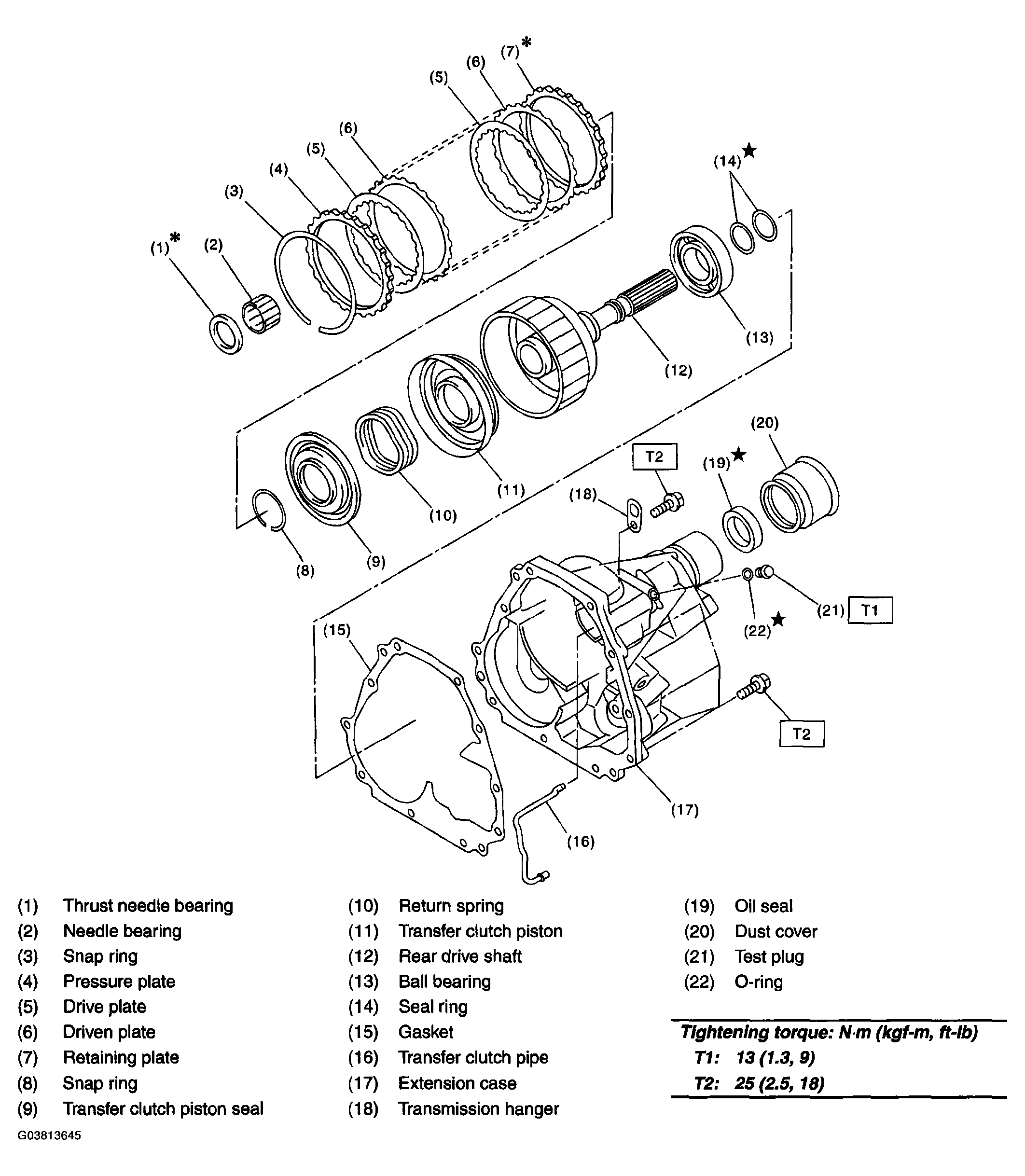

Fig 1: Exploded View Of Transfer And Extension Case With Torque Specifications (With MPT)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
