Subaru
>>
2005
>>
Forester XT, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
A/T & M/T Control Systems
>>
General Description
>>
Components
>>
At Select Lever
At Select Lever

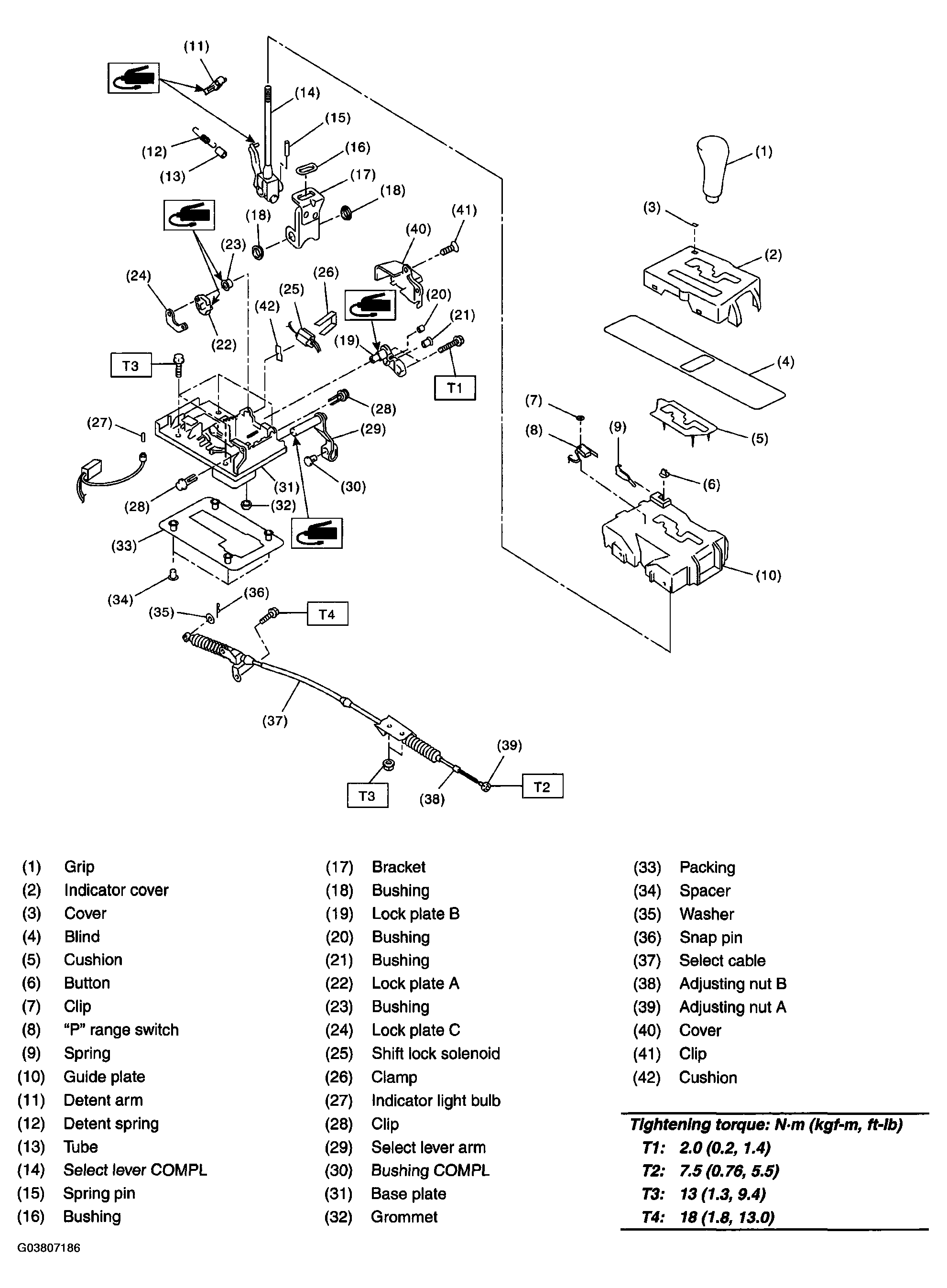

Fig 1: Exploded View Of Select Lever Components With Torque Specifications (AT)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
