AT Shift Lock Control System: Wiring Diagram

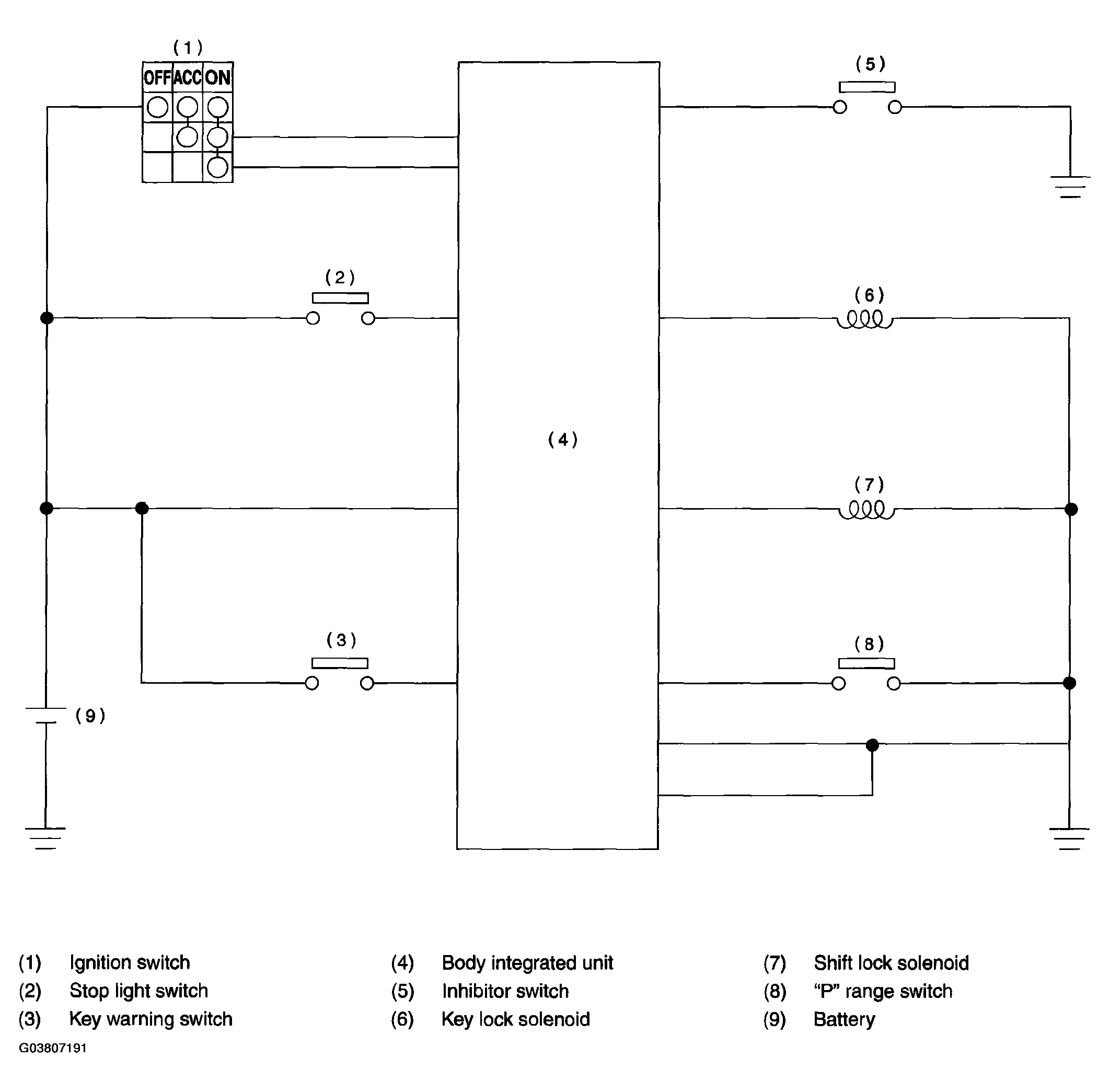

Fig 1: Wiring Diagram - AT Shift Lock Control System

G03807191

Courtesy of SUBARU OF AMERICA, INC.
