Home >> Subaru >> 2005 >> Forester XT, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> General Description >> Components >> Rear Seat Belt

Rear Seat Belt

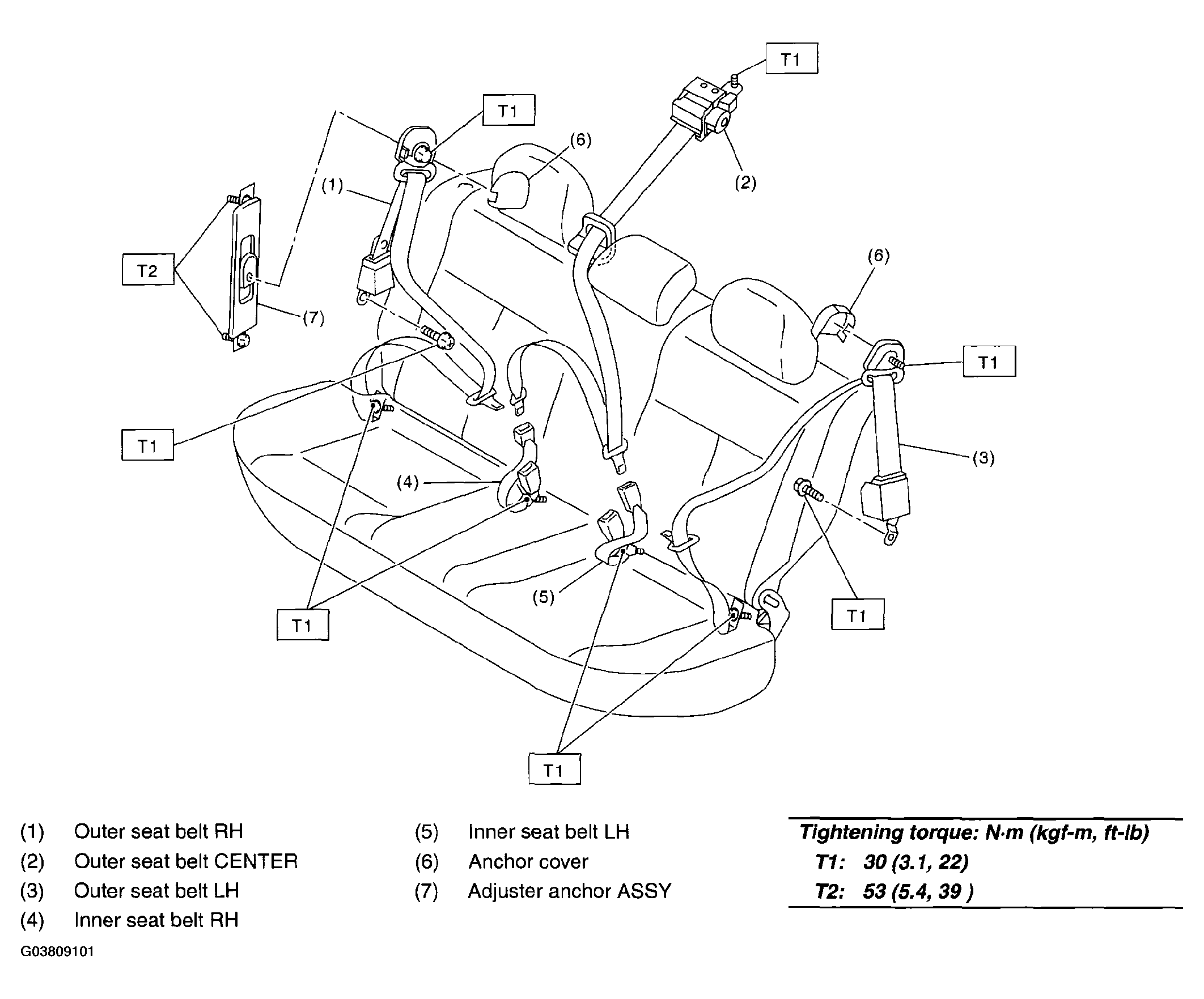

Fig 1: Rear Seat Belt Replacement Components With Torque Specifications

G03809101

Courtesy of SUBARU OF AMERICA, INC.
