Recommended Materials: Lubricants

Use either the lubricants in the table below or equivalent lubricants. See the table below to choose the correct SAE viscosity.

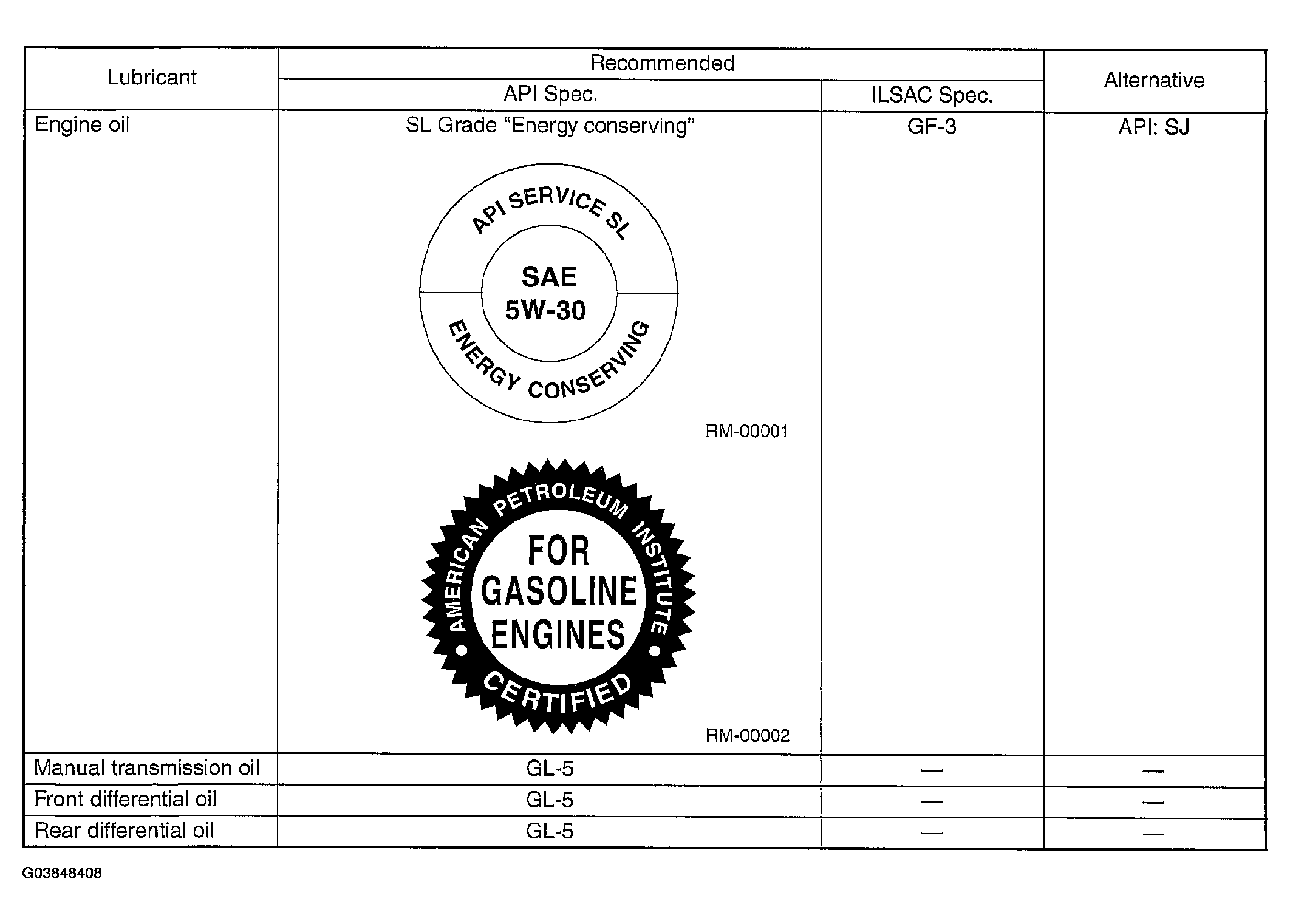

Fig 1: Recommended Lubricant Chart

Courtesy of SUBARU OF AMERICA, INC.

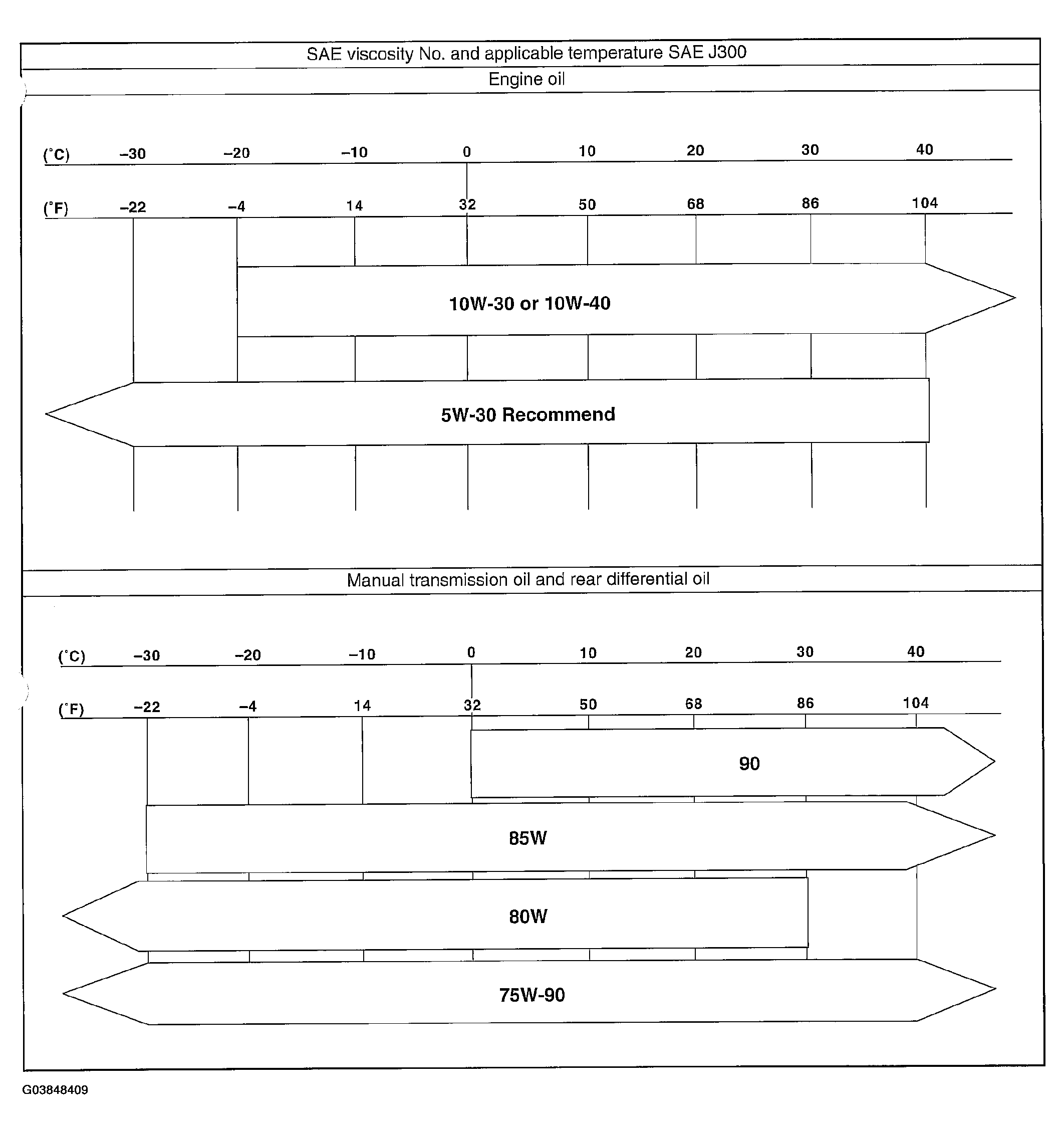

Fig 2: SAE Viscosity Chart For Engine, Manual Transmission And Rear Differential Oil

Courtesy of SUBARU OF AMERICA, INC.

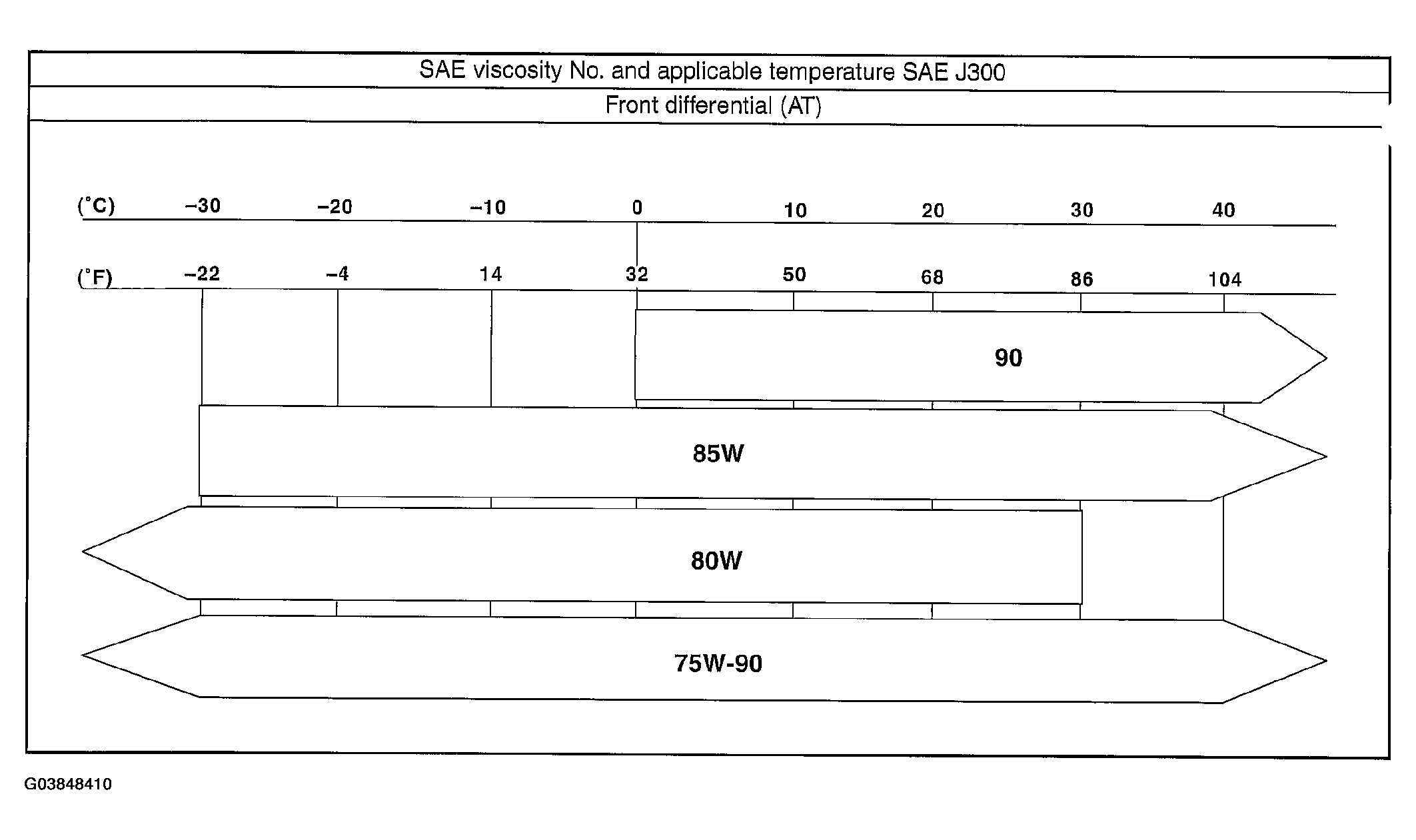

Fig 3: SAE Viscosity Chart For Front Differential (AT)

Courtesy of SUBARU OF AMERICA, INC.
