Power Steering Fluid Level

Check that the power steering fluid level is normal. If insufficient, check that no leaks are found. Then add the necessary amount of the specified power steering fluid.

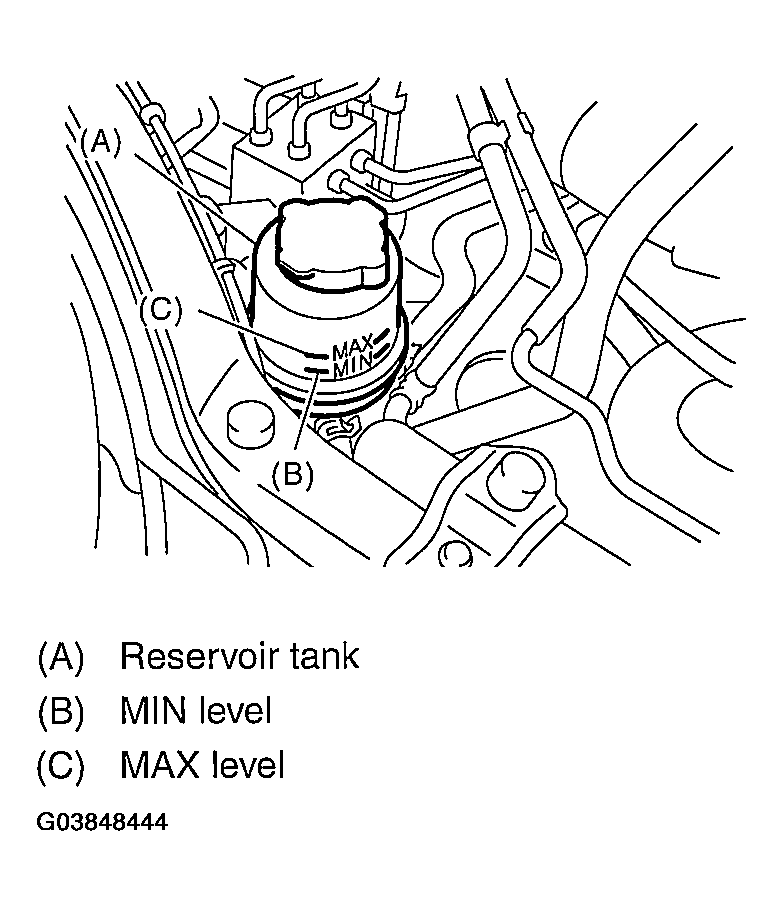

Fig 1: Identifying Power Steering Fluid Levels
G03848444Courtesy of SUBARU OF AMERICA, INC.
