Non-Turbo Model

  1. Remove the radiator fan and air conditioner fan. < Ref. to RADIATOR MAIN FAN AND FAN MOTOR .> and < Ref. to RADIATOR SUB FAN AND FAN MOTOR .>
  2. Shield the radiator from any damage using cardboard and blanket.
  3. Remove the V-belt cover.

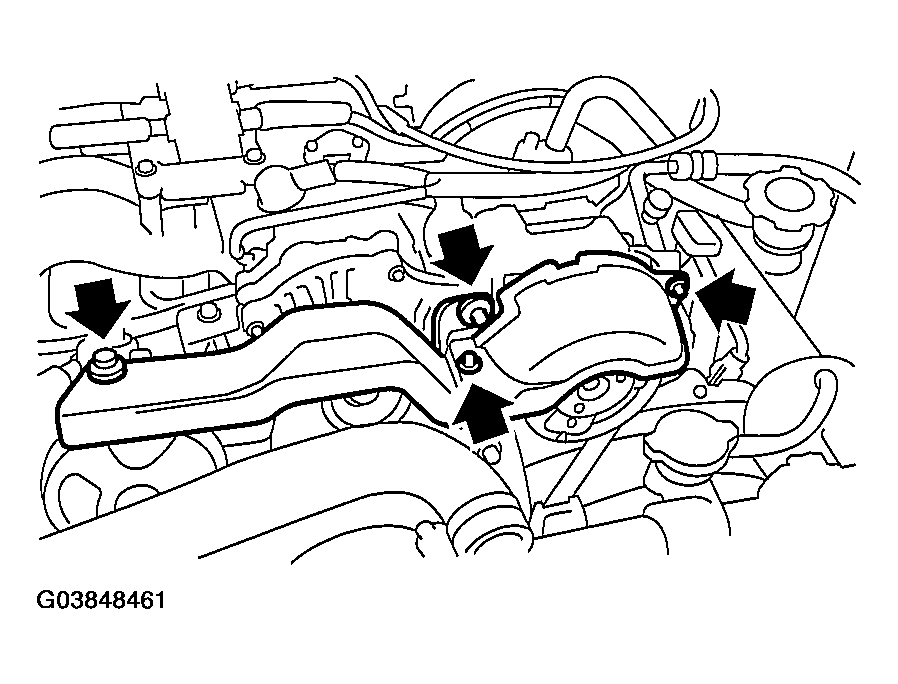

    Fig 1: Identifying V-Belt Cover Removing Bolts
    G03848461Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the V-belts. < Ref. to V-BELT .>
  5. Remove the air conditioning compressor V-belt tensioner.
  6. To lock the crankshaft, use ST. Remove the pulley bolt.

    ST 499977100 CRANK PULLEY WRENCH

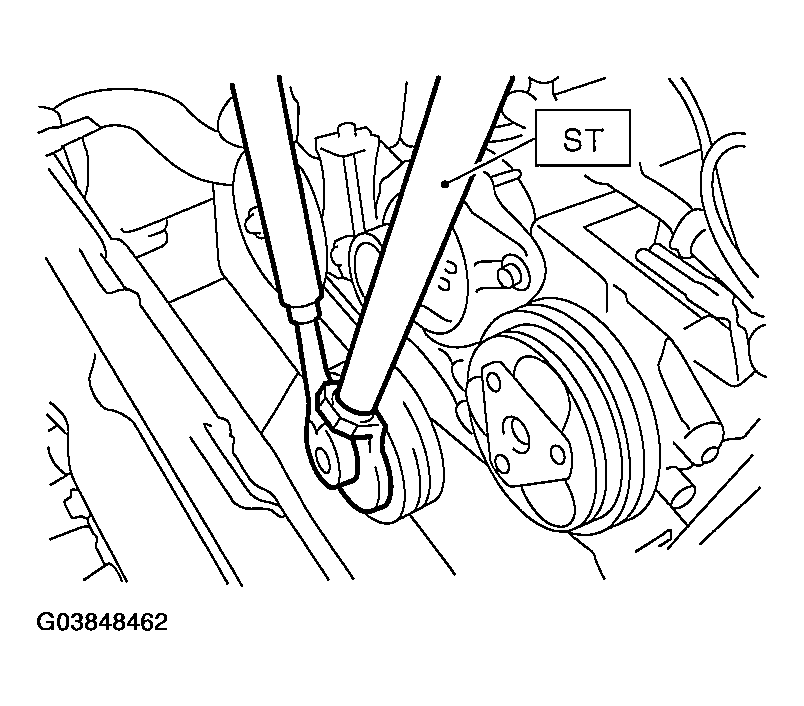

    Fig 2: Locking Crankshaft Using Crank Pulley Wrench ST 499977100
    G03848462Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the crank pulley.
  8. Remove the left side belt cover.
  9. Remove the front timing belt cover.
  10. Remove the timing belt guide. (MT model)

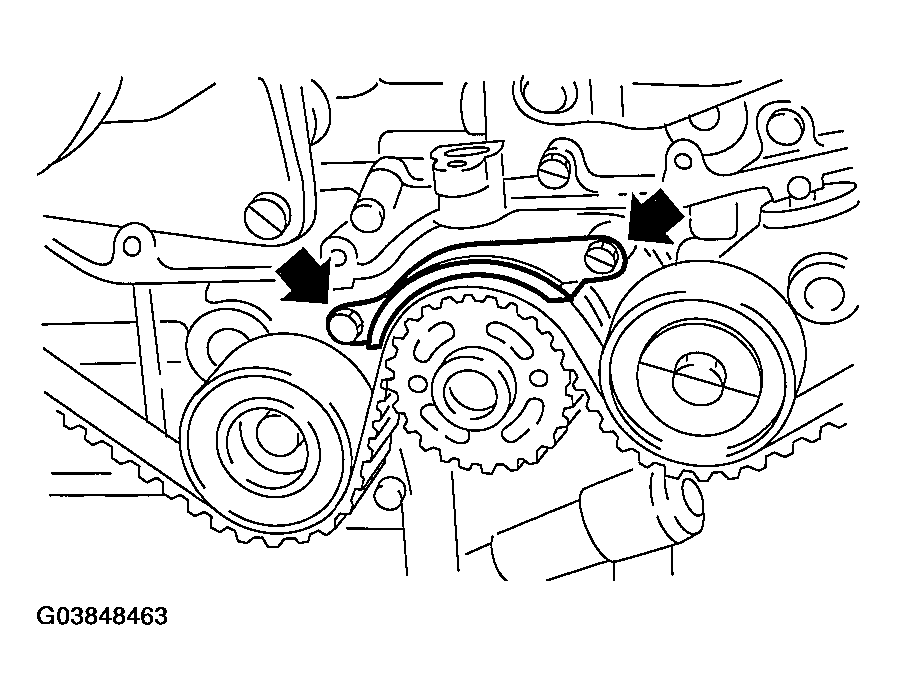

    Fig 3: Removing Timing Belt Guide (MT Model)
    G03848463Courtesy of SUBARU OF AMERICA, INC.
  11. Turn the crankshaft and align alignment marks on crankshaft, and right and left cam sprockets with notches of belt cover and cylinder block.

    ST 499987500 CRANKSHAFT SOCKET

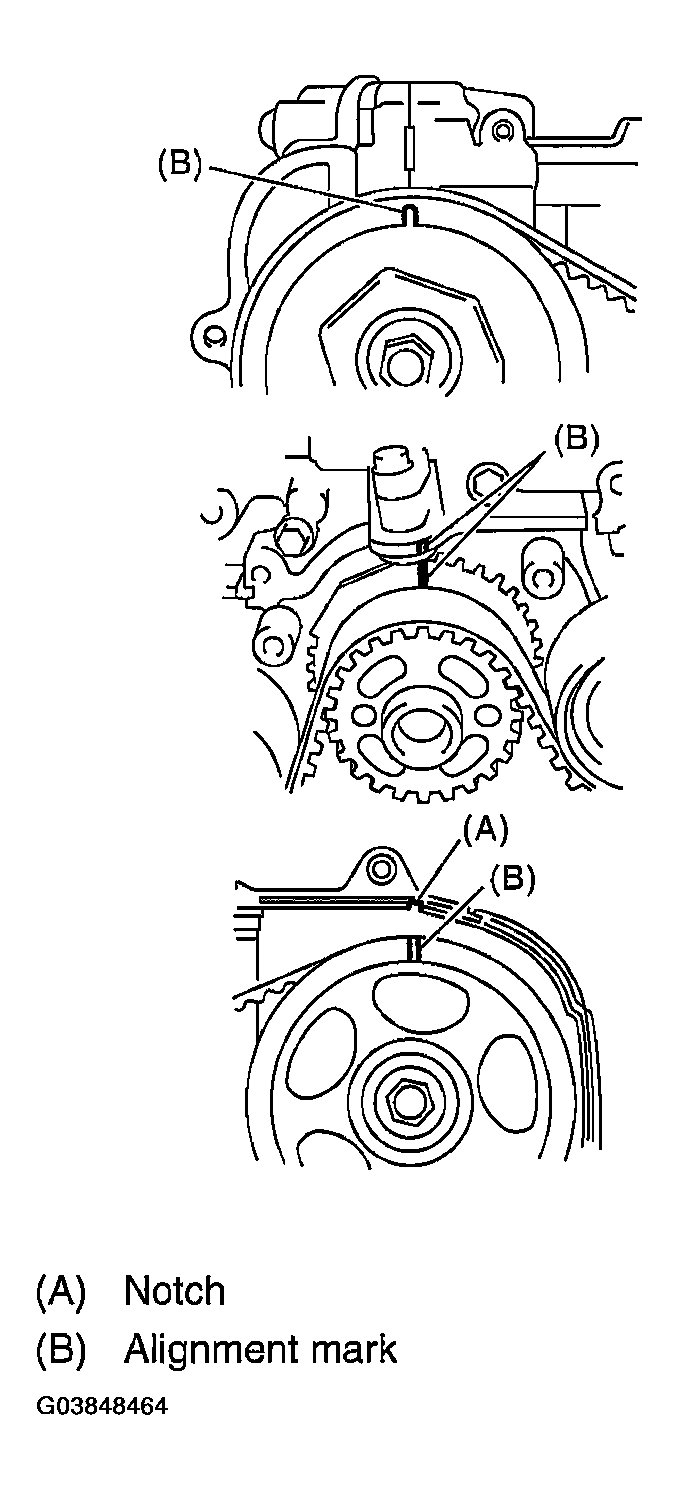

    Fig 4: Identifying Crankshaft Alignment Marks And Notches
    G03848464Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the belt idler.
  13. Remove the belt idler (No. 2).

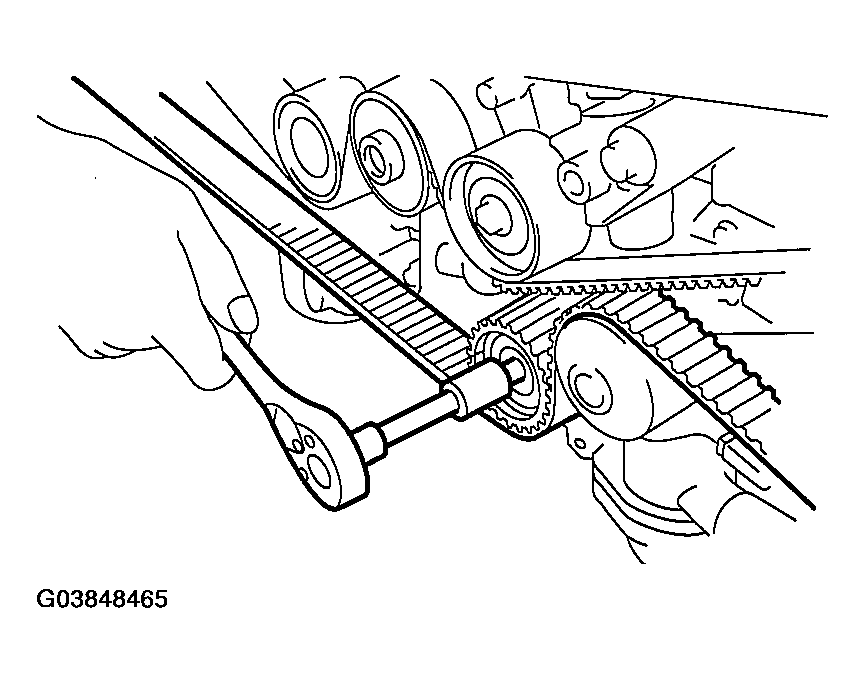

    Fig 5: Removing Belt Idler (No.2)
    G03848465Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the timing belt.
  15. Remove the automatic belt tension adjuster assembly.

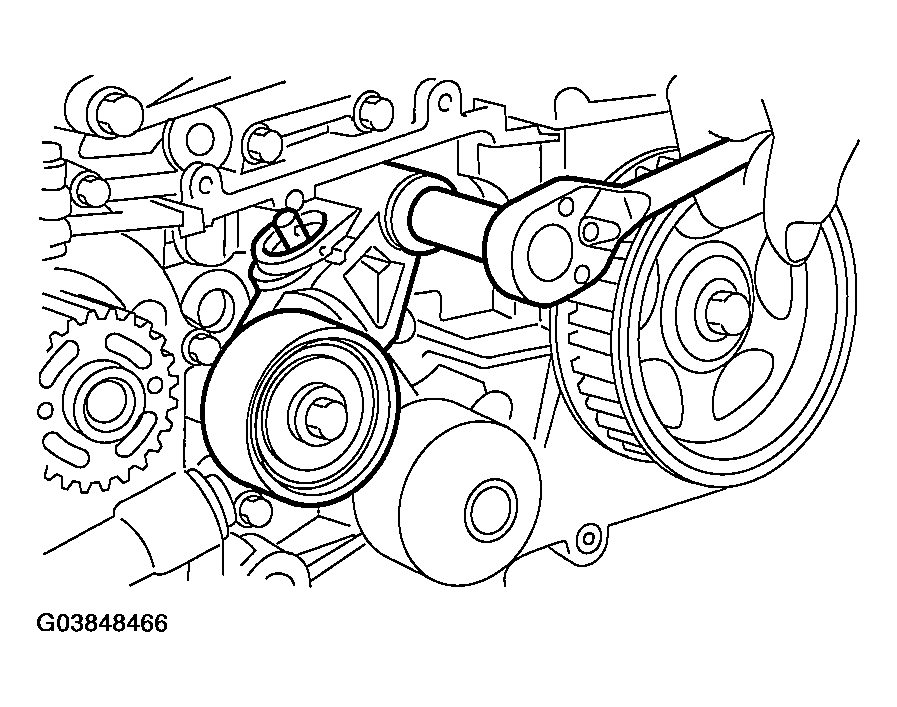

    Fig 6: Removing Automatic Belt Tension Adjuster Assembly
    G03848466Courtesy of SUBARU OF AMERICA, INC.
  16. Install in the reverse order of removal. < Ref. to INSTALLATION , Timing Belt.>
