Brake Line: Inspection

Check scratches, swelling, corrosion, traces of fluid leakage on the brake hoses or pipe joints.
Check the possibility of adjacent parts interfering with brake pipes and hoses during driving, or loose connectors and clamps.
Check any trace of fluid leakage, scratches, etc. on the master cylinder, wheel cylinder and pressure control valve.
NOTE:
- When the brake fluid level in the reservoir tank is lower than the specified limit, the brake fluid warning light on the combination meter will come on.
- Visually check the brake hose (using a mirror where it is difficult to see) for any damage.

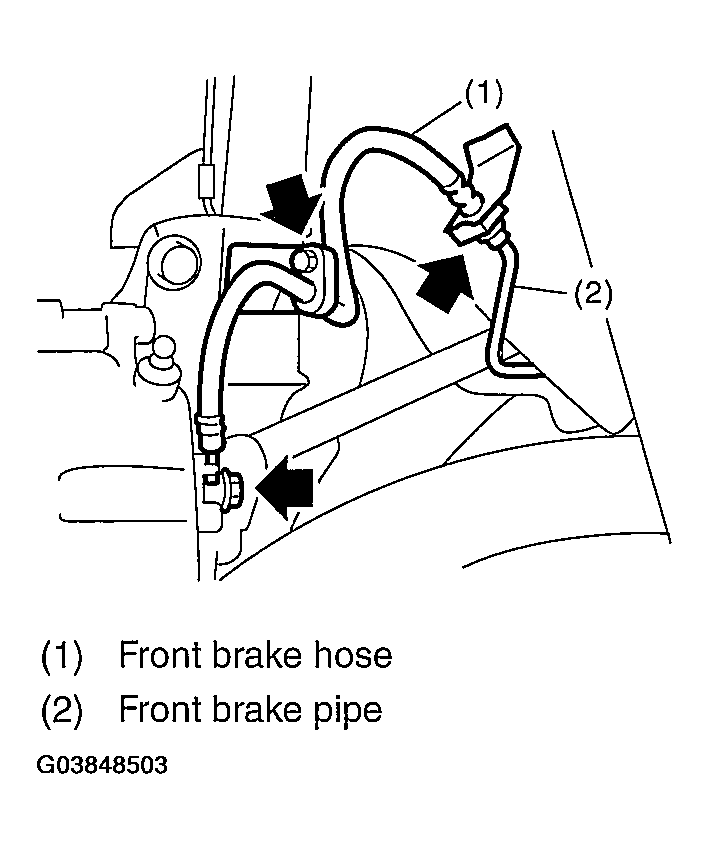

Fig 1: Identifying Front Brake Hose Checking Points
Courtesy of SUBARU OF AMERICA, INC.

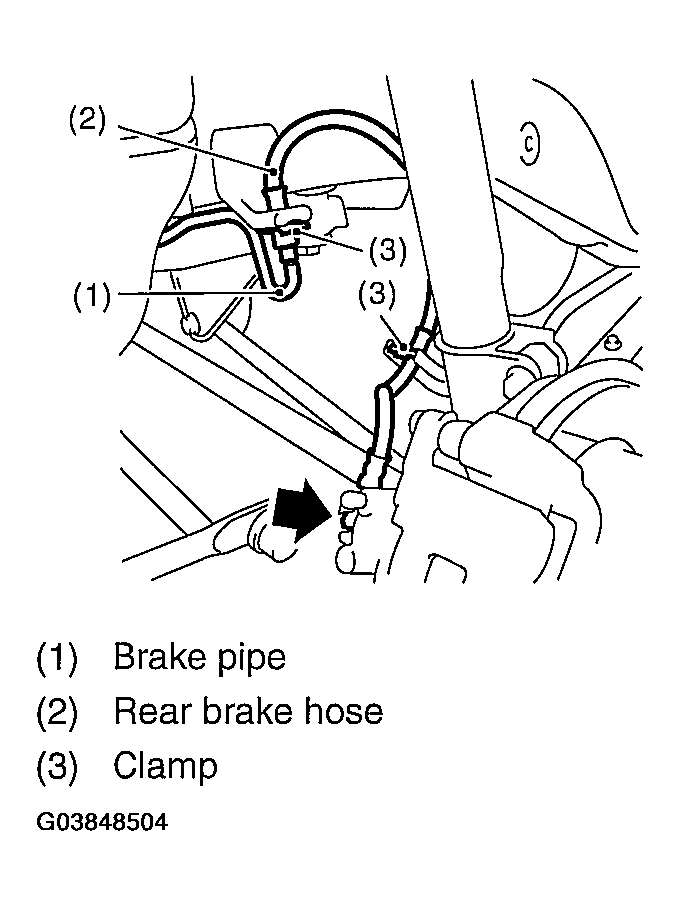

Fig 2: Identifying Rear Brake Hose Checking Points
Courtesy of SUBARU OF AMERICA, INC.
