Wastegate Control Solenoid Valve: Removal

  1. Disconnect the ground cable from battery.

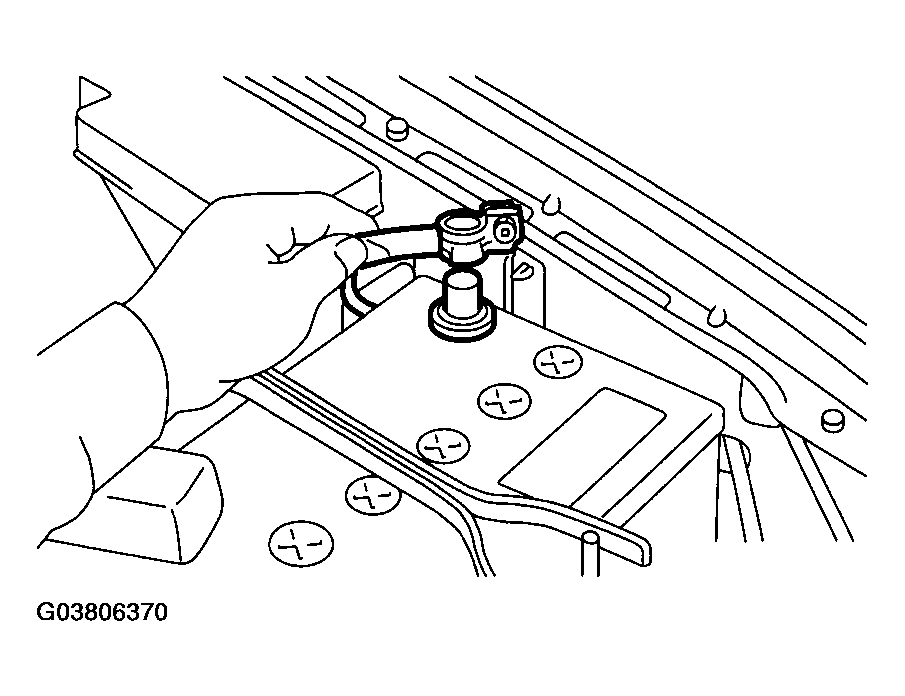

    Fig 1: Disconnecting Ground Cable From Battery
    G03806370Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the engine harness connector (A) from bracket.
  3. Disconnect the connector (B) from wastegate control solenoid valve.
  4. Remove the bracket from body.

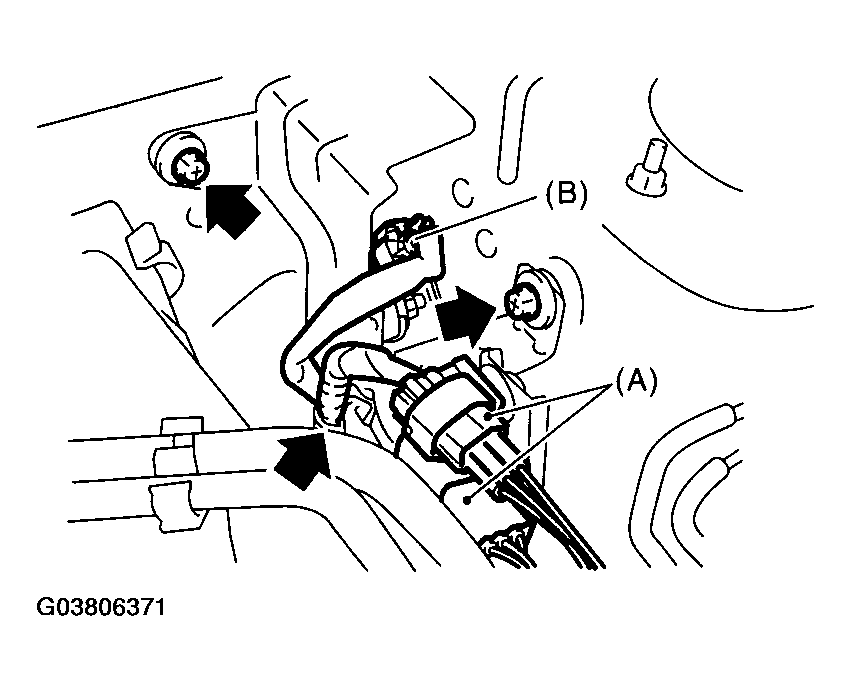

    Fig 2: Removing Bracket From Body
    G03806371Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the pressure hoses (C) from waste-gate control solenoid valve.

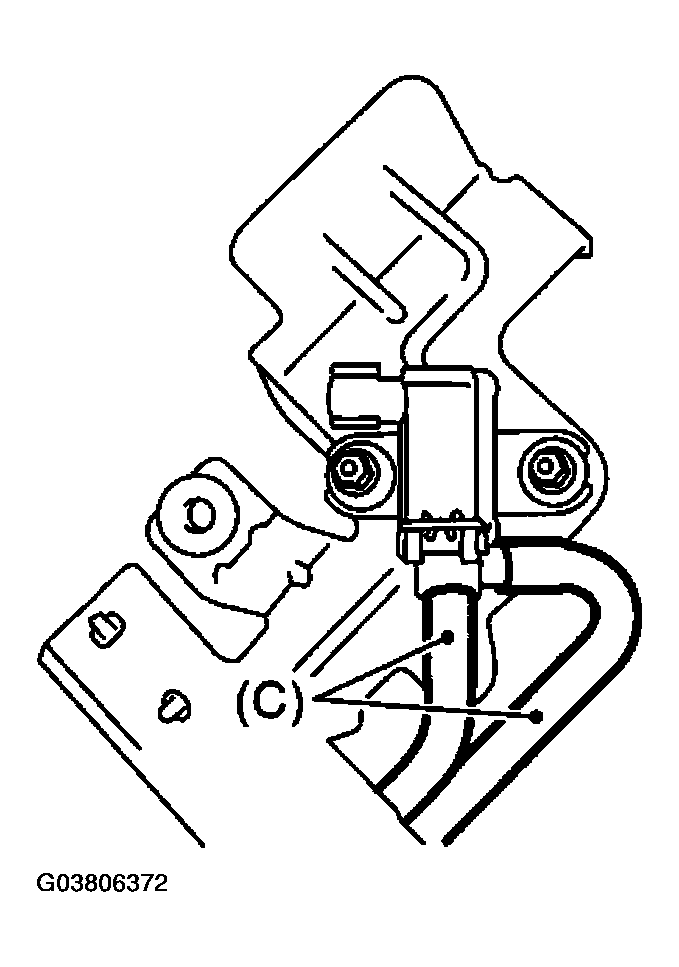

    Fig 3: Disconnecting Pressure Hoses From Waste-Gate Control Solenoid Valve
    G03806372Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the wastegate control solenoid valve from bracket.

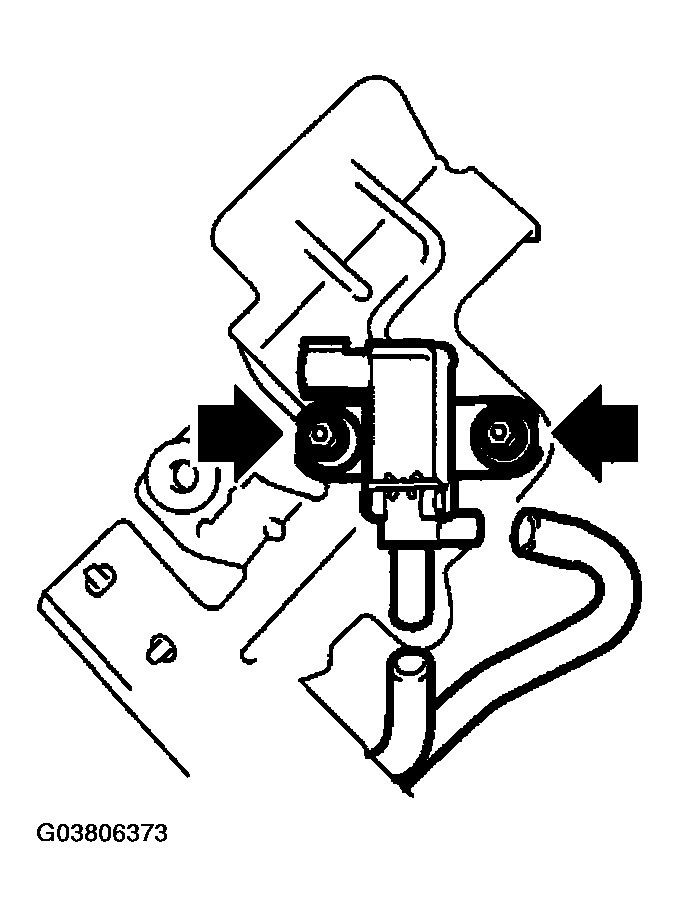

    Fig 4: Removing Wastegate Control Solenoid Valve From Bracket
    G03806373Courtesy of SUBARU OF AMERICA, INC.
