Fuel Cut Valve: Removal

  1. Remove the fuel tank. < Ref. to REMOVAL , Fuel Tank. >
  2. Remove the protect cover.
    Fig 1: Removing Protect Cover
    G03806476Courtesy of SUBARU OF AMERICA, INC.
  3. Move the clip and disconnect the evaporation hose from fuel cut valve.

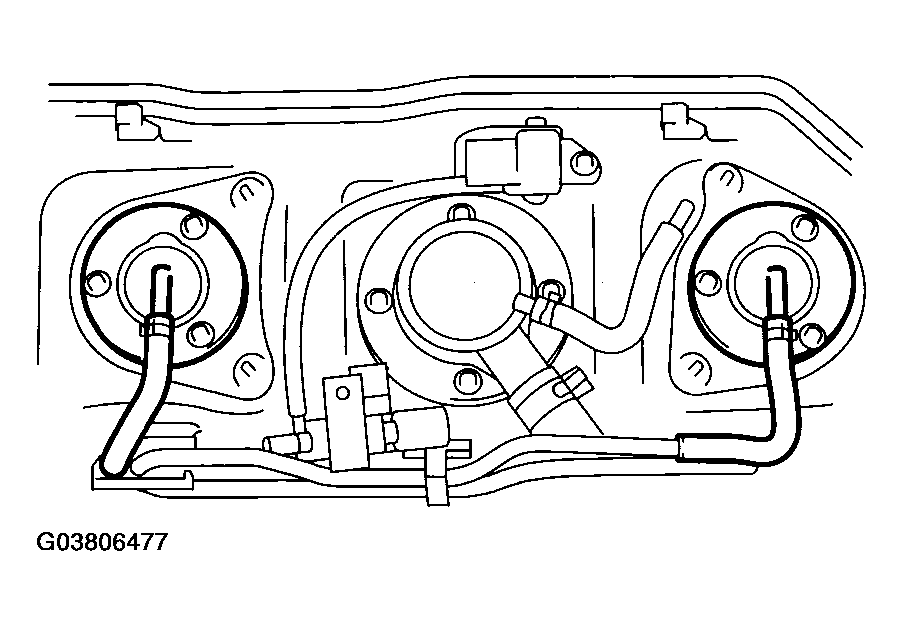

    Fig 2: Disconnecting Evaporation Hose From Fuel Cut Valve
    G03806477Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts which install the fuel cut valve.
