Home >> Subaru >> 2005 >> Forester XT, Standard >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Lubrication (H4SO) >> General Description >> Components >> Turbo Model

Turbo Model

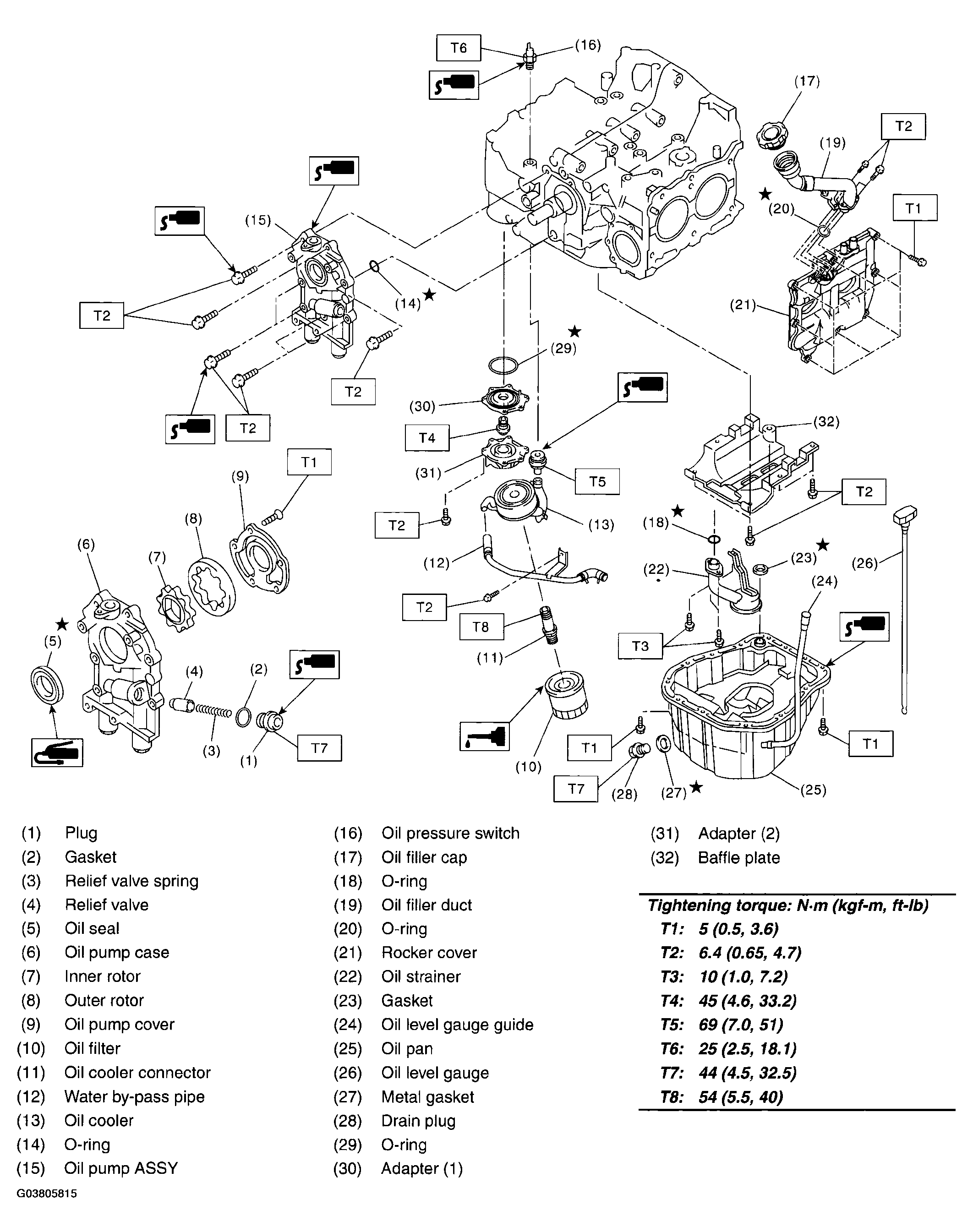

Fig 1: Lubrication Replacement Components With Torque Specifications (Turbo)

G03805815

Courtesy of SUBARU OF AMERICA, INC.
