Lubrication (H4SO)
>>
General Description
>>
Components
>>
Non-Turbo Model
Non-Turbo Model

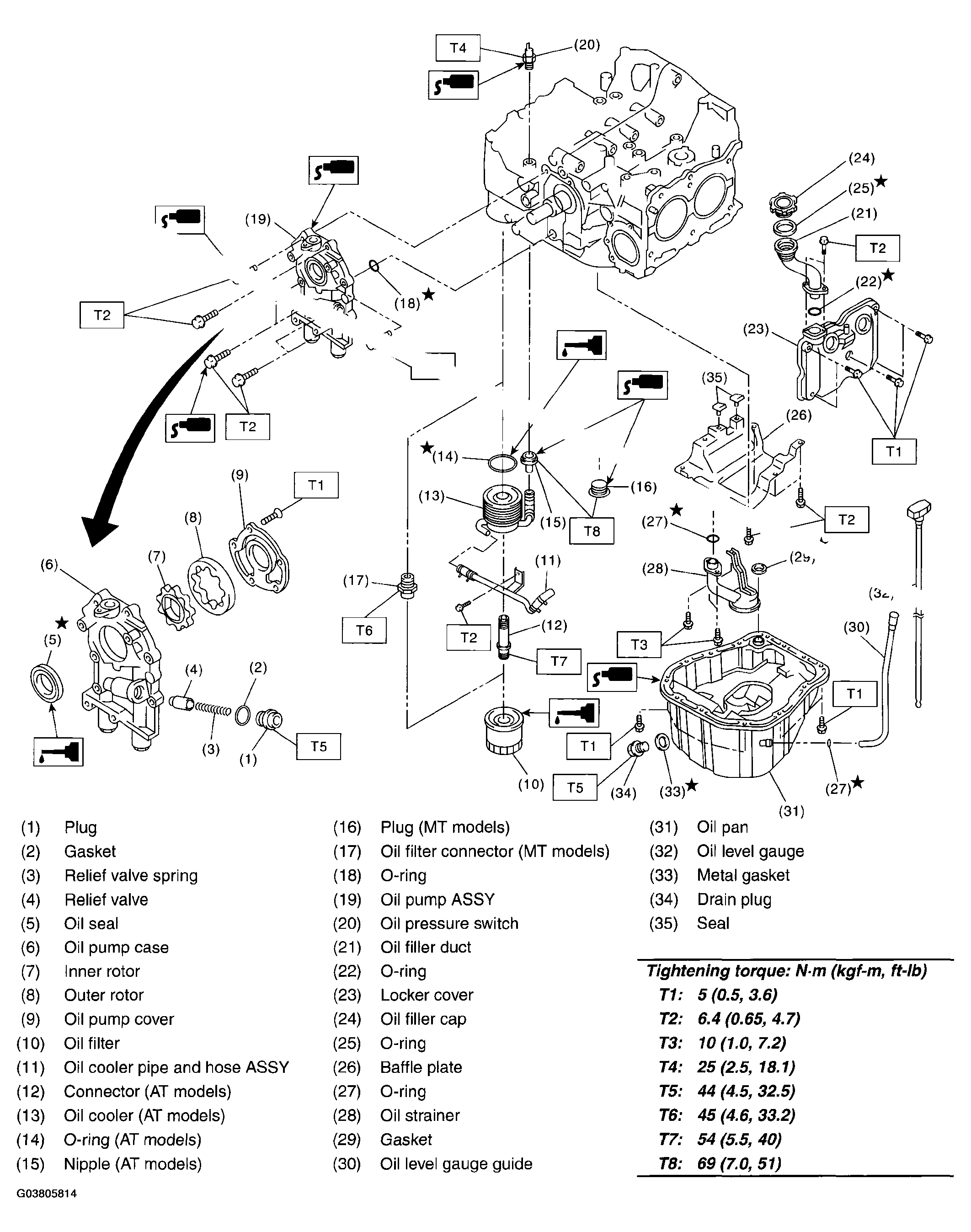

Fig 1: Lubrication Replacement Components With Torque Specifications (Non-Turbo)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
