Security Control Unit: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  3. Disconnect the connector from the security control unit.
  4. Remove nuts (A) and cruise control unit (B).

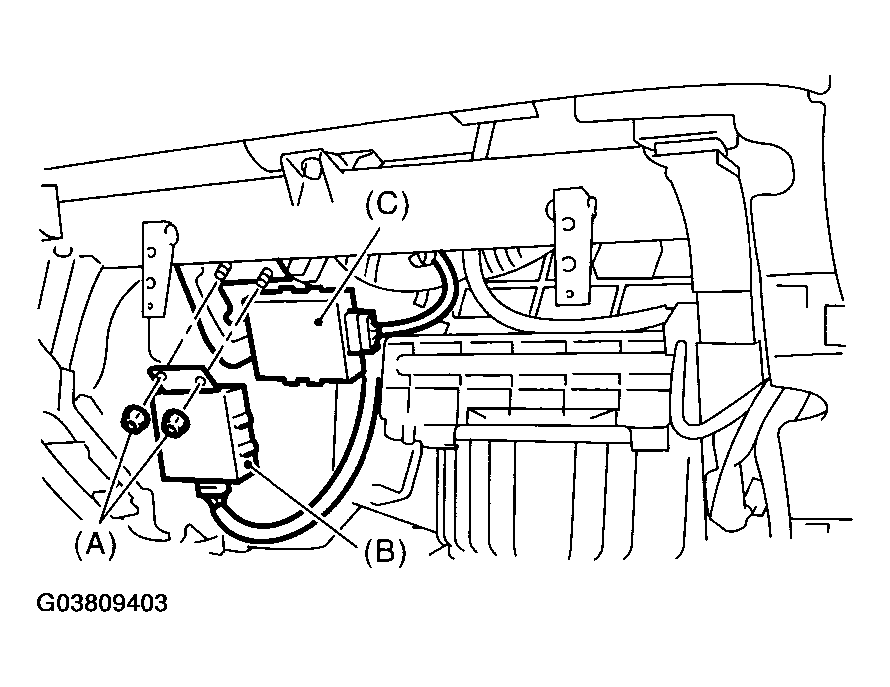

    Fig 1: Removing Nuts (A) And Cruise Control Unit (B)
    G03809403Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the security control unit (C).
