Select Lever: Removal

  1. Set the vehicle on a lift.
  2. Disconnect the ground cable from battery.
  3. Move the select lever to "N" range.
  4. Lift-up the vehicle.
  5. Remove the rear exhaust pipe and muffler. Non-turbo model

    < Ref. to REMOVAL , Rear Exhaust Pipe. > < Ref. to REMOVAL , Muffler. > Turbo model

    < Ref. to REMOVAL , Rear Exhaust Pipe. > < Ref. to REMOVAL , Muffler. >

  6. Remove the heat shield cover. (If equipped)
  7. Disconnect the cable from select lever, and then remove the cable bracket.

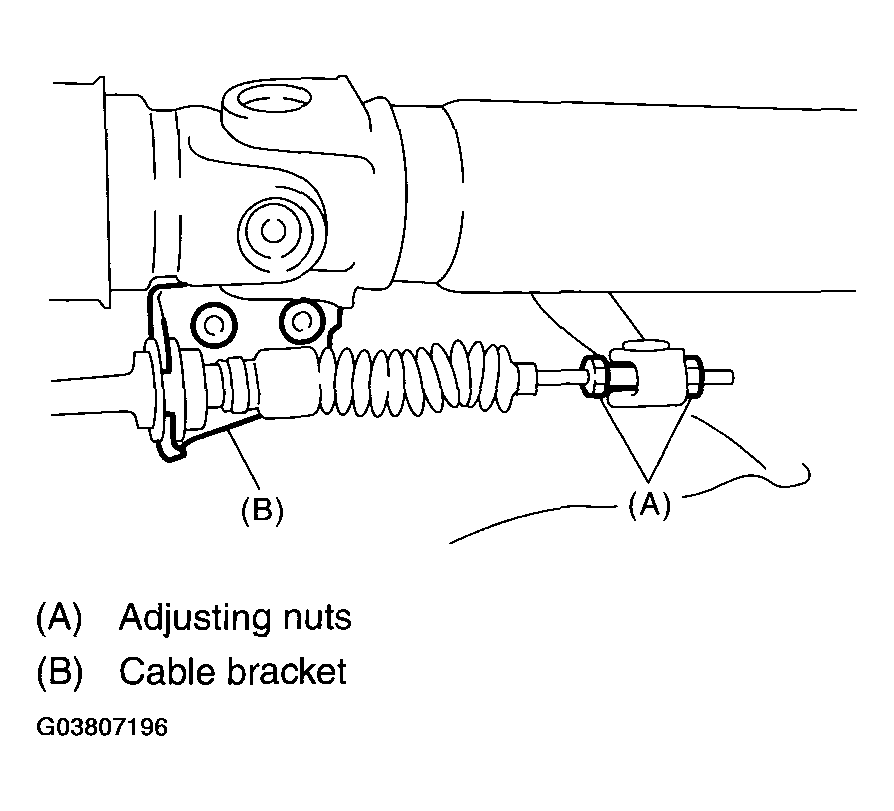

    Fig 1: Removing Cable Bracket
    G03807196Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Remove the console box. < Ref. to REMOVAL , Console Box. >
  10. Disconnect the connectors, then remove the four bolts to take out the select lever assembly from body.

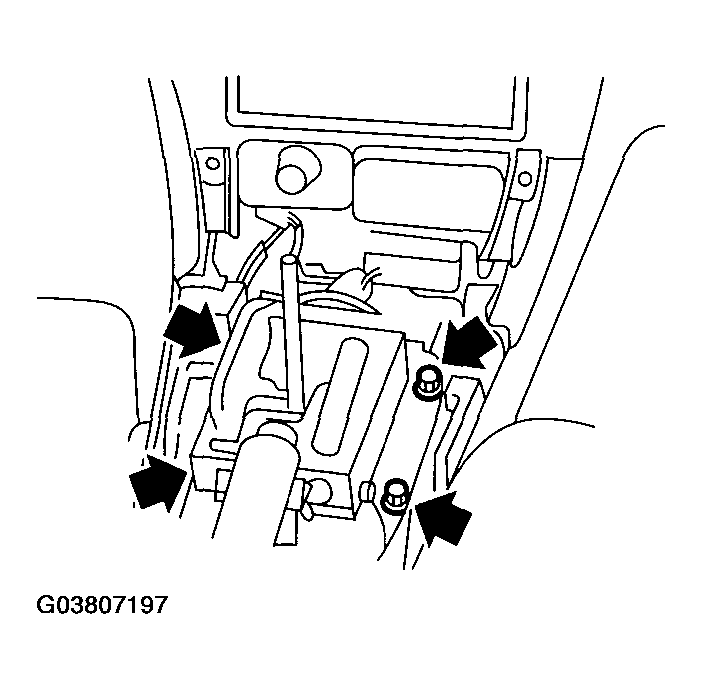

    Fig 2: Identifying Select Lever Assembly From Body Removing Bolts
    G03807197Courtesy of SUBARU OF AMERICA, INC.
