MT Gear Shift Lever: Removal

Set the vehicle on a lift.
Remove the gear shift knob.
Disconnect the ground cable from battery.
Remove the console box. < Ref. to REMOVAL , Console Box. >
Remove the clamp.

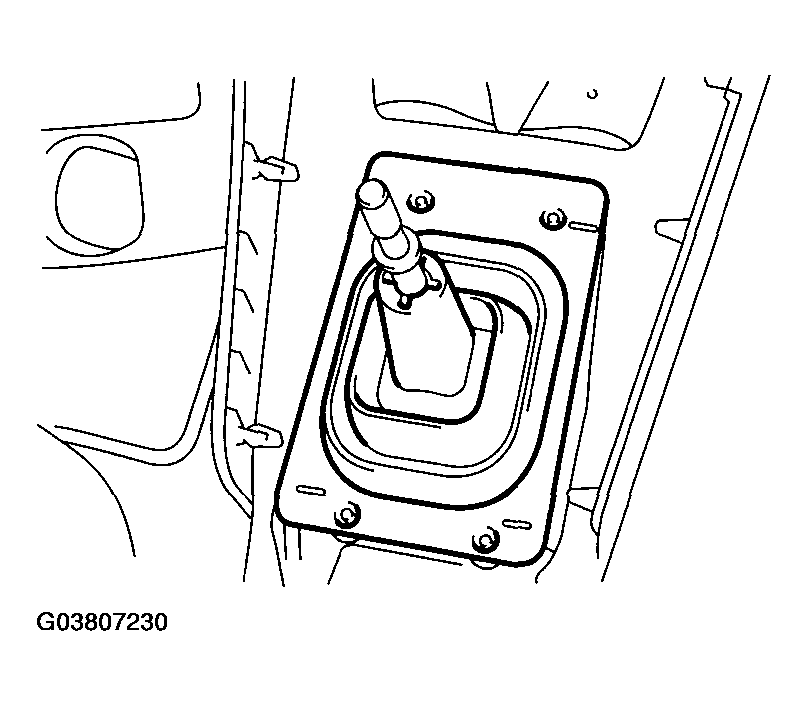

Fig 1: Removing Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and insulator assembly.

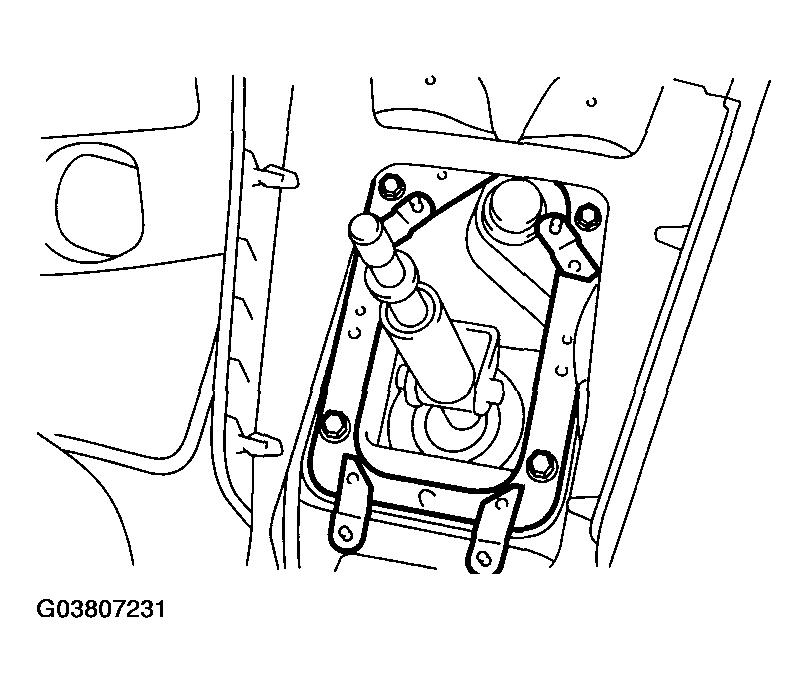

Fig 2: Removing Boot And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate COMPL from body.

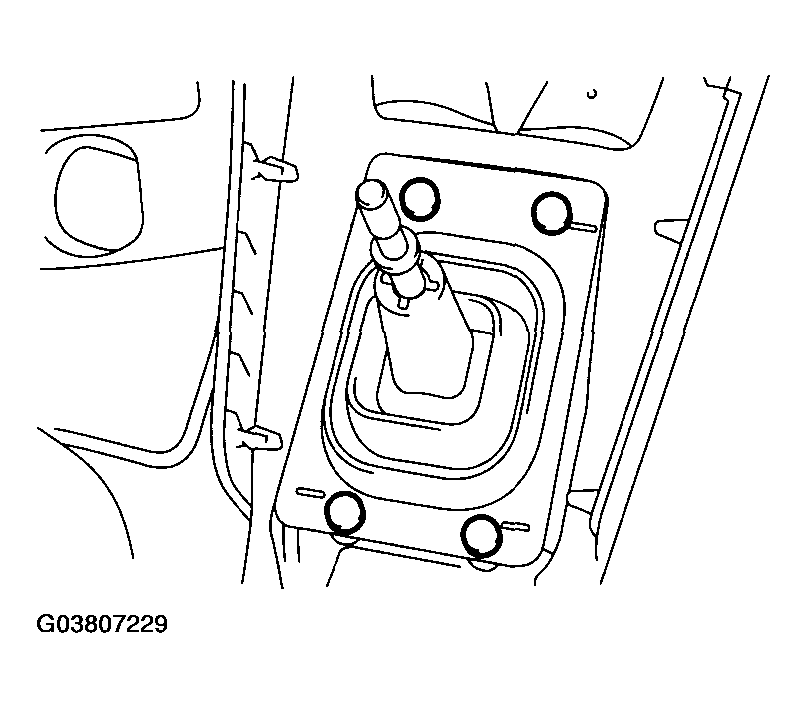

Fig 3: Removing Plate COMPL From Body
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the rear exhaust pipe and muffler. Non-turbo model
< Ref. to REMOVAL , Rear Exhaust Pipe. > < Ref. to REMOVAL , Muffler. > Turbo model

< Ref. to REMOVAL , Rear Exhaust Pipe. > < Ref. to REMOVAL , Muffler. >
Remove the heat shield cover. (If equipped)
Remove the stay from transmission bracket.

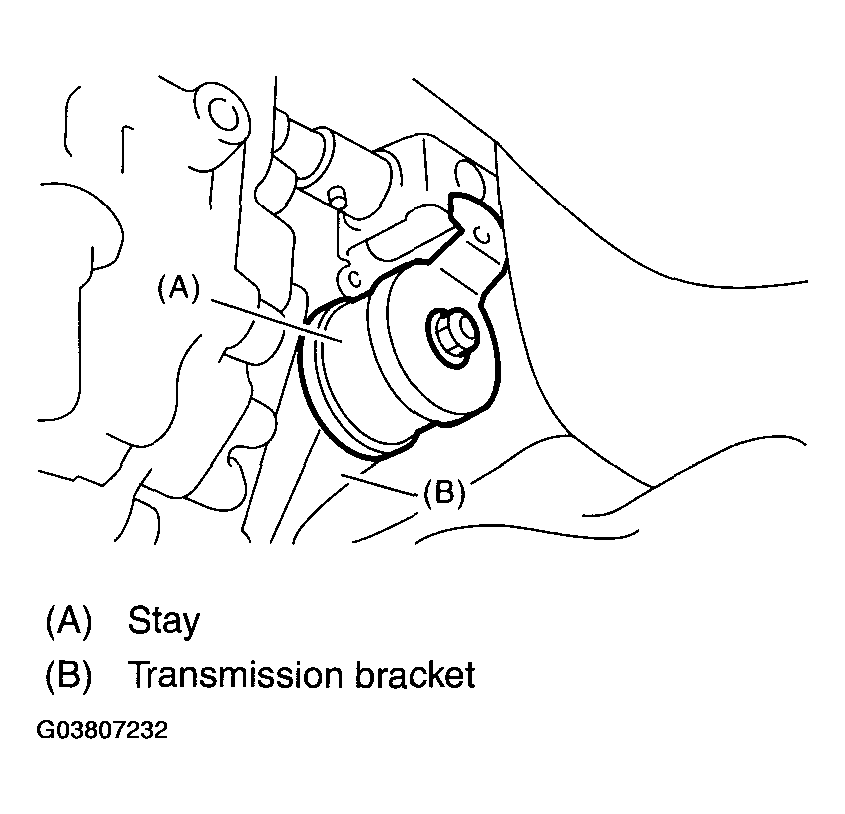

Fig 4: Removing Stay From Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from joint.

Fig 5: Removing Rod From Joint
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion rubber from body.

Fig 6: Removing Cushion Rubber From Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring pin, and then extract the joint.

Fig 7: Removing Spring Pin And Extract Joint
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the lever COMPL.

Fig 8: Removing Lever COMPL
Courtesy of SUBARU OF AMERICA, INC.
