MT Gear Shift Lever: Inspection

Check each part (bushing, cushion rubber, spacer, boot, stay and rod, etc.) for deformation, damage and wear. Repair or replace any defective part. Determine defective parts by comparing with new parts.

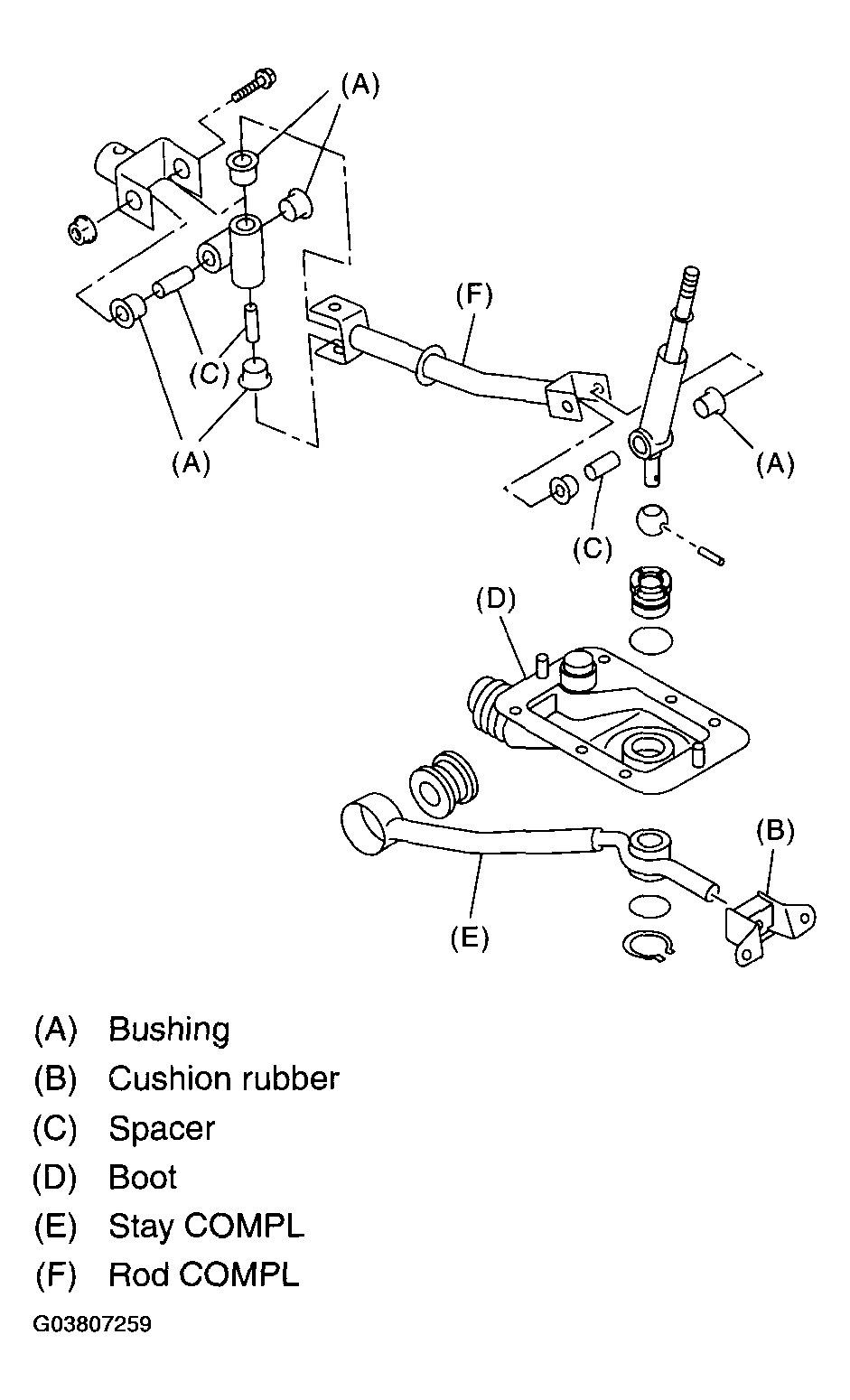

Fig 1: Identifying Gear Shift Lever Components
Courtesy of SUBARU OF AMERICA, INC.
Check the swing torque of the rod COMPL in relation of lever COMPL.
If the torque exceeds specification, replace the bushing or retighten nuts.

Swing torque:

3.7 N (0.38 kgf, 0.84 ft) or less

Fig 2: Checking Swing Torque Of Rod COMPL
Courtesy of SUBARU OF AMERICA, INC.
