Transfer And Extension Case

MPT model

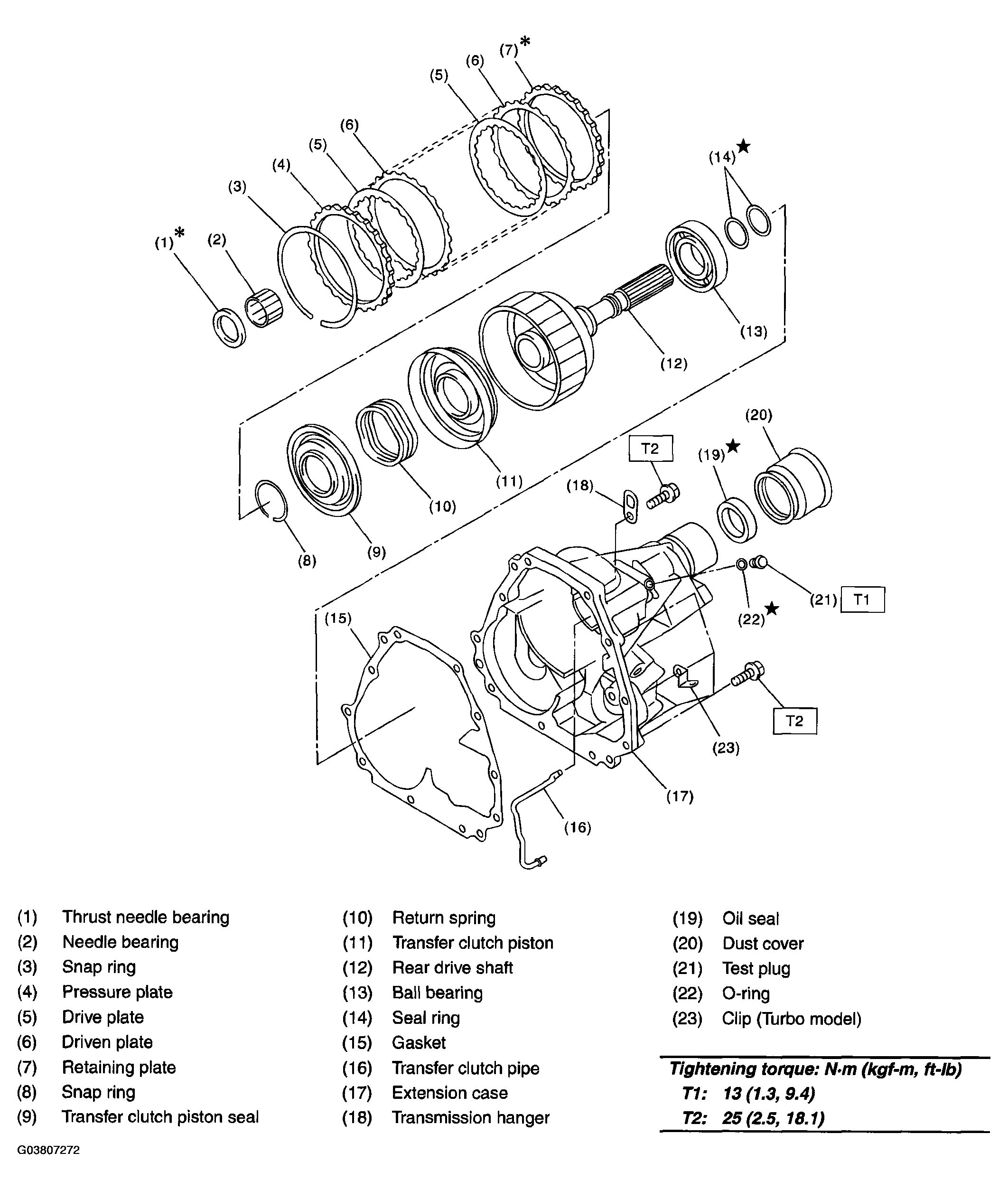

Fig 1: Exploded View Of Transfer And Extension Case With Torque Specifications (MPT Model)
Courtesy of SUBARU OF AMERICA, INC.
VTD model

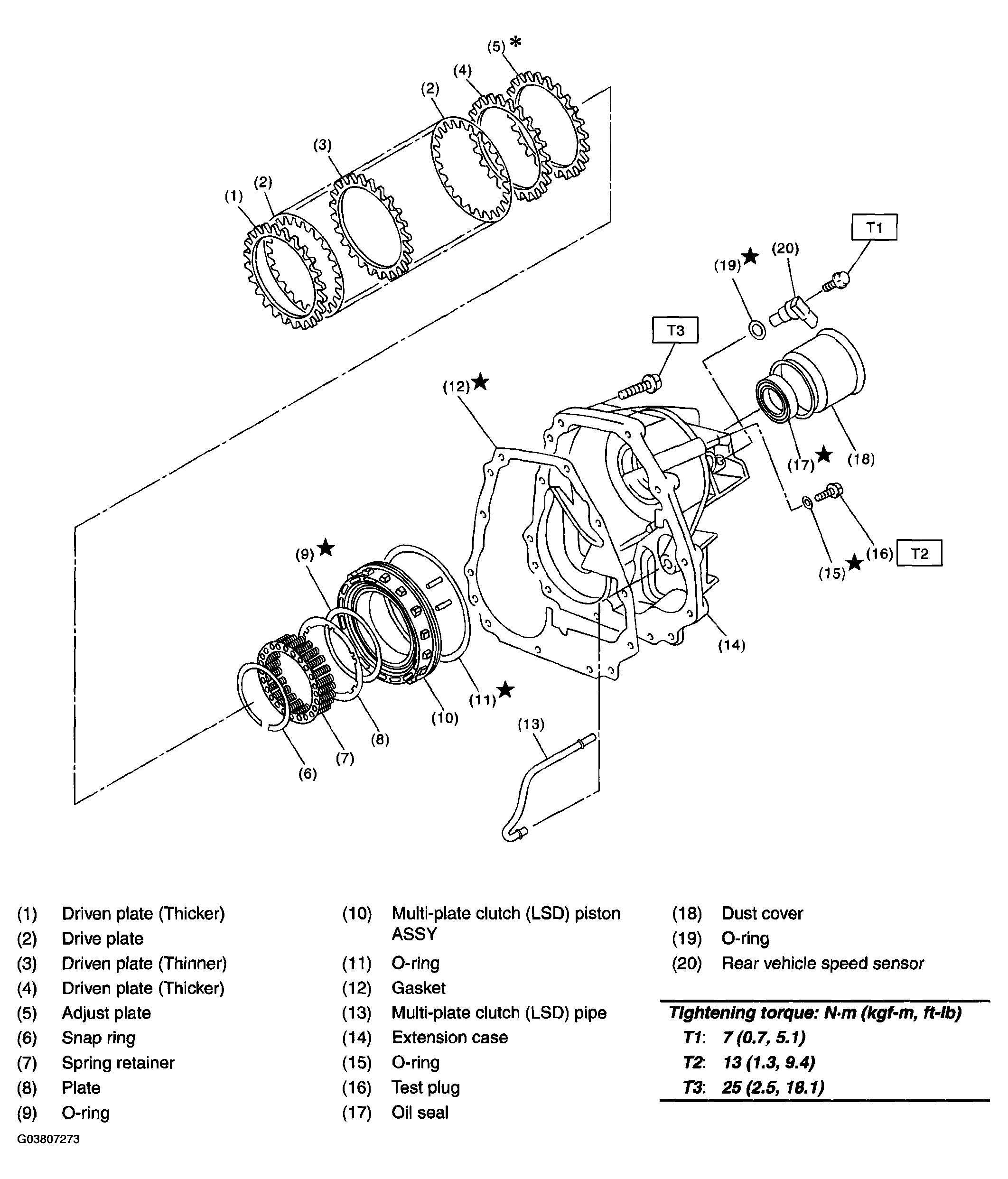

Fig 2: Exploded View Of Transfer And Extension Case With Torque Specifications (VTD Model)
Courtesy of SUBARU OF AMERICA, INC.
