Extension Case: Removal

  1. Remove the transmission assembly. < Ref. to REMOVAL , Automatic Transmission Assembly. >
  2. Remove rear vehicle speed sensor.

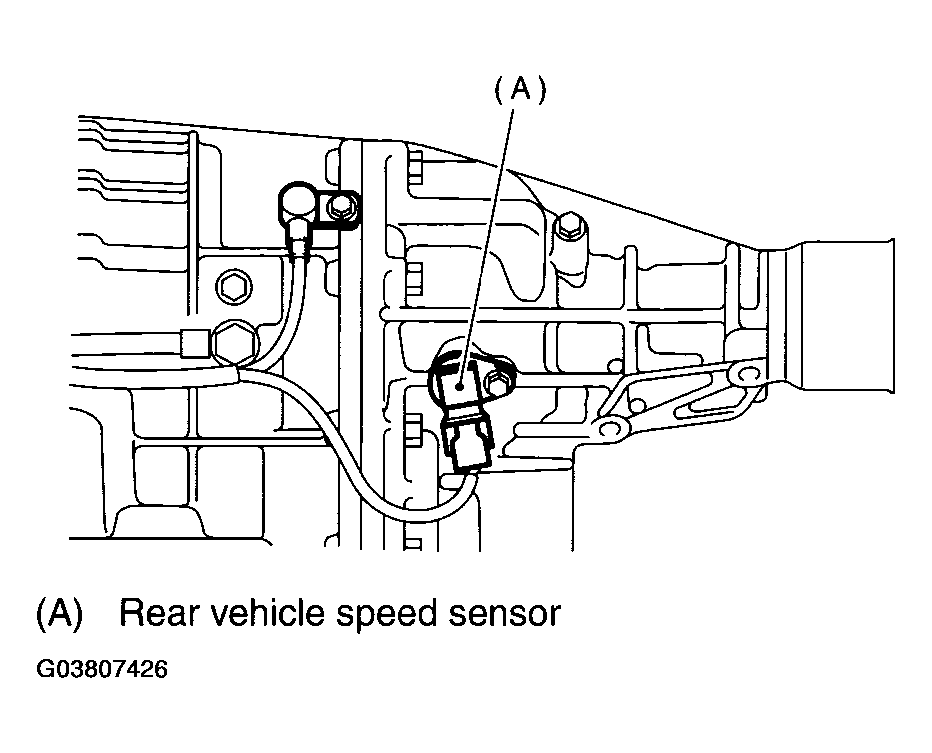

    Fig 1: Removing Rear Vehicle Speed Sensor
    G03807426Courtesy of SUBARU OF AMERICA, INC.
  3. Separate transmission case and extension case sections.

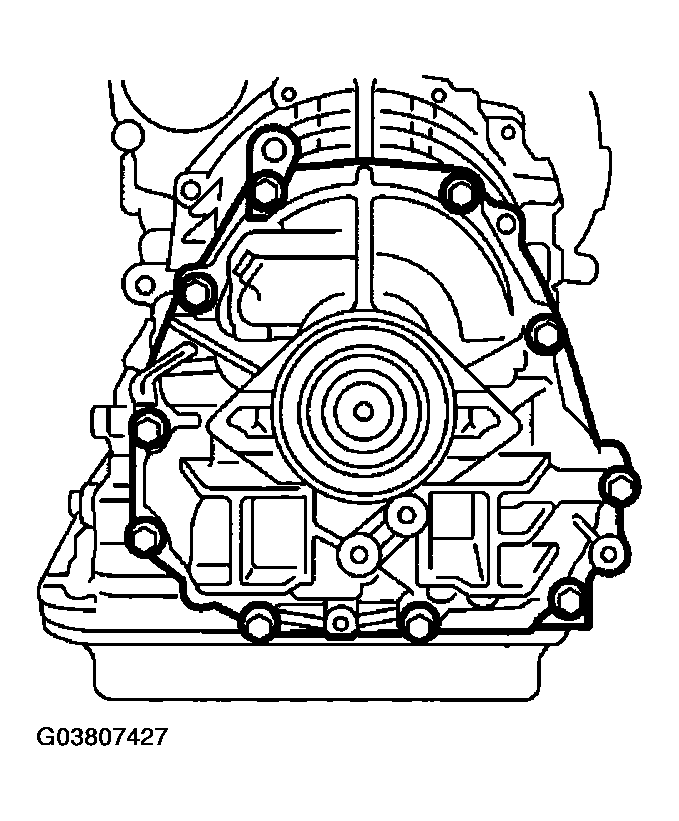

    Fig 2: Separating Transmission Case And Extension Case Sections
    G03807427Courtesy of SUBARU OF AMERICA, INC.
