Turbo Model

  1. Remove the clip (B) above the air cleaner case.

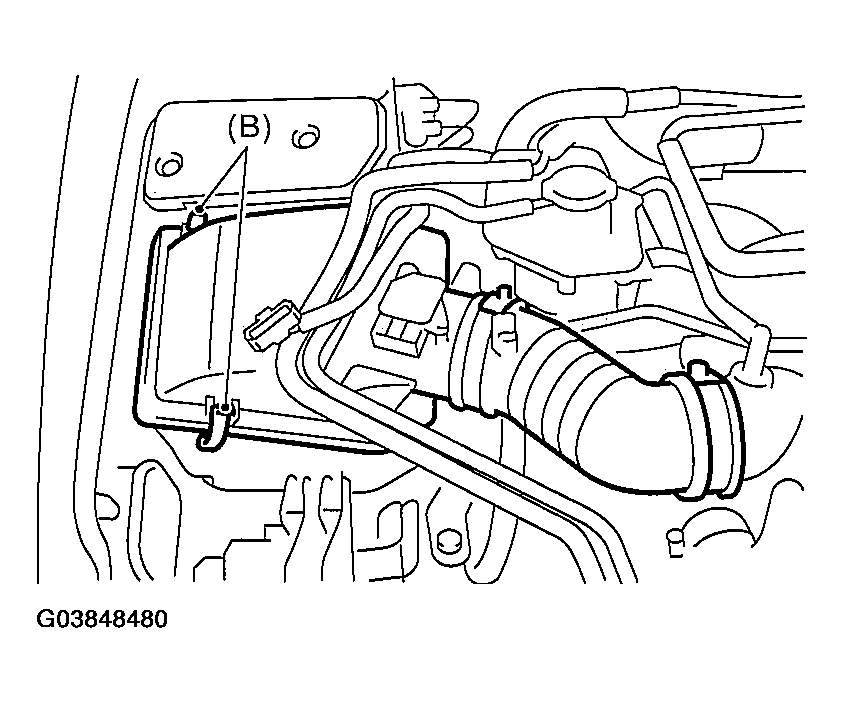

    Fig 1: Identifying Clips Above Air Cleaner Case
    G03848480Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air cleaner.

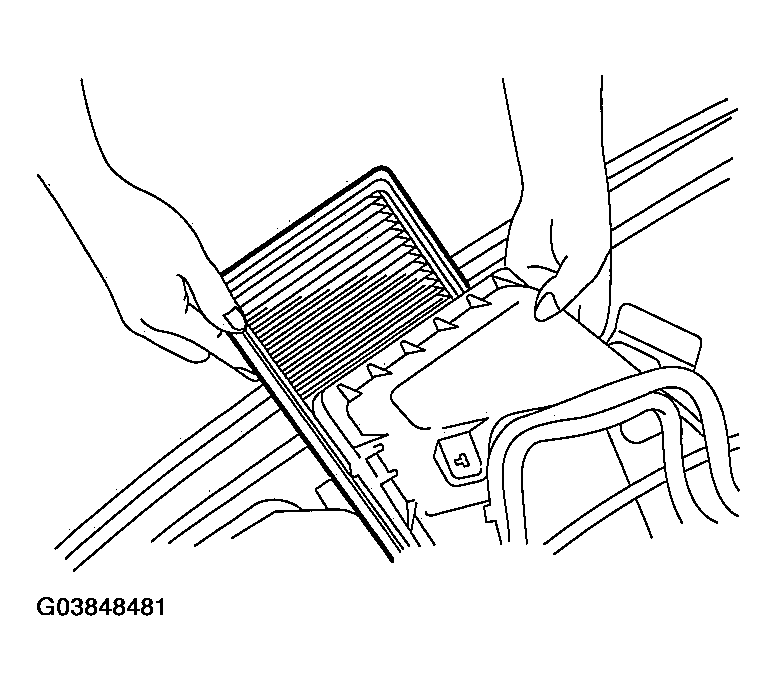

    Fig 2: Removing Air Cleaner
    G03848481Courtesy of SUBARU OF AMERICA, INC.
