Automatic Transmission Fluid

Drain the ATF by removing drain plug.
NOTE: Before starting work, cool off ATF well.

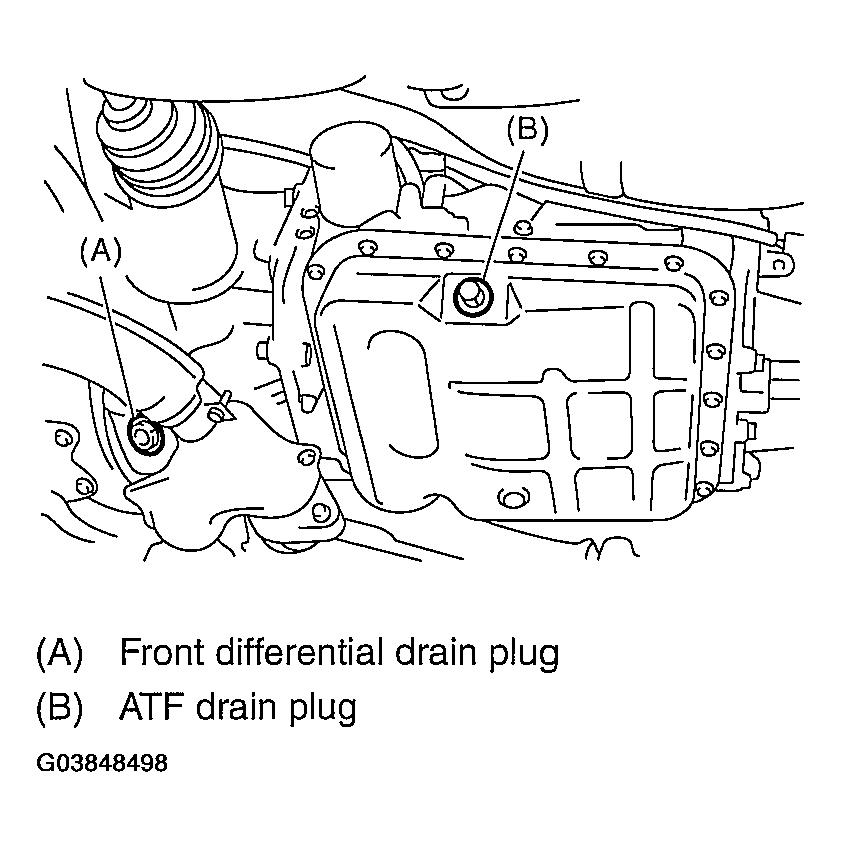

Fig 1: Identifying Front Differential Drain Plug And ATF Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Replace the gasket with a new one, and then tighten the specified torque.
Tightening torque:
- 25 N.m (2.5 kgf-m, 18.1 ft-lb)
Fill ATF up to the middle of the "COLD" side on level gauge by using the gauge hole.
Recommended fluid:
- Dexron III type automatic transmission fluid
Fluid capacity:
- Fill the same amount drained from ATF drain plug hole.
Check the ATF level. < Ref. to INSPECTION , ATF .>

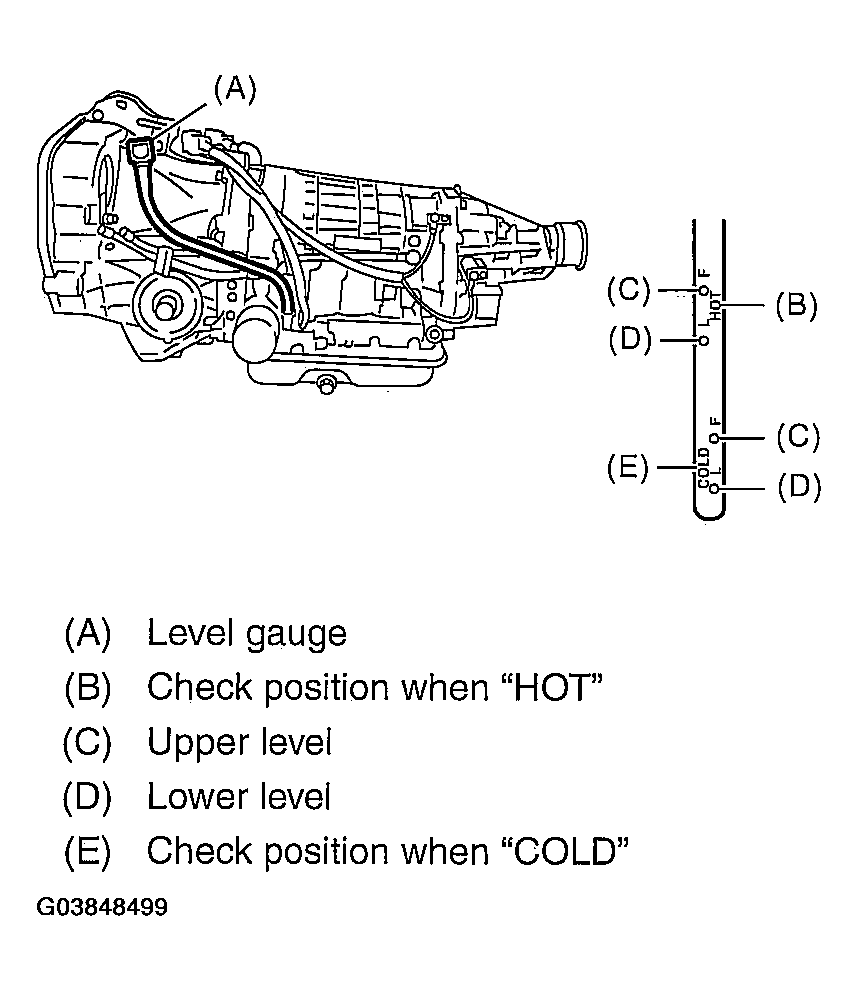

Fig 2: Identifying ATF Level
Courtesy of SUBARU OF AMERICA, INC.
