Operating Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner case and air intake duct (Non-turbo model). < Ref. to REMOVAL , Air Cleaner Case. > < Ref. to REMOVAL , Air Intake Duct. >
Remove the intercooler (Turbo model). < Ref. to REMOVAL , Intercooler. >
Remove the clutch hose from operating cylinder.
NOTE: Cover the hose joint to prevent clutch fluid from flowing out.
- Non-turbo model

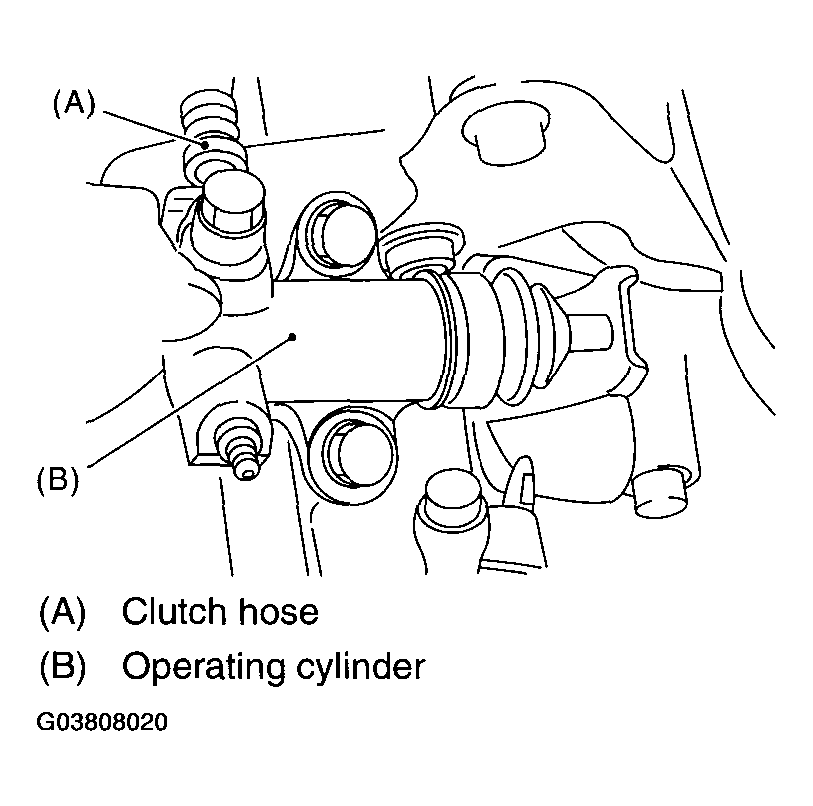

  Fig 1: Locating Clutch Hose And Operating Cylinder (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

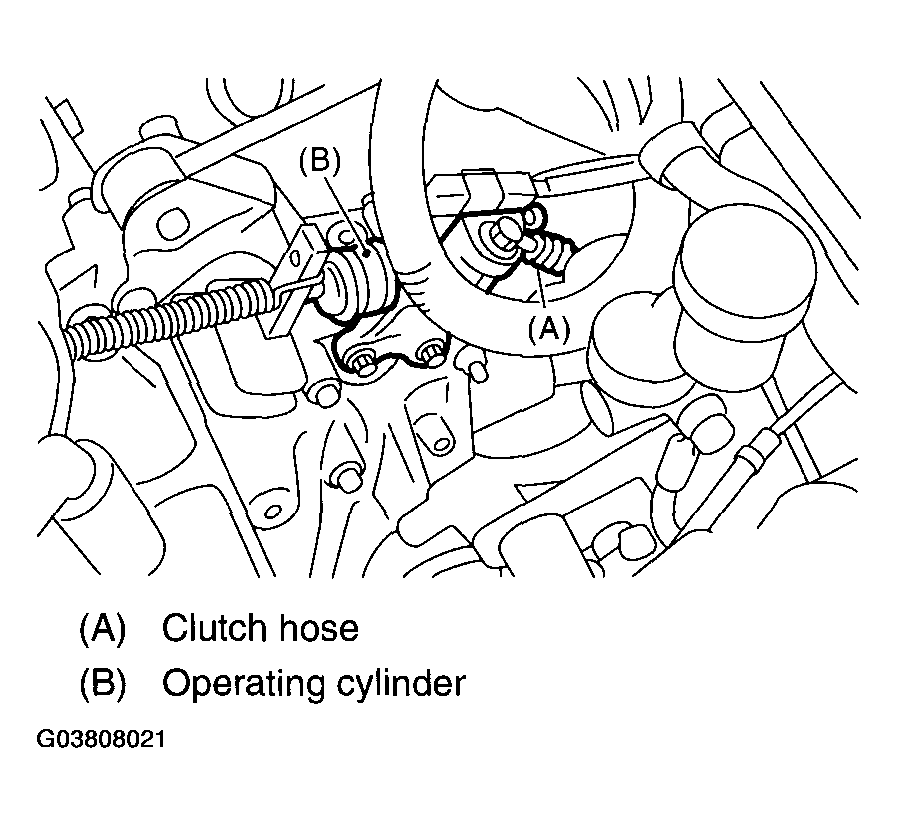

  Fig 2: Locating Clutch Hose And Operating Cylinder (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from transmission.
- Non-turbo model

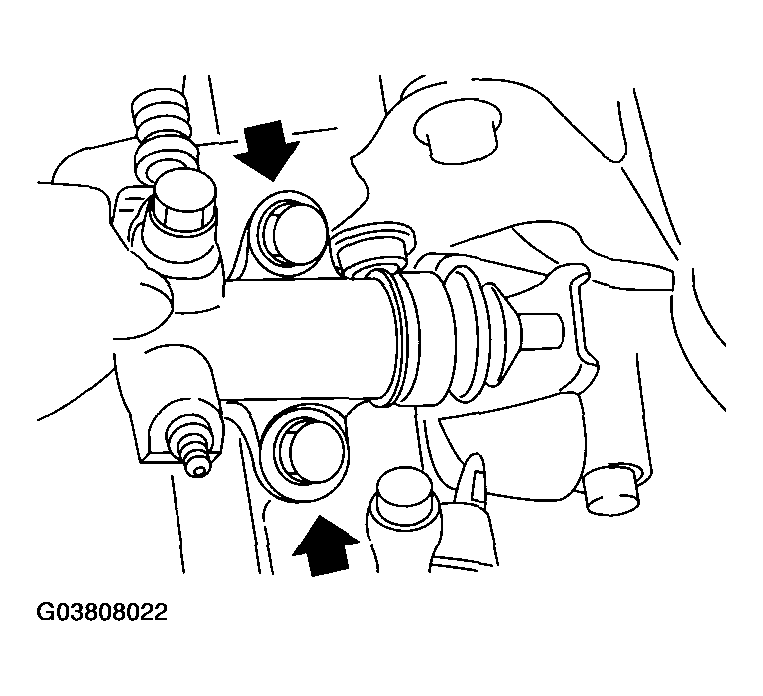

  Fig 3: Removing Operating Cylinder From Transmission (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

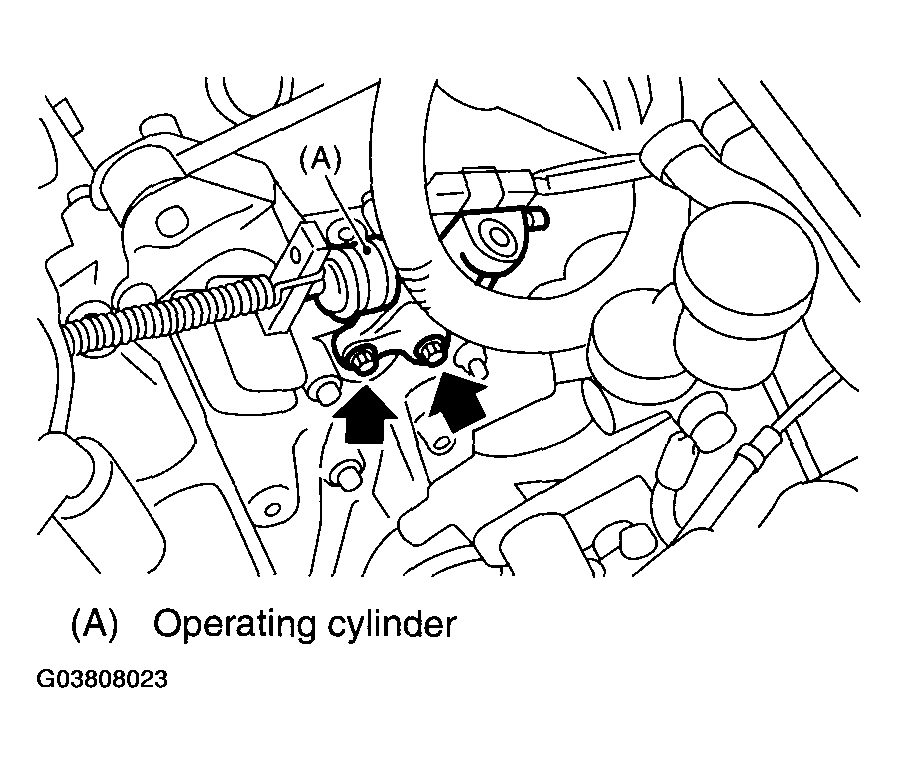

  Fig 4: Removing Operating Cylinder From Transmission (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
