Lubrication (H4SO): General Description: Preparation Tool
PREPARATION TOOL CHART
| ILLUSTRATION | TOOL NUMBER | DESCRIPTION | REMARKS |
|---|---|---|---|

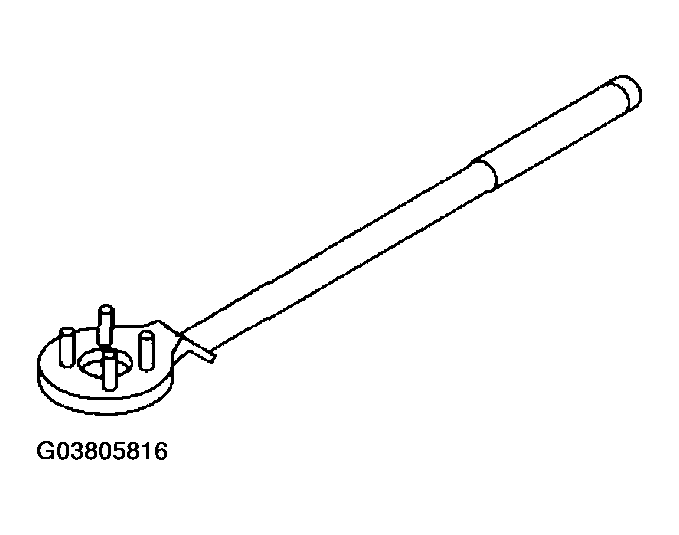

| Fig 1 | 499977100 | CRANK PULLEY WRENCH | Used for stopping rotation of crank pulley when loosening and tightening crank pulley bolt. |

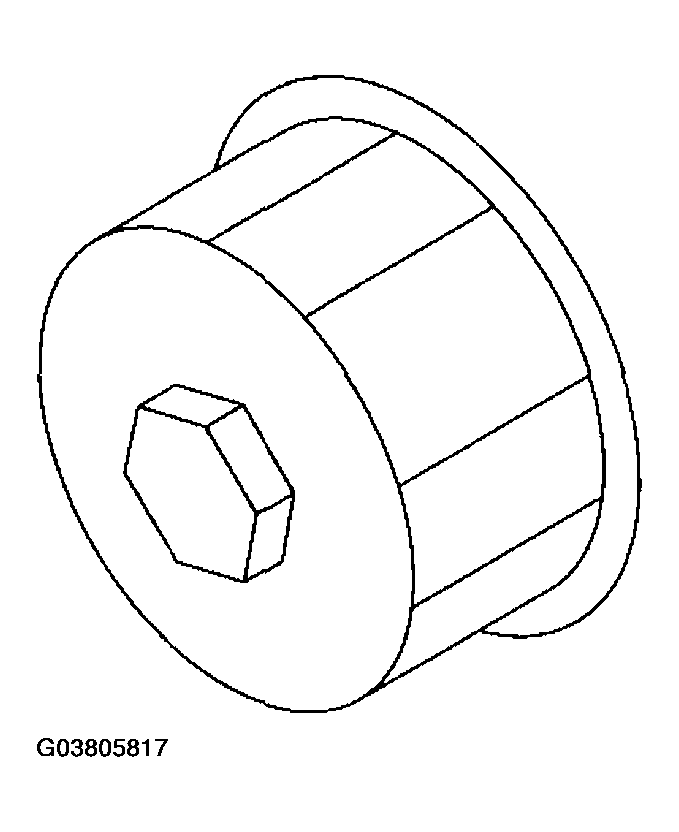

| Fig 2 | 498547000 | OIL FILTER WRENCH | Used for removing and installing oil filter. (Outer diameter: 80 mm (3.15 in)) |

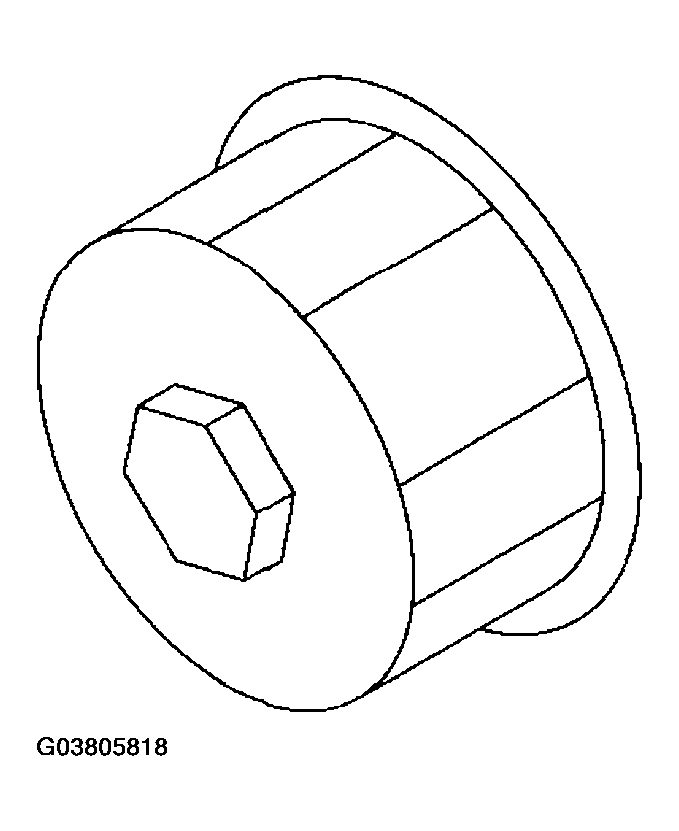

| Fig 3 | 18332AA000 | OIL FILTER WRENCH | Used for removing and installing oil filter. (Outer diameter: 68 mm (2.68 in)) |
| Fig 4 | 18332AA010 | OIL FILTER WRENCH | Used for removing and installing oil filter. (Outer diameter: 65 mm (2.56 in)) |

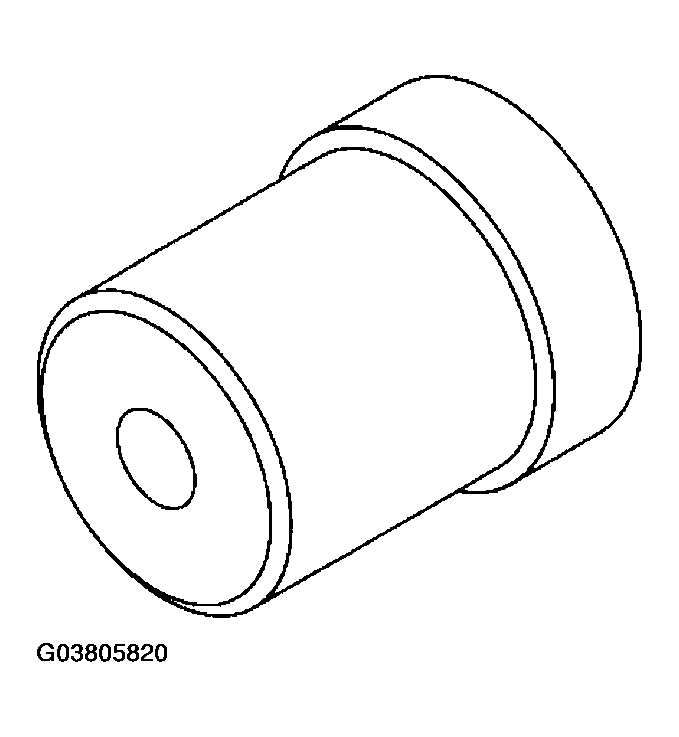

| Fig 5 | 499587100 | OIL SEAL INSTALLER | Used for installing oil pump oil seal. |
