Non-Turbo Model

  1. Install in the reverse order of removal.
  2. Apply a thin coat of engine oil to the new O-ling, and then install it.

    Tightening torque:

    T: 54 N.m (5.5 kgf-m, 40 ft-lb)

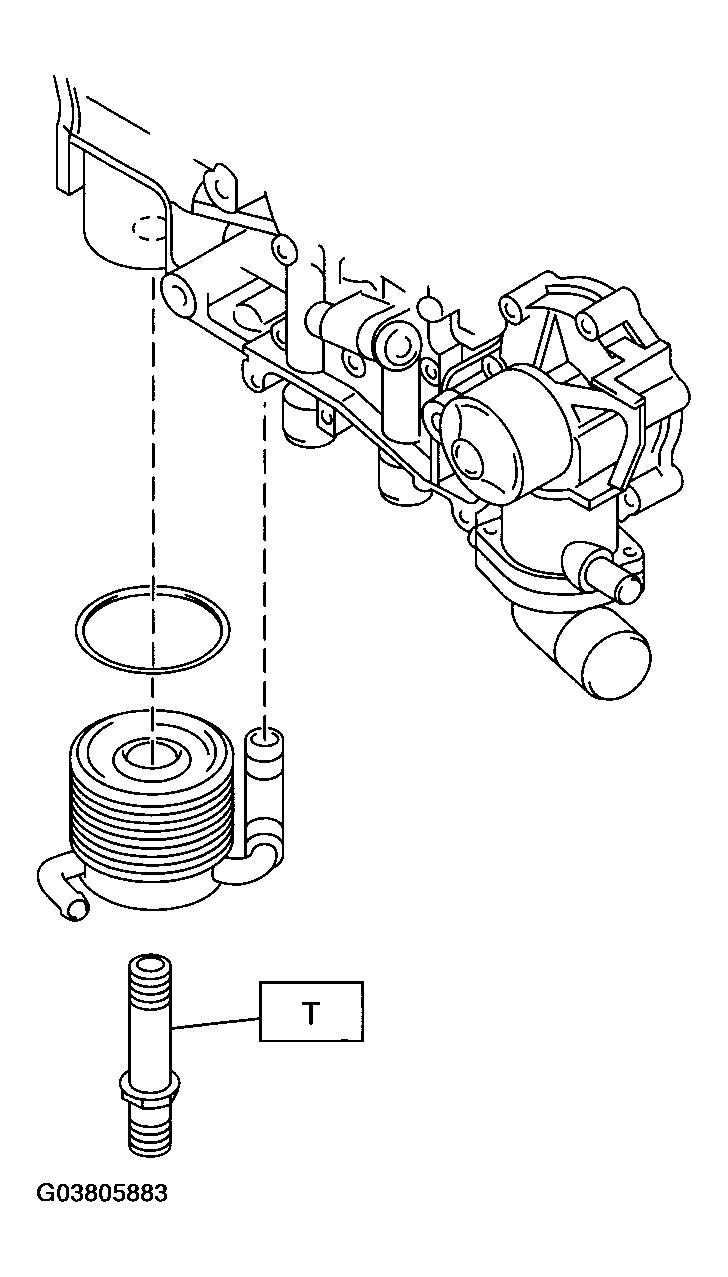

    Fig 1: Installing Adapter (Non-Turbo Model)
    G03805883Courtesy of SUBARU OF AMERICA, INC.
