G Sensor: Removal

  1. Disconnect the ground cable from battery.

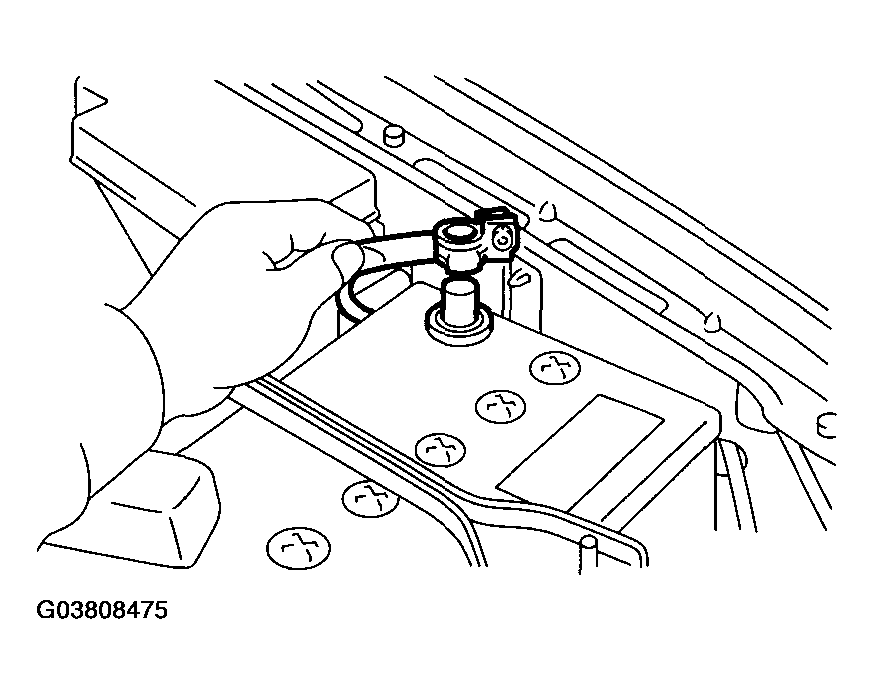

    Fig 1: Disconnecting Ground Cable From Battery
    G03808475Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the console cover.

    < Ref. to REMOVAL , Console Box. >

  3. Disconnect the connector from G sensor.
  4. Remove the G sensor from body.
    CAUTION:
    • Do not drop or bump the G sensor.
    • G sensor and the bracket are integrated into one unit. Therefore, do not disassemble it.

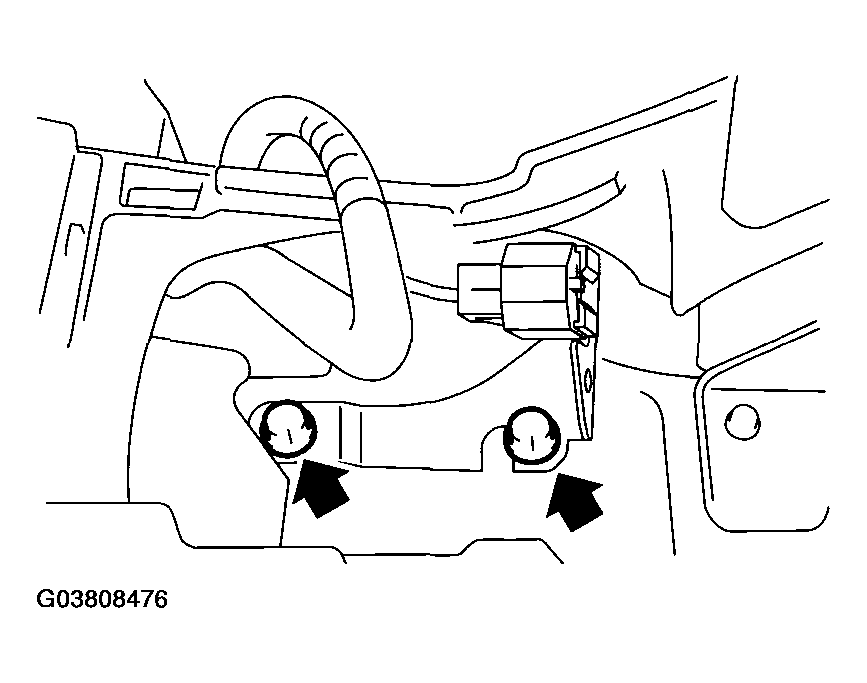

      Fig 2: Disconnecting Connector From G Sensor
      G03808476Courtesy of SUBARU OF AMERICA, INC.
