Control Module I/O Signal: Wiring Diagram

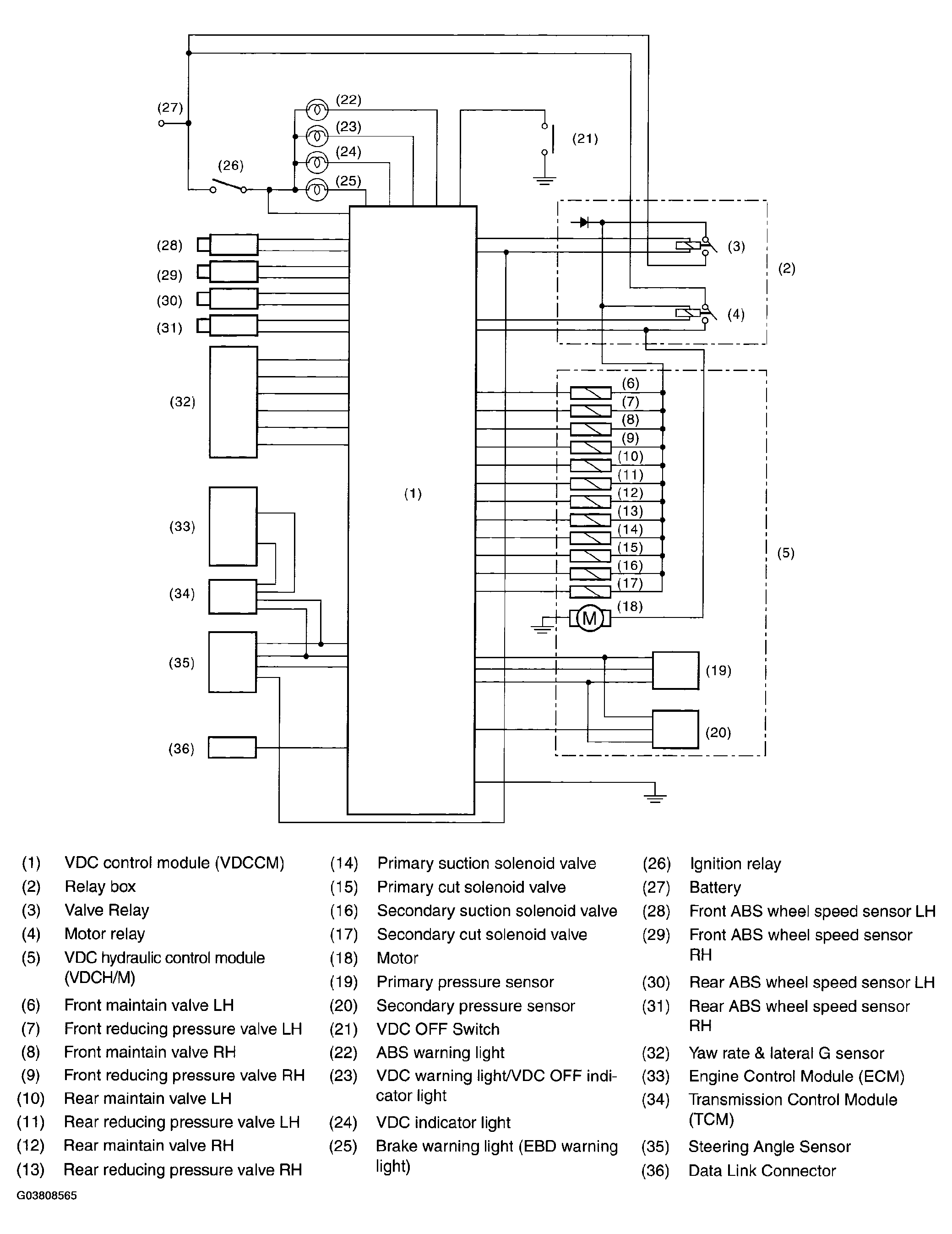

Fig 1: Identifying Control Module I/O Signal Wiring Diagram

G03808565

Courtesy of SUBARU OF AMERICA, INC.
