Center Structure

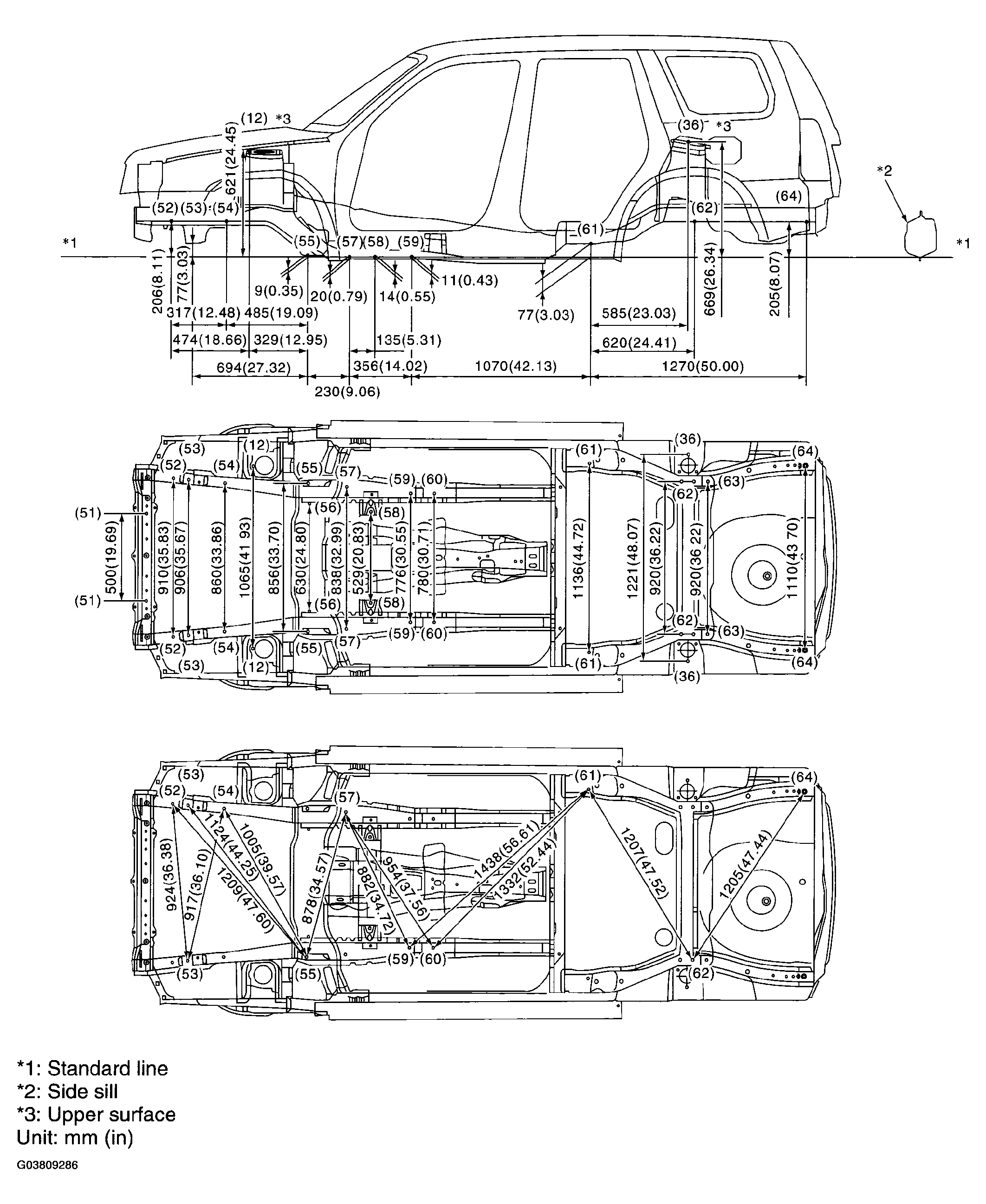

Fig 1: Identifying Center Structure Dimension

G03809286

Courtesy of SUBARU OF AMERICA, INC.
