Rear Gate Lock

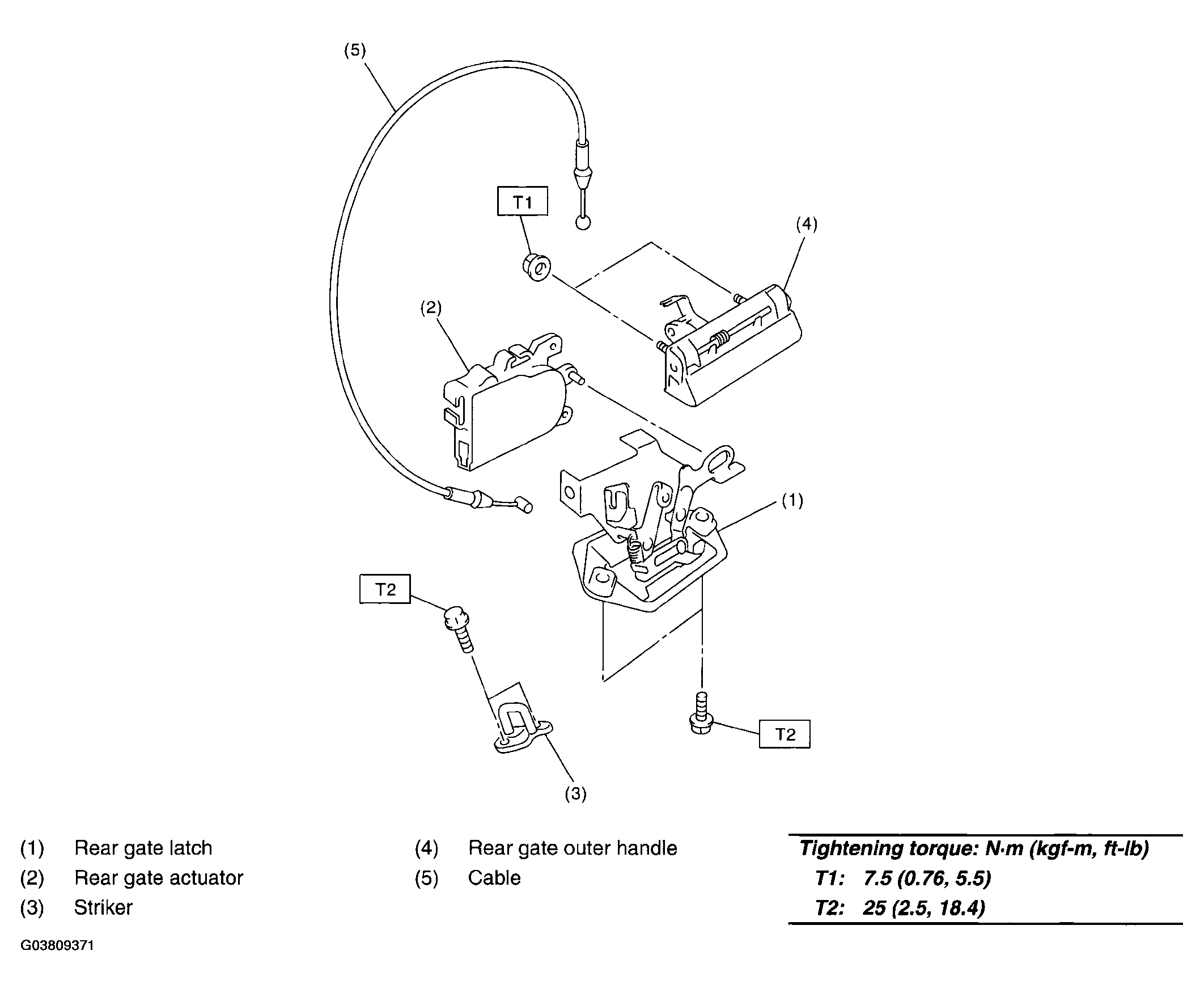

Fig 1: Identifying Rear Gate Lock Components

G03809371

Courtesy of SUBARU OF AMERICA, INC.
