Door Lock Assembly

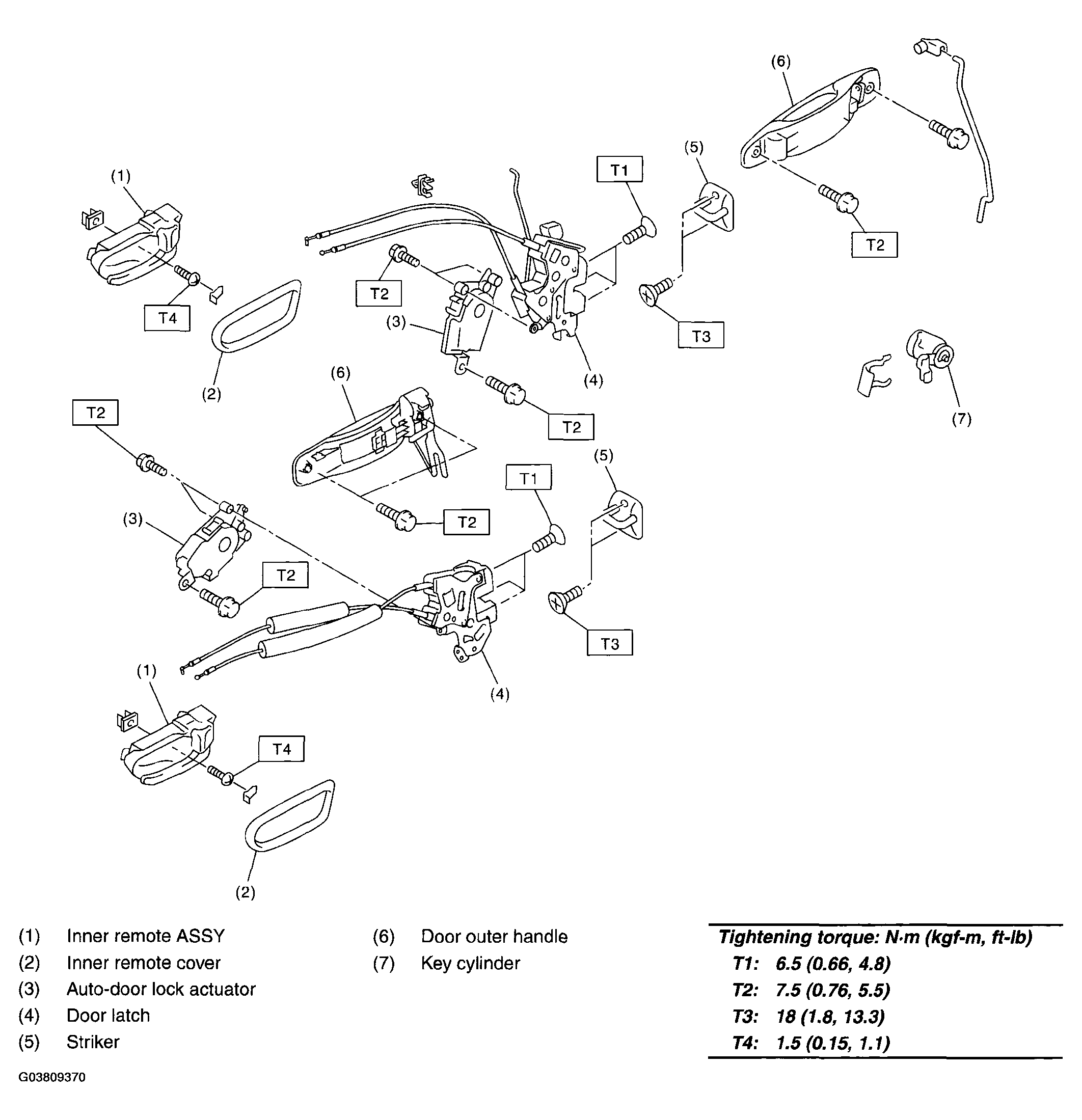

Fig 1: Identifying Door Lock Assembly Components

G03809370

Courtesy of SUBARU OF AMERICA, INC.
