Body Integrated Unit: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Assembly. >
  3. Remove the nut, then remove the body integrated unit while disconnecting the connector.

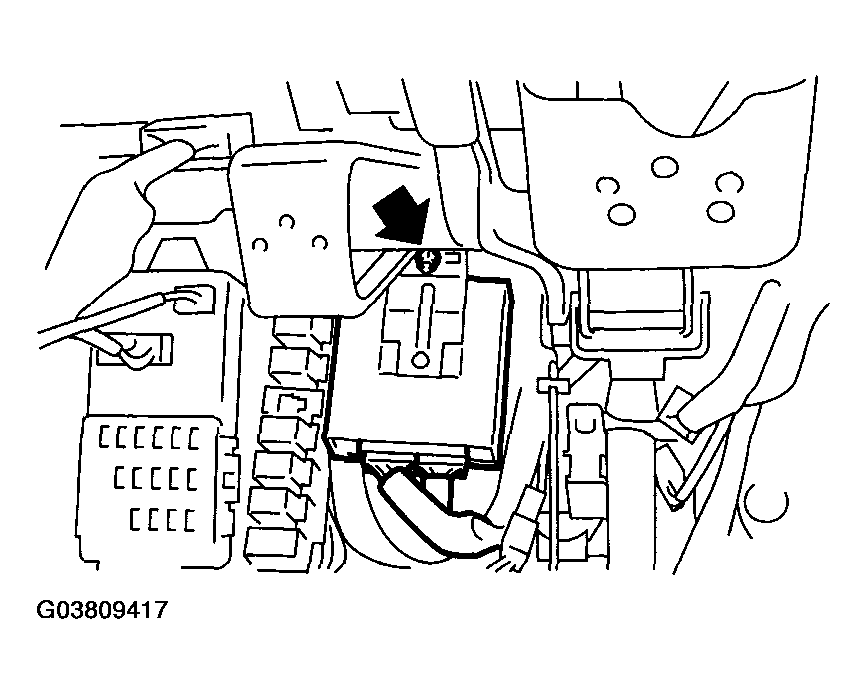

    Fig 1: Removing The Nut And Body Integrated Unit While Disconnecting The Connector
    G03809417Courtesy of SUBARU OF AMERICA, INC.
