Oil Pump: Removal

Disconnect the ground cable from battery.
Remove the pulley belt cover.
Loosen the lock bolt and slider bolt, and then remove the power steering pump drive V-belt.

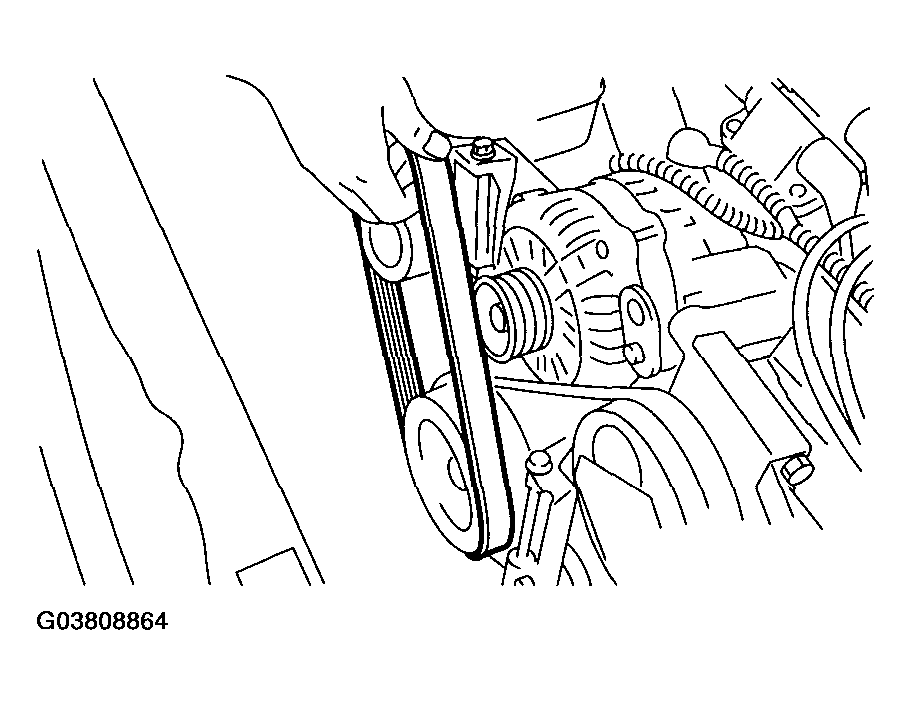

Fig 1: Loosening Lock Bolt And Slider Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from power steering pump switch.
Disconnect the pipe C and suction hose from oil pump.
CAUTION:
- Do not allow fluid from the hose end to come into contact with pulley belt.
- To prevent foreign matter from entering the hose, cover the open ends of them with a clean cloth.

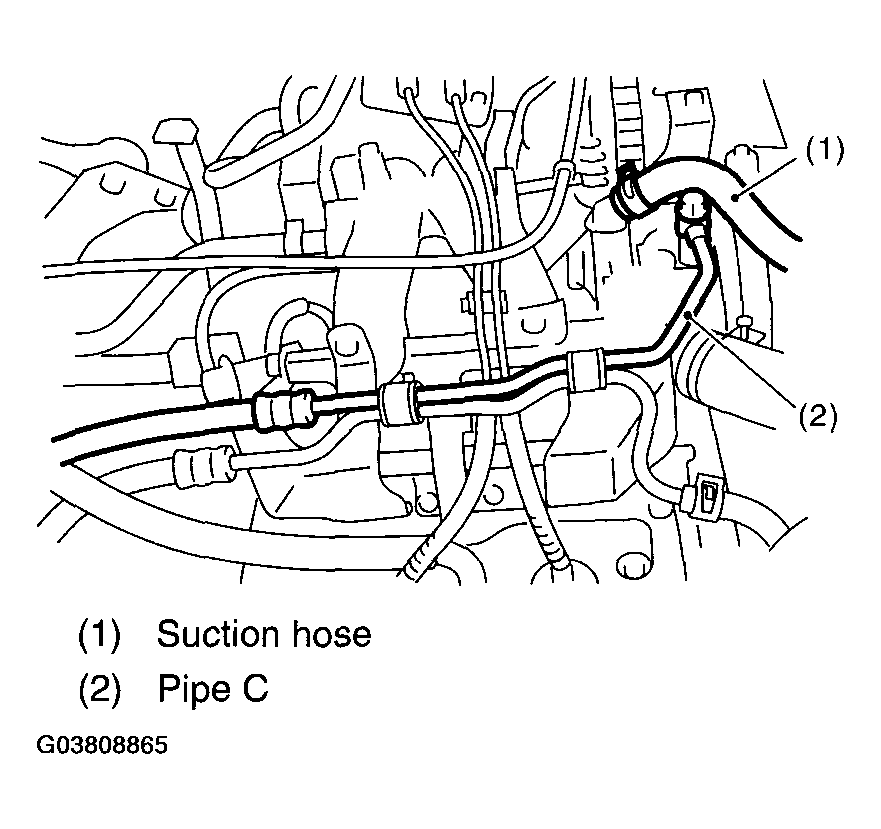

  Fig 2: Removing Suction Hose
  Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install power steering pump bracket.

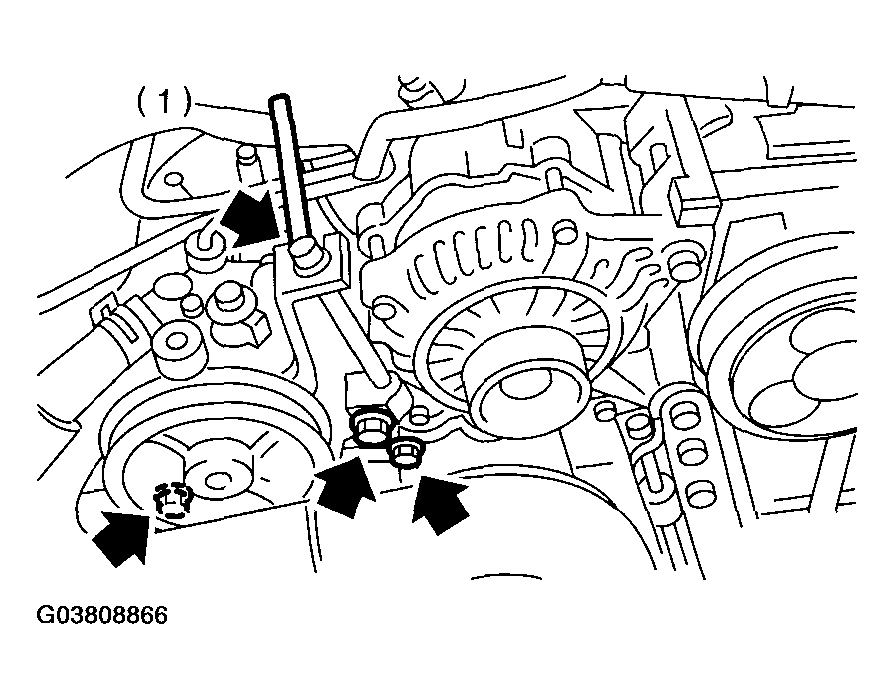

Fig 3: Removing Bolt
Courtesy of SUBARU OF AMERICA, INC.

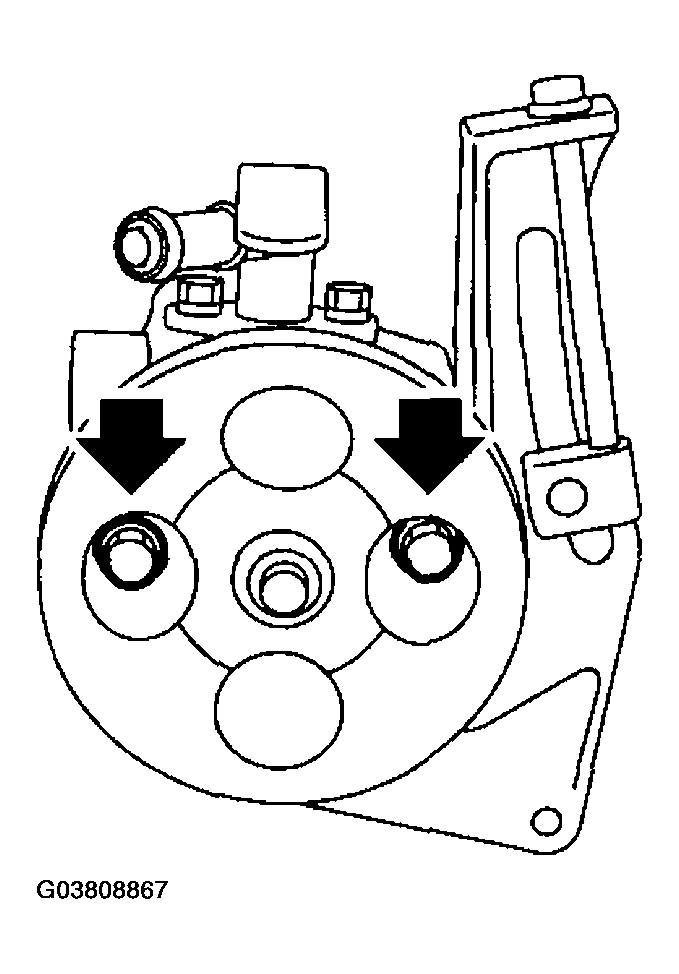

Place the oil pump bracket in a vise, remove the two bolts from front side of oil pump.
CAUTION: Do not place the oil pump bracket directly in the vise; use soft pads and hold oil pump lightly to protect the pump.

Fig 4: Removing Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt from the rear side of oil pump.

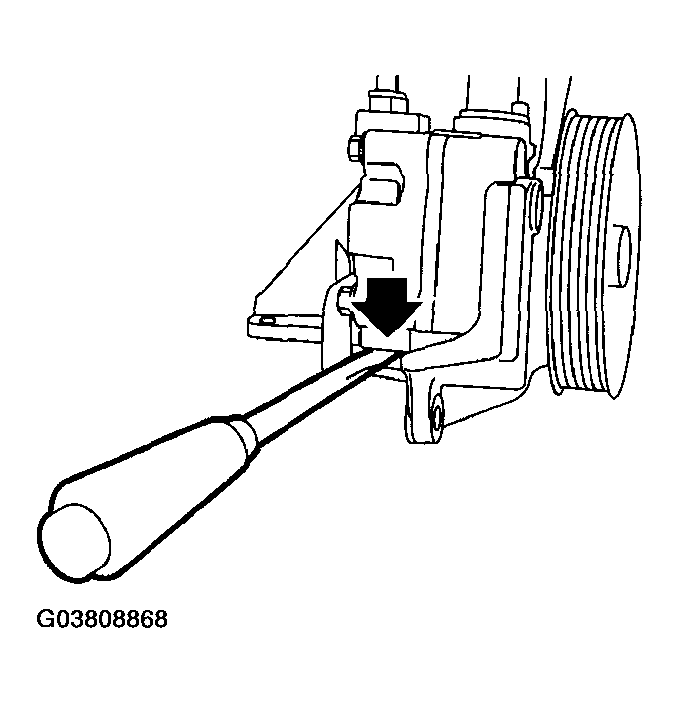

Disassemble the oil pump and bracket by inserting a flat tip screwdriver as shown in the figure.

Fig 5: Removing Bolt From Rear Side Of Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
