Security Horn: Inspection

Connect the battery to the security horn terminal and case ground and make sure the horn sounds properly.

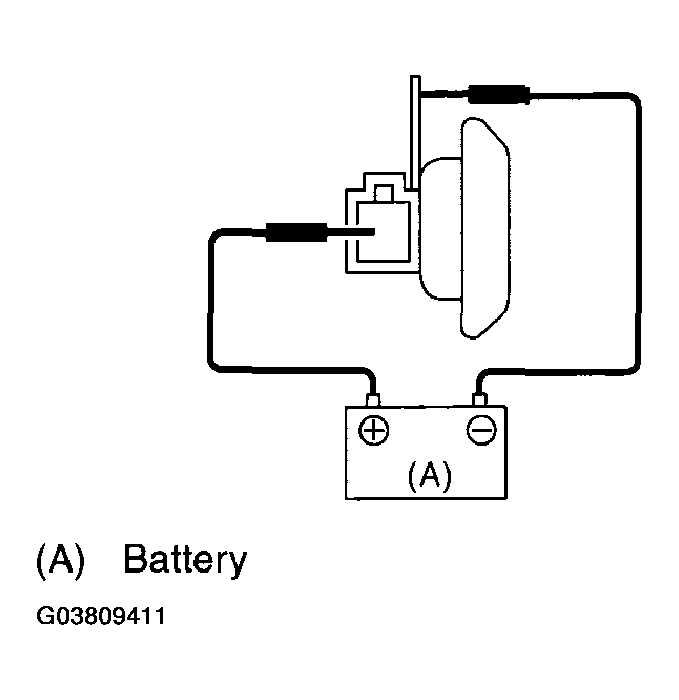

Fig 1: Connecting The Battery To The Security Horn Terminal And Case Ground
G03809411Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the security horn.
