Rear Inner Remote: Removal

  1. Remove the rear door trim. < Ref. to REMOVAL , Rear Door Trim. >
  2. Remove the sealing cover. < Ref. to REMOVAL , Rear Sealing Cover. >
  3. Remove a screw and two cables.
  4. Remove the inner remote.

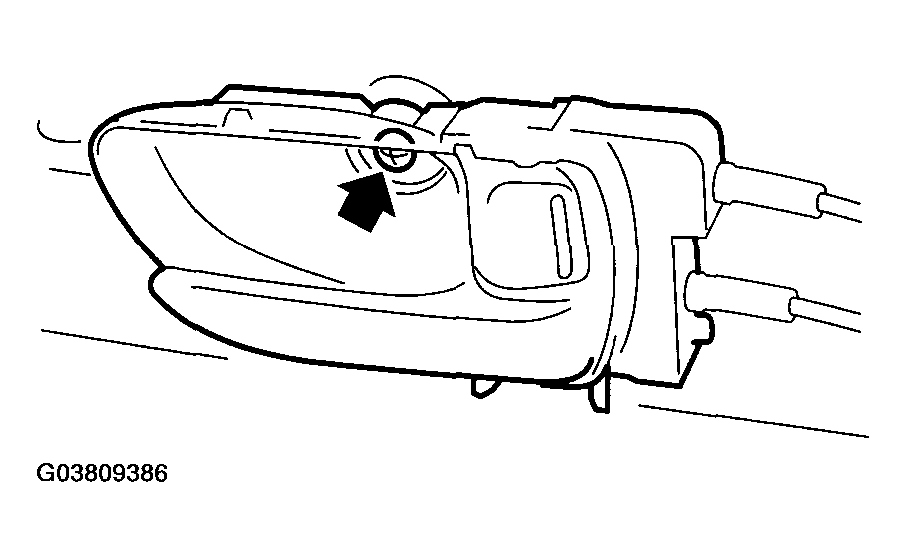

    Fig 1: Removing Screw And Two Cables
    G03809386Courtesy of SUBARU OF AMERICA, INC.
