Front Outer Handle: Removal

  1. Remove the door trim. < Ref. to REMOVAL , Front Door Trim. >
    CAUTION: Do not use excessive force to remove the door panel. This will deform it.
  2. Remove the sealing cover. < Ref. to REMOVAL , Front Sealing Cover. >
  3. Remove the front inner remote. < Ref. to REMOVAL , Front Inner Remote. >
  4. Disconnect the cable from cable holder to make cable moving freely.
  5. Remove two bolts and rod clamp, and then remove the front outer handle.
NOTE: The rear bolt can be removed from service hole (A) of inner panel by adjusting the glass position.

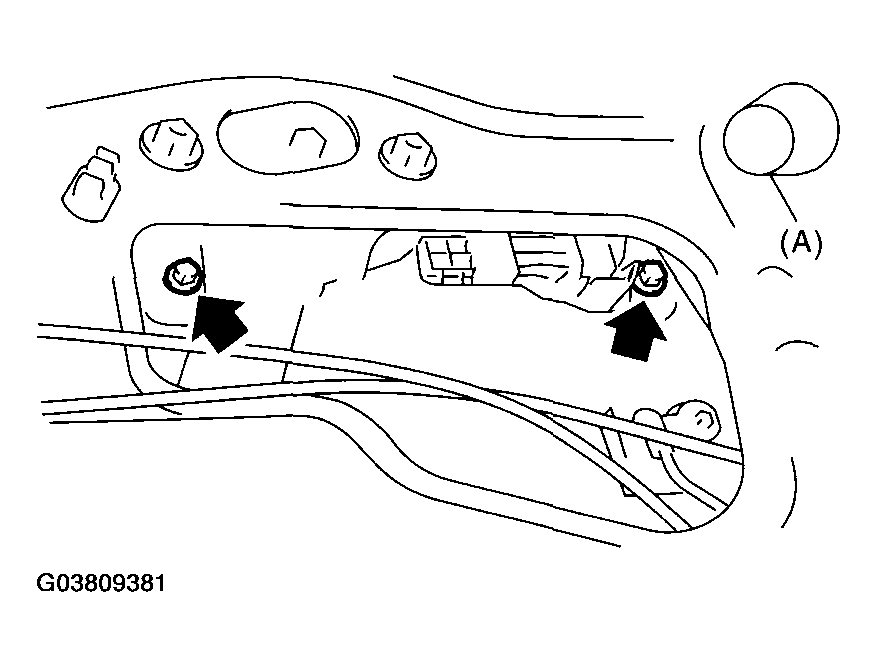

Fig 1: Removing Two Bolts And Rod Clamp, And Front Outer Handle
G03809381Courtesy of SUBARU OF AMERICA, INC.
