Compulsory Valve Operation Check Mode: Operation

  1. Prepare the Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL , General Description. >

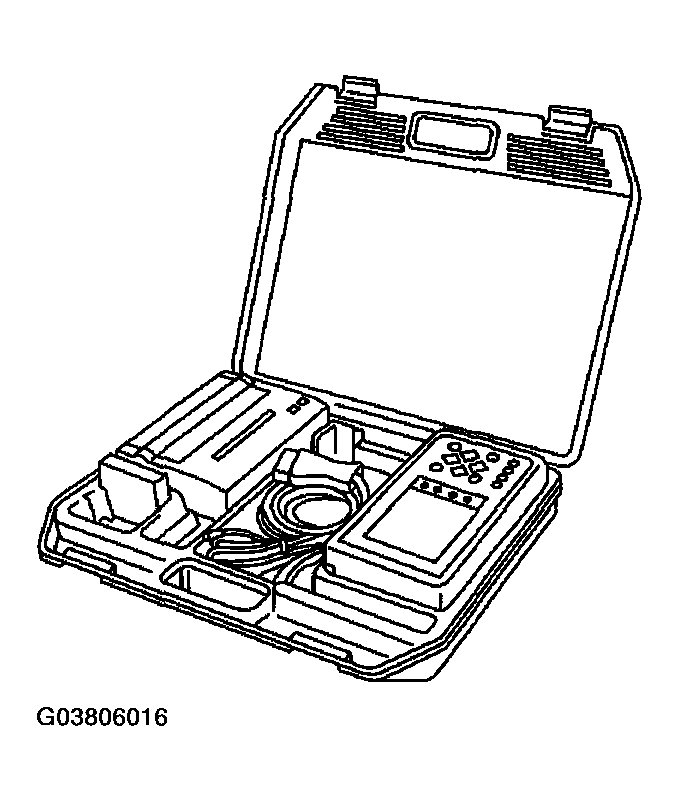

    Fig 1: Subaru Select Monitor Kit
    G03806016Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the diagnosis cable to Subaru Select Monitor.
  3. Insert the cartridge into Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Description. >
    Fig 2: Inserting Cartridge Into Subaru Select Monitor
    G03806017Courtesy of SUBARU OF AMERICA, INC.

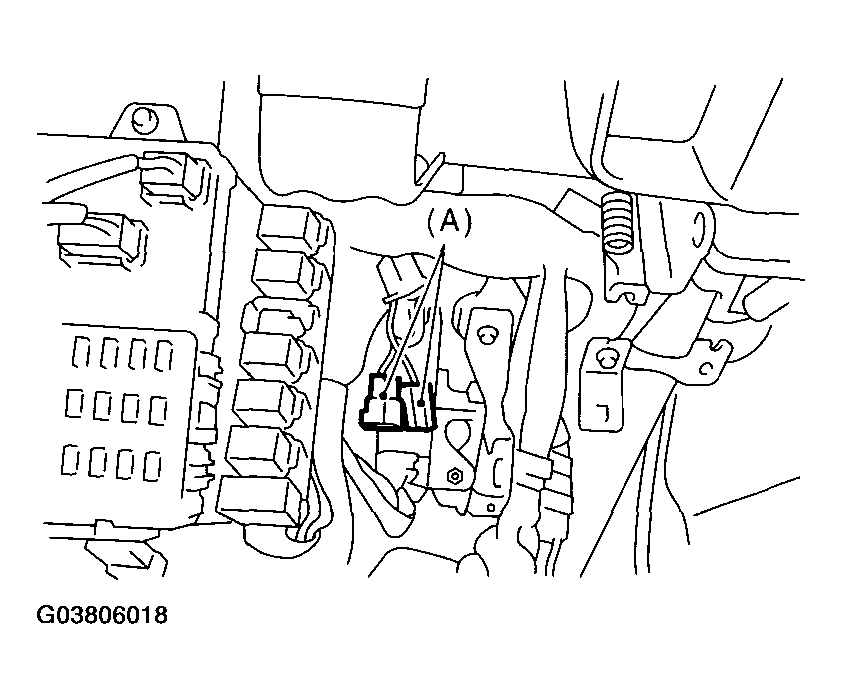

  4. Connect the test mode connector (A) at the lower portion of instrument panel (on driver's side).
    Fig 3: Connecting Test Mode Connector At Lower Portion Of Instrument Panel (On Driver's Side)
    G03806018Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the Subaru Select Monitor to data link connector.
    1. Data link connector is located in the lower portion of instrument panel (on driver's side).
      Fig 4: Connecting Subaru Select Monitor To Data Link Connector
      G03806019Courtesy of SUBARU OF AMERICA, INC.
    2. Connect the diagnosis cable to data link connector.
      CAUTION: Do not connect scan tools except for Subaru Select Monitor and OBD-II general scan tool.
  6. Turn the ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.
    Fig 5: Identifying Power Switch
    G03806020Courtesy of SUBARU OF AMERICA, INC.
  7. On << Main Menu >> display screen, select the {2. Each System Check} and press the [YES] key.
  8. On << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
  9. Press the [YES] key after the information of engine type is displayed.
  10. On << Engine Diagnosis >> display screen, select the {System Operation Check Mode} and press the [YES] key.
  11. On << System Operation Check Mode >> display screen, select the {Actuator ON/OFF Operation} and press the [YES] key.
  12. Select the desired compulsory actuator on the << Actuator ON/OFF Operation >> display screen and press the [YES] key.
  13. Pressing the [NO] key completes the compulsory valve operation check mode. The display will then return to the << Actuator ON/OFF Operation >> screen.
SUPPORT DATA LIST

Contents Display
Compulsory fuel pump relay operation check Fuel Pump Relay
Compulsory radiator fan relay operation check Radiator Fan Relay
Compulsory air conditioning relay operation check A/C Compressor Relay
Compulsory purge control solenoid valve operation check CPC Solenoid Valve
Compulsory pressure control solenoid valve operation check PCV Solenoid Valve
Compulsory air assist vent control solenoid valve operation check Vent Control Solenoid Valve
Compulsory fuel tank sensor control solenoid valve operation check Fuel Tank Sensor Control Valve
NOTE:
  • The following parts will be displayed but not functional.
    PART DISPLAYED

    Display
    EGR Solenoid Valve
    ASV Solenoid Valve
    FICD Solenoid
    Pressure Switching Sol. 1
    Pressure Switching Sol. 2
    Turbocharger Wastegate Solenoid
    AAI Solenoid
    Emission-bypass valve permission flag
  • For detailed operation procedure, refer to SUBARU SELECT MONITOR OPERATION MANUAL.
